Mounting instruction for the installer
en
OpDAT REGplus
8178/899828
METZ CONNECT GmbH
Im Tal 2 | 78176 Blumberg | Germany | Phone +49 7702 533-0 | Fax +49 7702 533-433
Mounting instruction see www.metz-connect.com
D
F
G
E

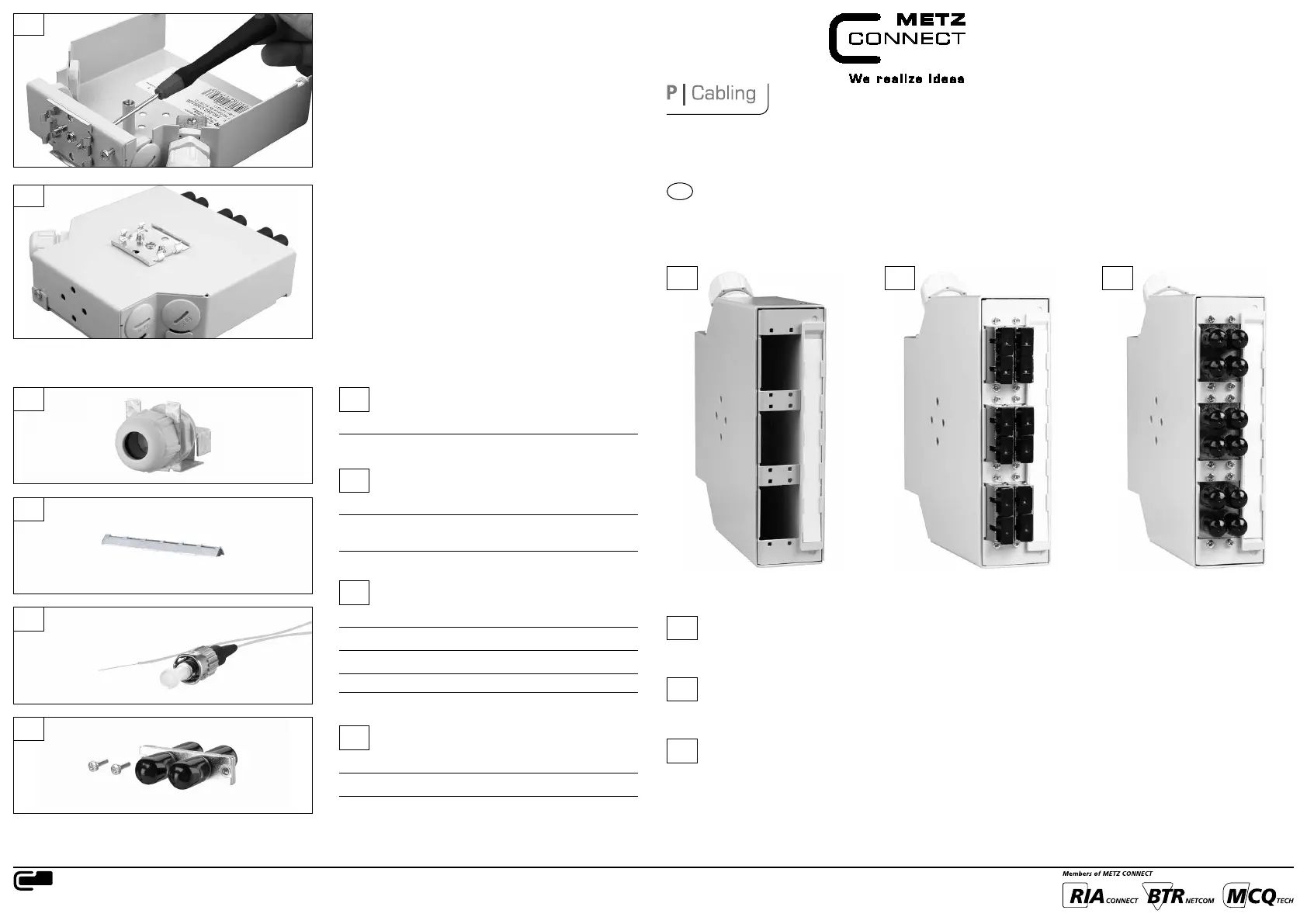

Other mounting positions
Figure 9
Unscrew the rail fixation.
Figure 10
Screw the rail fixation on the side wall of the housing for a
horizontal or vertical mounting to the rail.
9
10
A B C
Unequipped with splice tray
150240000010E with crimp splice holder
150240000010S with shrink splice holder
A
ST/SC-D fully/partly equipped
150240C2xx10E with crimp splice holder
150240C2xx10S with shrink splice holder
B
ST/SC-D fully/partly equipped
150240C3xx10E with crimp splice holder
150240C3xx10S with shrink splice holder
C
OpDAT REG Strain Relief
Part number 150240M20Z-E
Packing unit 1 piece
D
Accessories
Crimp Splice Protection
Part number 15090401-E
Packing unit 12 pieces
Part number 15090401-I
Packing unit 150 pieces
E
OpDAT Pigtails SC
9/125 µm (OS2) Part number 150Q1CO0020E
50/125 µm (OM2) Part number 150B1CO0020E
50/125 µm (OM3) Part number 150M1CO0020E
50/125 µm (OM4) Part number 150N1CO0020E
Packing unit 12 pieces
F
OpDAT ST-D Adapter
Ph-Br MM Part number 15090041-I
Ceramic SM/MM Part number 150900D1-I
Packing unit 12 pieces
G
