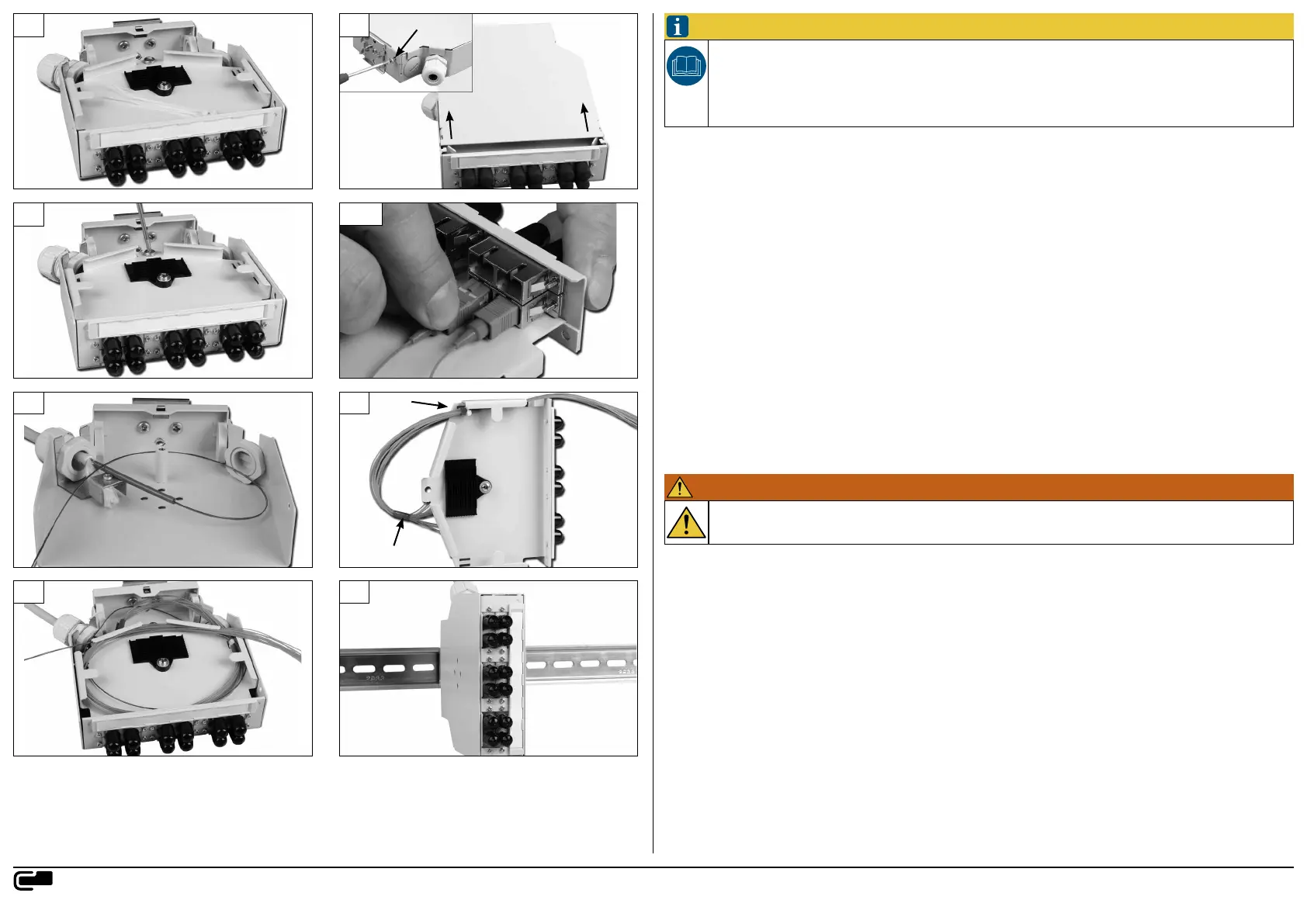

Content of packing unit
Figure 1
• 1 OpDAT REGplus equipped with SC-D or SC/ST-D adapters or unequipped, depending on part number
• 4 cable ties
• 1 mounted M20 cable gland with Kevlar fixation
Assembly
Figure 2
To open the splice tray unscrew the cross head screw, push the cover back and remove it.
Figure 3
To remove the splice tray, unscrew the cross head screw and take the splice tray out of the housing.
Figure 4
Use as splice distributor
Insert the SC pigtails with plug into the adapters.
ST variant: SC inside, ST outside.
For pre-assembled cables
Insert the SC plugs into the adapters - continue with figure 7 (without splicing).
Figure 5
Strip the insulation from the fiber optic cable by about 1.0 to 1.2 m (leave about 5 cm of the loose tube). Fix Kevlar or strain relief
element at the strain relief. Cable feed to the housing from top or bottom (straight or inclined). A second M20 cable gland with
strain relief is available as accessory.
Figure 6
Wrap insulating tape (not included in delivery) around the pigtails in positions Ê and Ë. Secure the pigtails to the splice tray in posi-
tion Ê with one of the cable ties.
Wrap also insulating tape around the fibers of the main cable and secure them at the opposite side of the splice tray with one of the
cable ties.
Figure 7
Splice and store the fiber reserve in the splice tray.
Figure 8
Snap the OpDAT REGplus onto the rail TH35 (standard mounting).
METZ CONNECT GmbH
Im Tal 2 | 78176 Blumberg | Deutschland | Tel. +49 7702 533-0 | Fax +49 7702 533-433
Montageanleitung siehe www.metz-connect.com
In the unequipped variant use threaded M2 screws to mount adapters with press-fitted threads (recessed mounting
flange) or use threaded M2 screws and nuts to mount adapters without press-fitted threads (projecting mounting
flange).
For pre-assembled cables with ST plugs, the use of an unequipped variant of the OpDAT REGplus together with
individual ST-D adapters (available as accessories) is recommended. In this case insert the plug first into the adapter and
then mount the adapter to the housing.
General information
3
2
Ê
4
1
8
5
7
6
Ë
Ê
ATTENTION
Do not fix the loose tube under the strain relief!
