MTK-2D TRANSITION KIT: M3D/M3D-SUB TO M2D

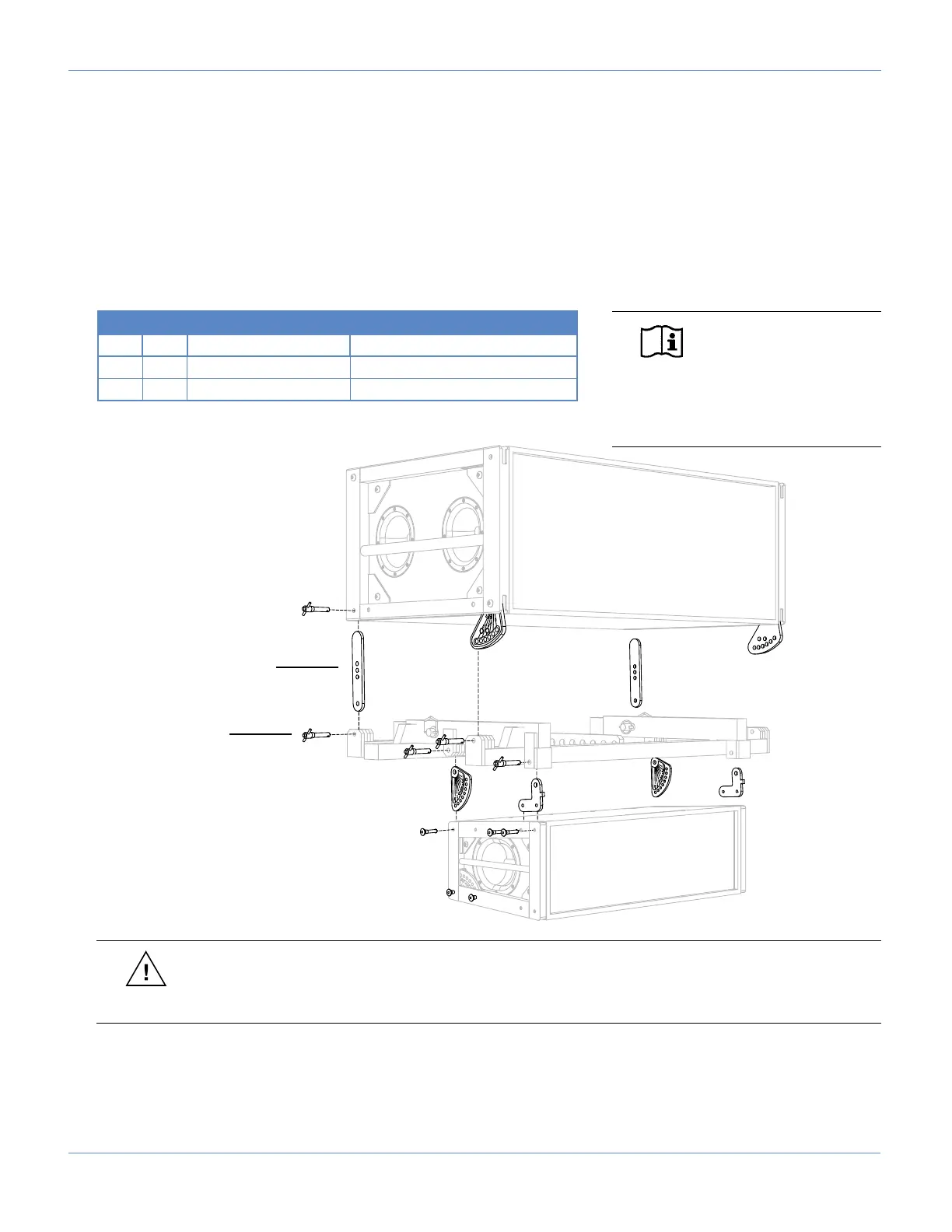

Using Meyer Sound’s MTK-2D transition kit, the MG-2D multipurpose grid can be attached underneath an M3D/M3D-
Sub cabinet. A downfill array of M2D loudspeakers can then be flown from the MG-2D grid as required using the full
capabilities and flexibility of the MG-2D grid. The MTK-2D kit contains the links and pins necessary for the transition
between an M3D/M3D-Sub loudspeaker and the MG-2D grid.
For more information on the MTK-2D transition kit and the MG-2D grid, please consult Meyer Sound’s “MG-2D
Assembly Guide.”
CAUTION: When using combined arrays, the total weight of the array should always be calculated and
be within specifications before flying the array. Do not exceed the MG-3D/M grid's load ratings listed in
Chapters 2 and 3 of this assembly guide.
List of Contents: MTK-2D Transition Link Kit (Part 40.112.058.01)
Qty Part Number Description
A
2 61.112.029.01 MG-2D Transition Link
B
4 134.007 1/2" x 2.5" Quick Release Pin (QRP)
NOTE: The approximate
combined weight of the
MTK-2D transition kit and the
MG-2D grid is 227 lbs (102.97
kg). The M2D loudspeaker
weighs 114 lbs (52.62 kg).
A
B
