31
APPENDIX C: WEATHER PROTECTION
UP-4XP LOUDSPEAKERS WITH WEATHER
PROTECTION
A weather-protected version of the UP-4XP with a sealed
EN3 connector is available for fixed, outdoor installations.
The weather-protected UP-4XP differs from the normal
model in that the orientation of the loudspeaker is flipped
and its rear panel connector are located at the top instead of
the bottom.
Installing Weather-Protected UP-4XP
Loudspeakers
The weather-protected UP-4XP can be mounted vertically or
horizontally but must be mounted with a 0-degree tilt, or
preferably with downtilt, to ensure the loudspeaker’s elec-
tronics are shielded from the elements.

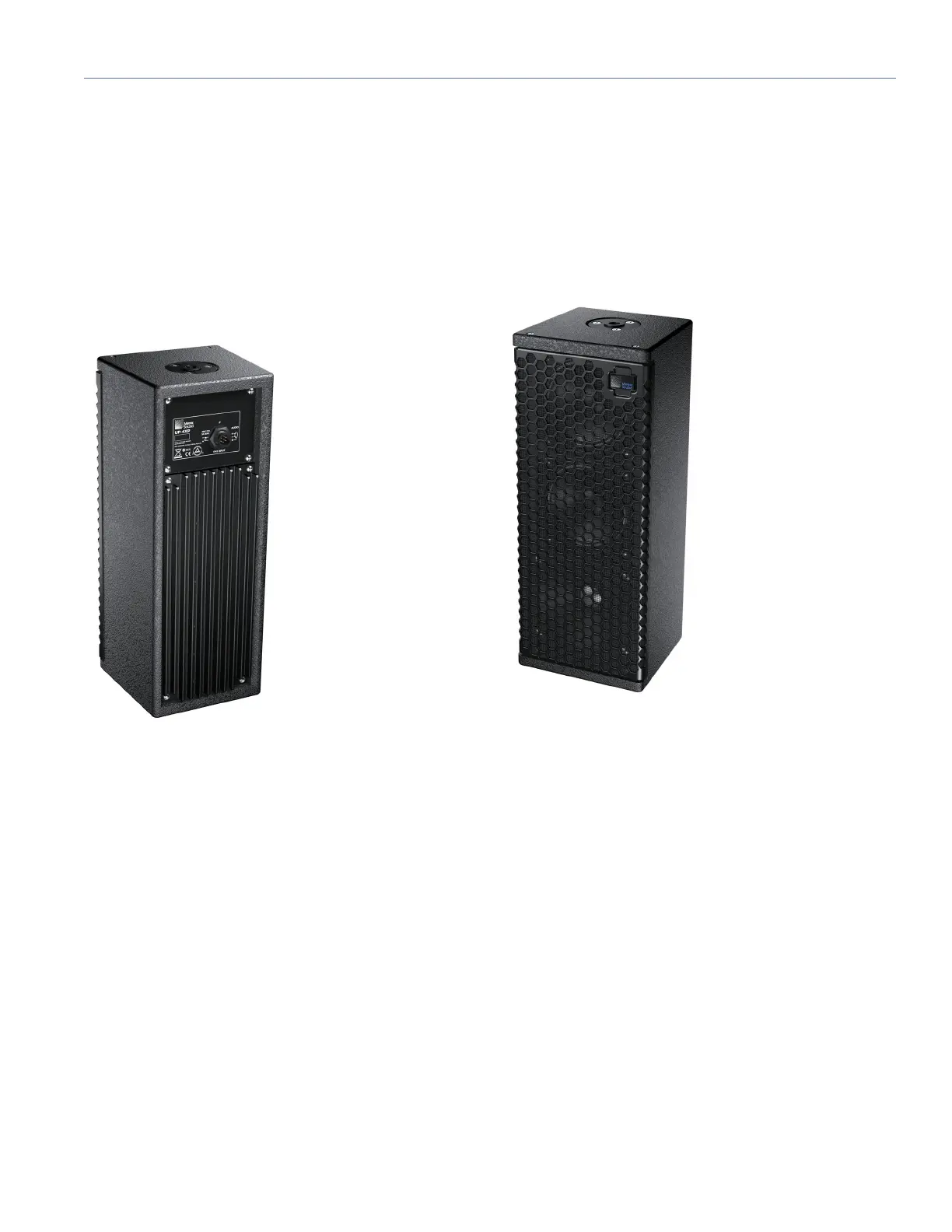

Weather-Protected UP-4XP, Rear View
Weather-Protected UP-4XP, Front View
