Meyer Sound UPA-1C User Manual

Operating Instructions
Meyer Sound Laboratories, Inc.
2832 San Pablo Avenue
Berkeley, CA 94702
UPA-1C
Loudspeaker
Specifications Acoustical–UPA-1C/M-1A System
Frequency Response
1
80 Hz to 18 kHz +4dB
-6 dB at 60 Hz and 20 kHz
Maximum SPL
2
with amplifier rated at: 250W/8 ohms/ch 60W/8 ohms/ch
Continuous 125dB 120dB
Peak 132dB 125dB
HF Coverage
Horizontal 80 degrees
Vertical 60 degrees
UPA-1C Loudspeaker
Driven Complement
Low Frequency Driver MS-12
High Frequency Driver MS-1401B
High Frequency Horn Modified radial with foam lens
HF Network Y-1PD
Function DC blocking and damped band-elimination filter
Enclosure 0.8 cu. ft. vented, multi-ply
Finnish Birch plywood
Finish Black textured, weather protected (optional)
Physical Dimensions 14
1
/2"W x 22
3
/8"H x 14
1
/2"D
Weight 67 lbs. (30 kg)
Protective Grill Perforated steel screen,
charcoal-grey foam covering
Connector EP-4 (male), EP-5 (male, Europe only)
Rigging (optional) Aircraft pan fittings, or
3
/8"-16 or M10 x 1.5 nut plate
Coverage Angle
1
Vertical 60°
Horizontal 80°
Maximum SPL @ 1meter
Continuous 125 dB
Peak 135 dB
Total Amplifier Power 450 watts

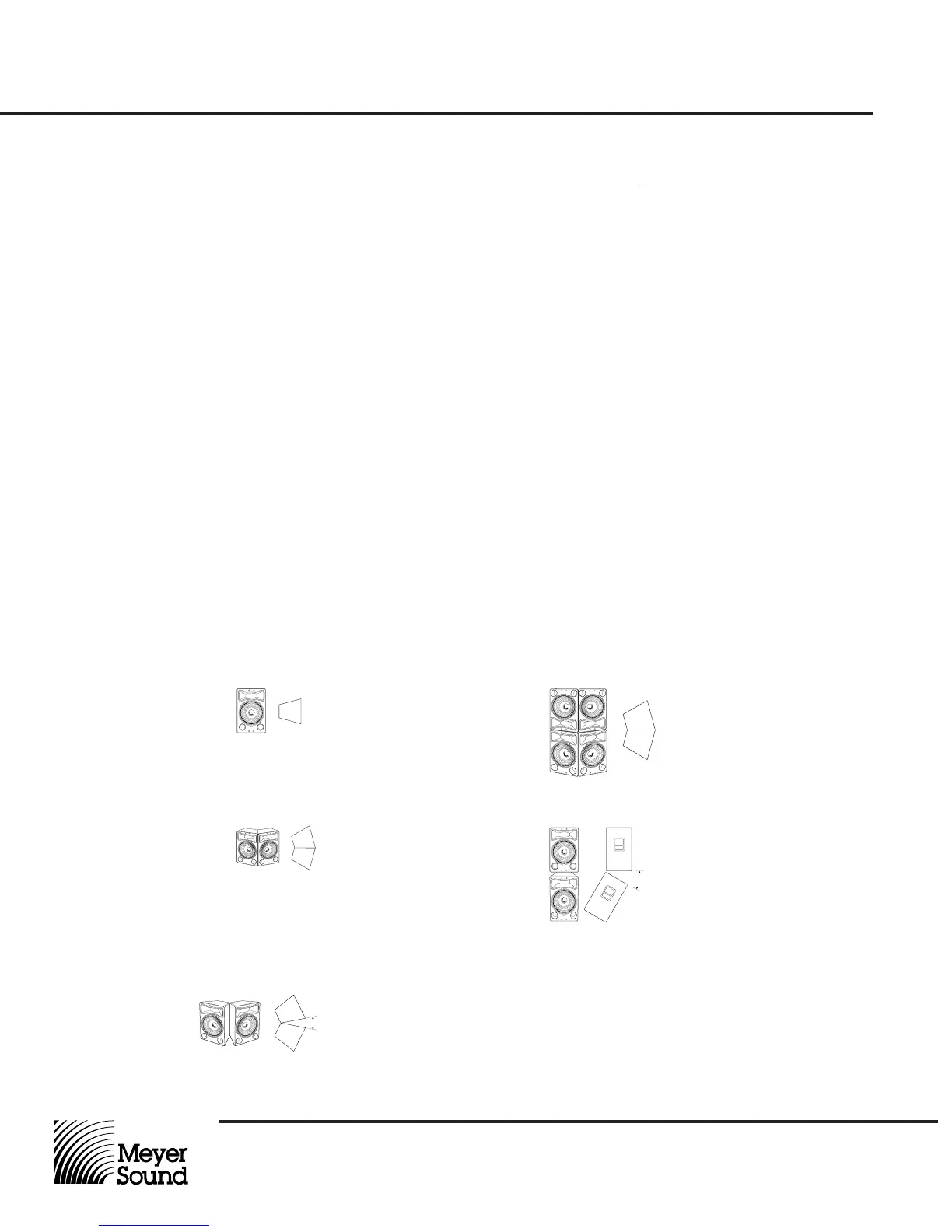

Narrow Horizontal Coverage Array
Coverage Angle
1,3
Vertical 60°
Horizontal 130°
Maximum SPL @ 1meter
Continuous 129 dB
Peak 139 dB
Total Amplifier Power 900 watts
15°
Wide Horizontal Coverage Array
Coverage Angle
1,3
Vertical 60°
Horizontal 140°
Maximum SPL @ 1meter
Continuous 129 dB
Peak 139 dB
Total Amplifier Power 900 watts
30°
Long Throw High Power Array
Coverage Angle
1,3
Vertical 30°
Horizontal 130°
Maximum SPL @ 1meter
Continuous 135 dB
Peak 145 dB
Total Amplifier Power 1.8kw
Wide Vertical Coverage Array
2
Coverage Angle
1,3
Vertical 100°
Horizontal 80°
Maximum SPL @ 1meter
Continuous 125 dB
Peak 135 dB
Total Amplifier Power 900 watts
Meyer Sound Part Number
05052012.03 Revision A3.
January 1994
© Meyer Sound, 1985 - 1994. All
rights reserved. This document
may not be reproduced without
permission.
1
Coverage angle is the -6dB average. All measurements made at
24 inches and confirmed at 6 feet (on-axis except where noted)
using pink noise source and measured in
1
/3rd octave bands.
2
This configuration produces smooth response, but is asymmetrical
in the vertical plane. (Measurement axis same as for a single UPA-
1C).
3
Frequency response 50Hz – 16kHz, half-space conditions.
Note 1:
Measured 1 meter from center
of cabinet face, half-space
conditions, pink noise input,
network set to FLT, smoothed
to one-third octave. Low
frequency response dependent
on load conditions.
Note 2:
Loudspeaker driven with pink
noise.
