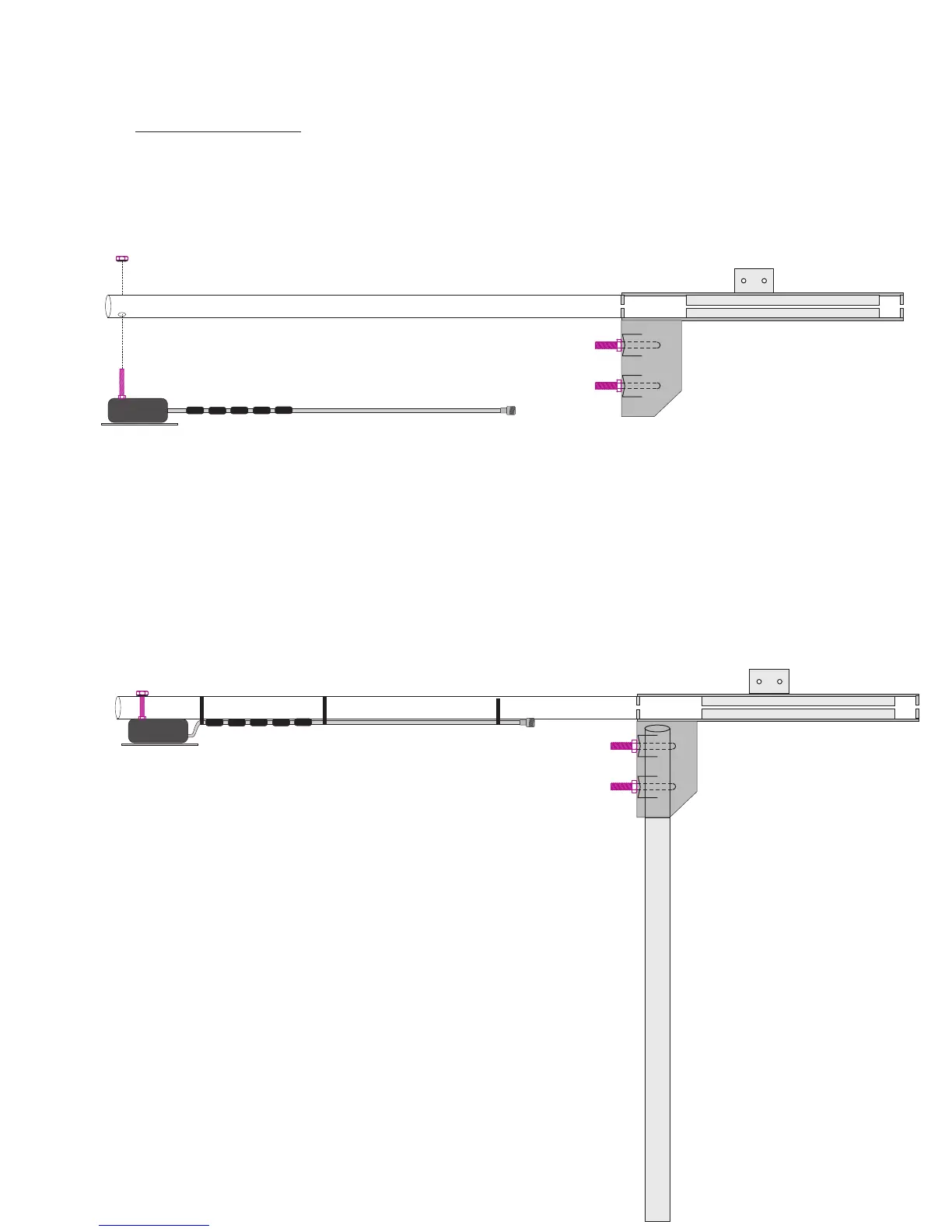

The matching box can now be mounted to the feed arm. Use the 6-32 nylon locking
nut to secure it to the tube. Use the nylon ties to route the coax along the tube back towards the
mounting plates.
Mounting plate
Now would be a good time to mount the antenna
on a temporary mast if you haven’t already.
Use the two silver U-bolts to secure the mast inside
the mounting bracket. The center of gravity is
on the edge of the bracket. This is the reason
for the mount to be off centered.
Matching box
Mounting plate
To Next Page
