MFJ-207 Instruction Manual HF 10-160M SWR Analyzer
SYSTEM CONTROLS AND INDICATORS
End Panel Jacks

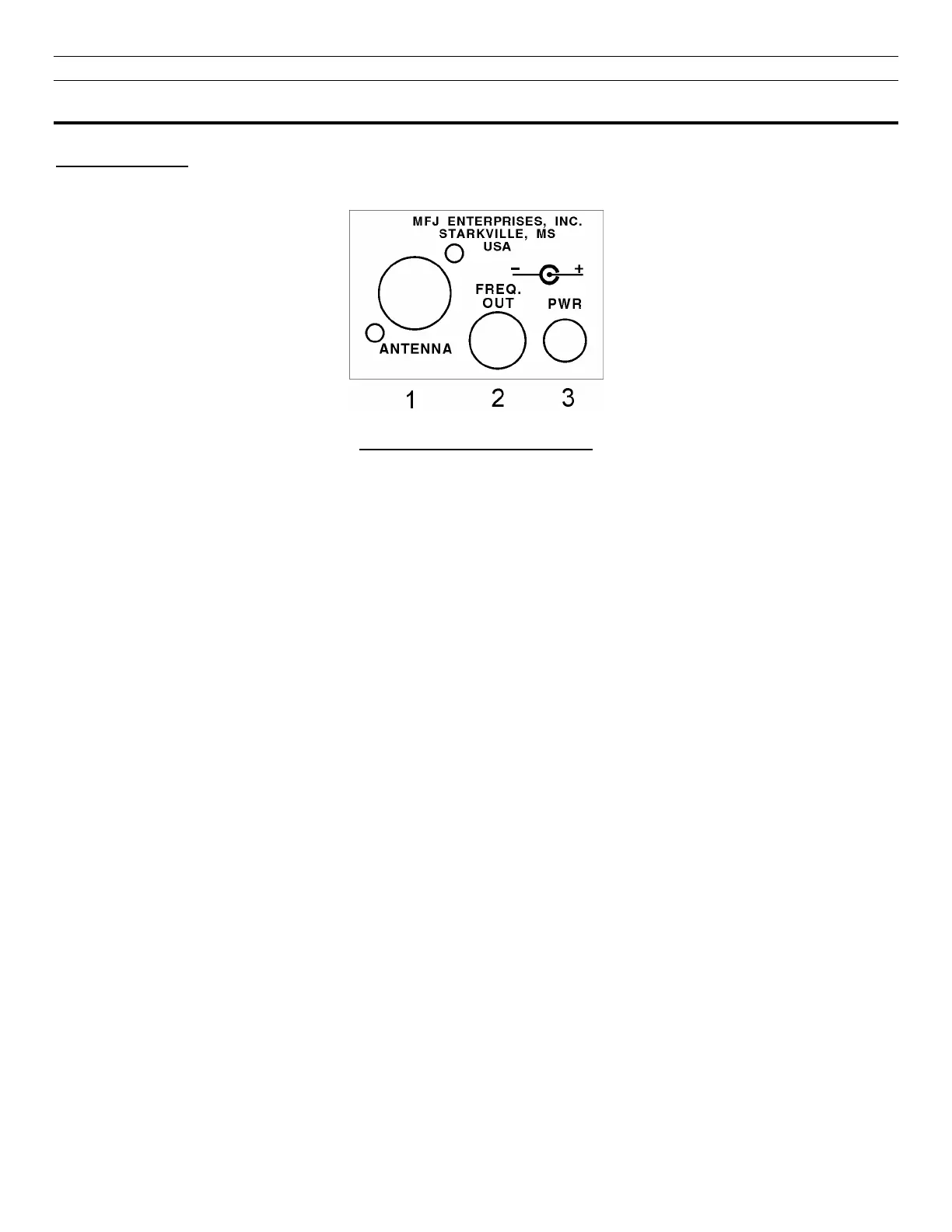

FIGURE 2: End Panel Jacks
1. ANTENNA: This SO-239 Antenna connector allows you to easily hook up your
station’s antenna to the MFJ-207.
2. FREQ. OUT: For additional accuracy you can hook up a frequency counter to this
phono connector or feed the signal over a short piece of wire to your radio and zero
beat against your radio as described in Appendix A.
3. PWR: This 2.1 mm jack allows you to attach a MFJ-1312D AC adapter or feed
power from your station supply.
