MFJ MFJ-9234 - Introduction and Features; MFJ-9234 Mini Loop Tuner Introduction

MFJ-9234 Mini Loop Tuner Instruction & Technical Manual
- 3 -
INTRODUCTION & FEATURES
MFJ-9234 MINI LOOP TUNER
TM
INTRODUCTION
The MFJ-9234 Mini Loop Tuner
TM
is a small, versatile, high-efficiency device that turns any wire loop
into a high-efficiency multi-band transmitting antenna system. Designed to mount directly to your
radio, it is perfect for on-the-go operation. It is designed for 50-ohm use at QRP-power input on all
modes. Two items are required:
• MFJ-9234 Mini Loop Tuner
TM
(Shown in Figure 1)
• Wire Loop(s) (55 ft of wire included)

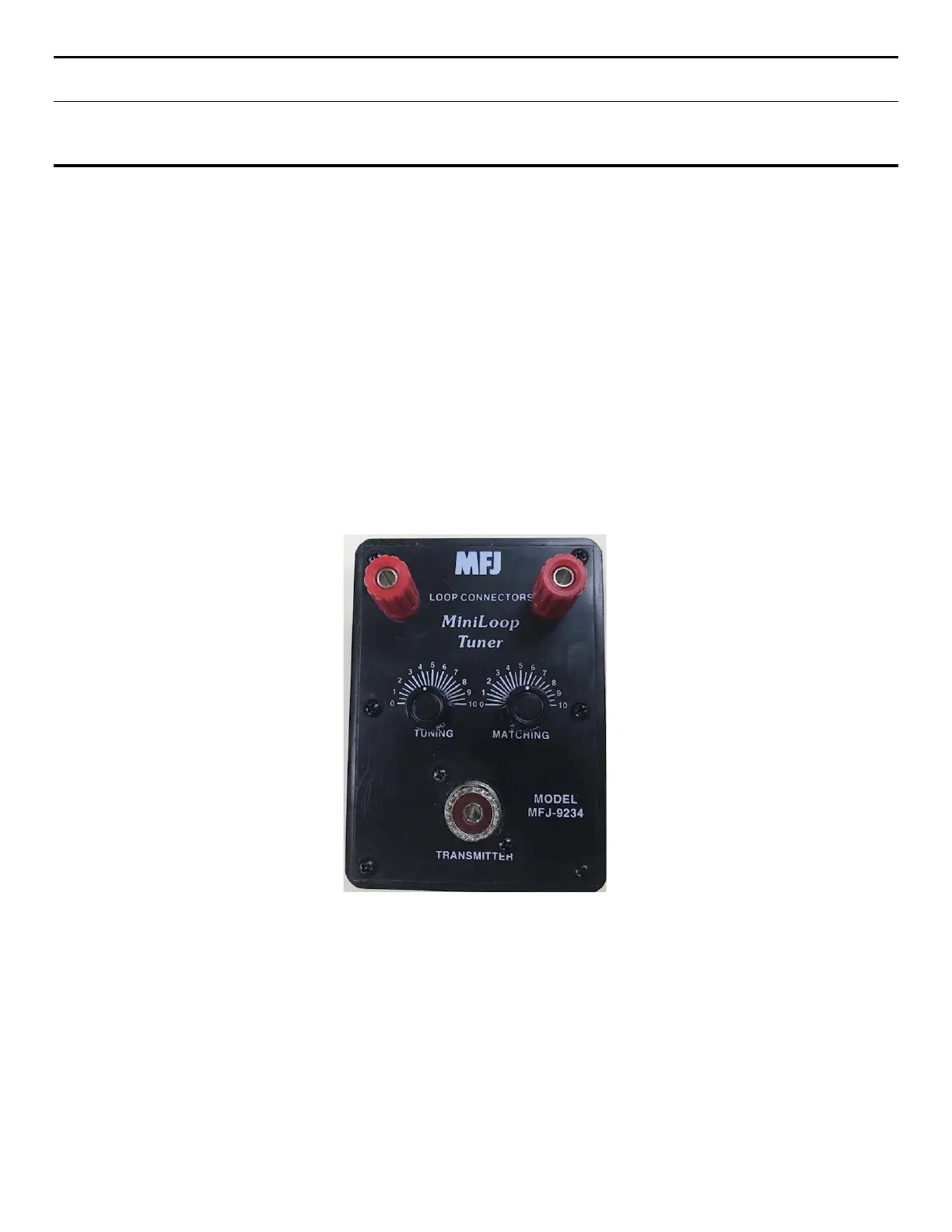

Figure 1: MFJ-9234 Mini Loop Tuner
