correct assembly of the crankshaft in the housing is obtained by interposing
a
number of shims (shown vertically abovme the hole in the crank case)
between the housing cover and the cast iron case.
It stands to reason thnt before
th,e fan p~~lley can be removed the nut on
the front end of the crankshaft which acts as
a
starting handl,e dog, and shown
on the right hand side of Illustration No.
13,
must first of all be removed.
DISTRIBUTOR
WITHDRAWAL
FRONT
ENGINE
eBUPPORT

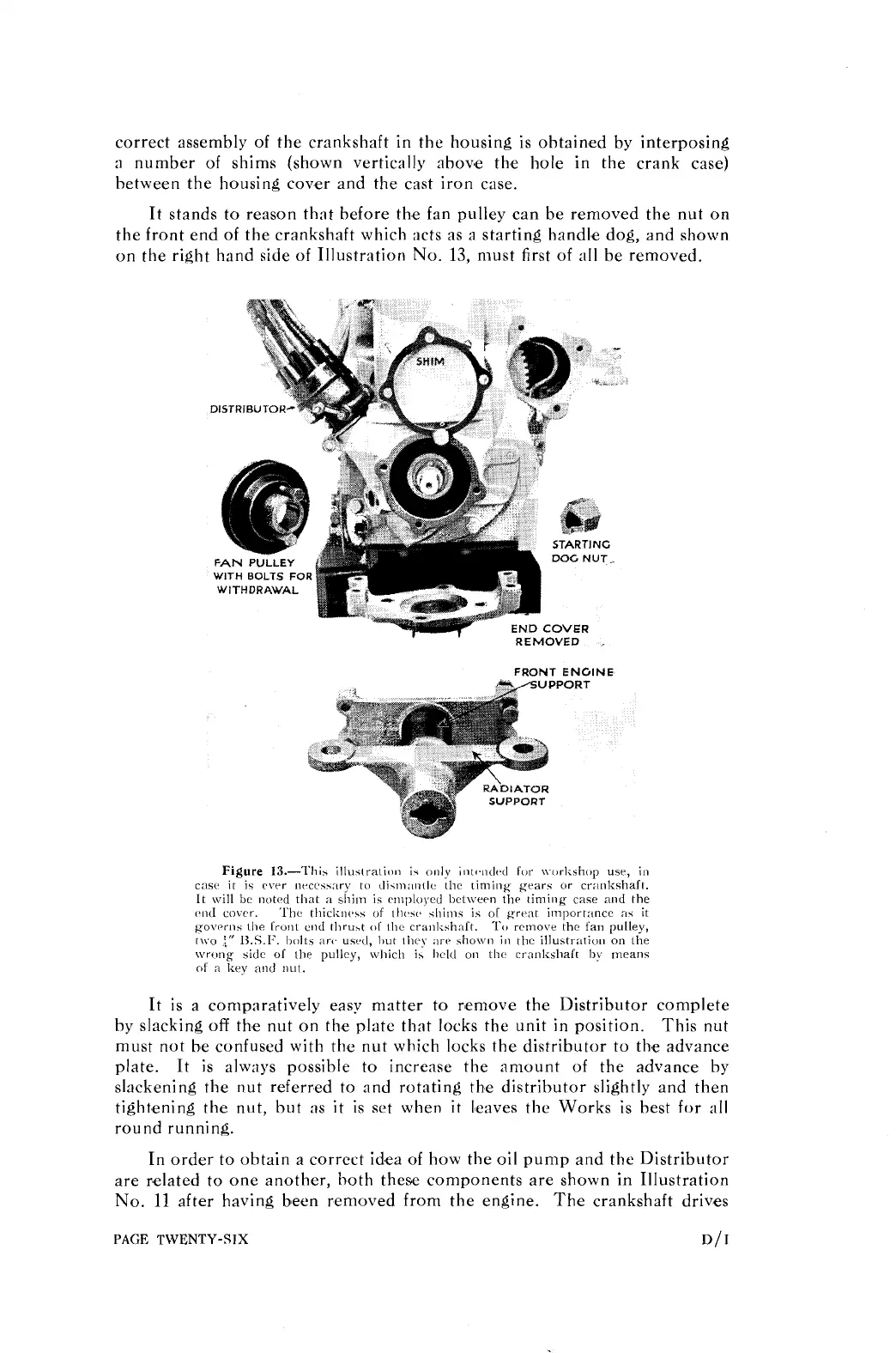

Figure
13.-l'hi:, illus(ration
i~
onlv int~wtld for \viirkshop use, in
case it is cvrr nrcessary to di\ln:mtlc the timing grars or cranlishaf~.
It \\.ill
be
noted that
:I
shim is employed I)cL\vern th~ timing case and the
vntI cover-.
l'hc
thickll(% of th(w shinis
is or grc3:It i~nport:mce
:IS
it
go\vXr-ns Llie [runt end tllrust
(11'
tlic cranl<sh:dt.
'So
remove the
fan
pulley,
r1i.o
:"
13.S.I;.
I~olts art. use~l, but ~hcy
:]I-P
shown in thc illustr:lti~~n on the
wrong side
ol'
the pulley, \vliich
i:,
l~cl~l on Lhc cl-anlcslialr Iby means
ol'
:I
lcry and nut.
It is a comparatively easy matter to remove the Distributor complete
by slacking off the nut on the plate that locks the unit in position. This nut
must not be confused with the nut which locks the distributor to the advance
plate. It is always possible to increase the amount of the advance by
slackening the nut referred to and rotating the distributor slightly and then
tightening the nut, but as it is set when
it
leaves the Works is best for all
round running.
In order to obtain a
correct id,ea of how the oil pump and the Distributor
are related to one another, both these components are shown in Illustration
No.
11
after having b'een removed from the engine. The crankshaft drives
