In order that the wind resistance categories which are stated by us holds the validity, the fastener of the assembler has to match with
the substructure. For incoming orders without details of installation substructure you will receive brackets for the installation on con-
crete C20/25. Please keep in mind, that these brackets are possibly not usable for other substructure. To fulfil the DIN EN 13561 it is
essential to install the kind and number of brackets which are recommended per product. Thereby you have to consider absolutely
the determined dowel extraction forces, as well as the installation and mounting references of the producer of fastener (inclusive ed-
ge distance). Accurate extraction forces depending to thickness of insulated plaster and the demanded bracket set, as well as in-
stallation on other substructure, on request (please also see column insulated plaster systems on page T1-35).
CCoouupplleedd ssyysstteemmss
are calculated as two single systems (system width = ½ total width). The bracket set (K-set) will be needed twice.

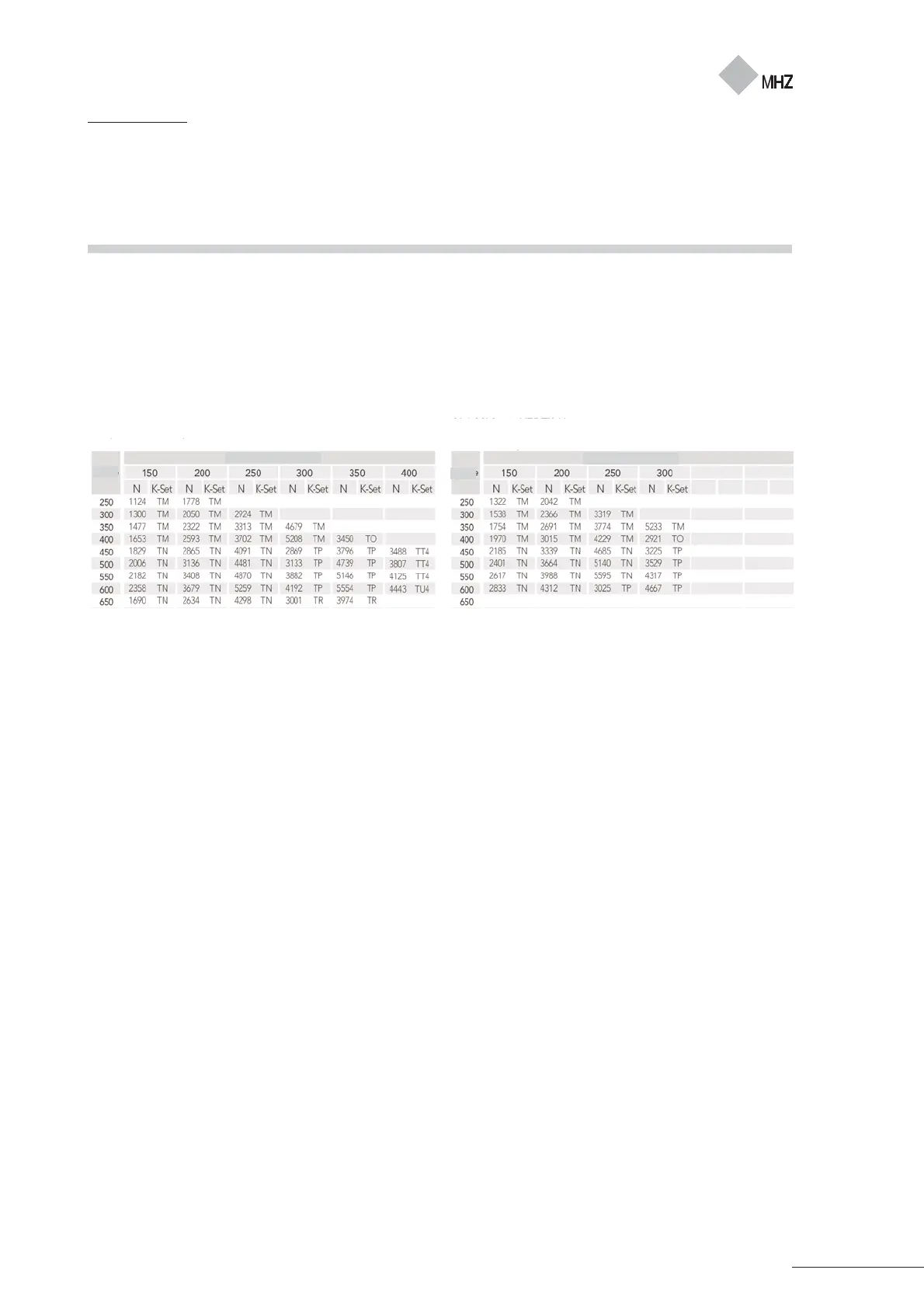

EXTRACTION FORCES AND BRACKET SETS for wind resistance category 2
Extraction forces in Newton (N) per installation screw
MHZ carrier bar awning
CLASSIC
T1-39
Subject to technical changes, edition 03.2008
N = extraction force in Newton (N) per installation screw; K-set = intended bracket set
Advice: the above mentioned extraction forces are also effective for application of guide bar PRISMA.
Advise for rafter installation: for width up to 400 cm two brackets and width up to 650 cm 3 brackets will be used (for wind resistance
category 0).
ceiling installation on concrete C20/25
ceiling installation on concrete C20/25
width
projection in cm
width
projection in cm
CLASSIC/CLASSIC without VERTIMA
CLASSIC/CLASSIC with VERTIMA
