MHZ CLASSIC - Wall Bracket Sets (K-SET); Wall Bracket Illustrations; Wall Mounting Bracket Configurations

MHZ carrier bar awning
CLASSIC
T1-36
Subject to technical changes, edition 03.2008

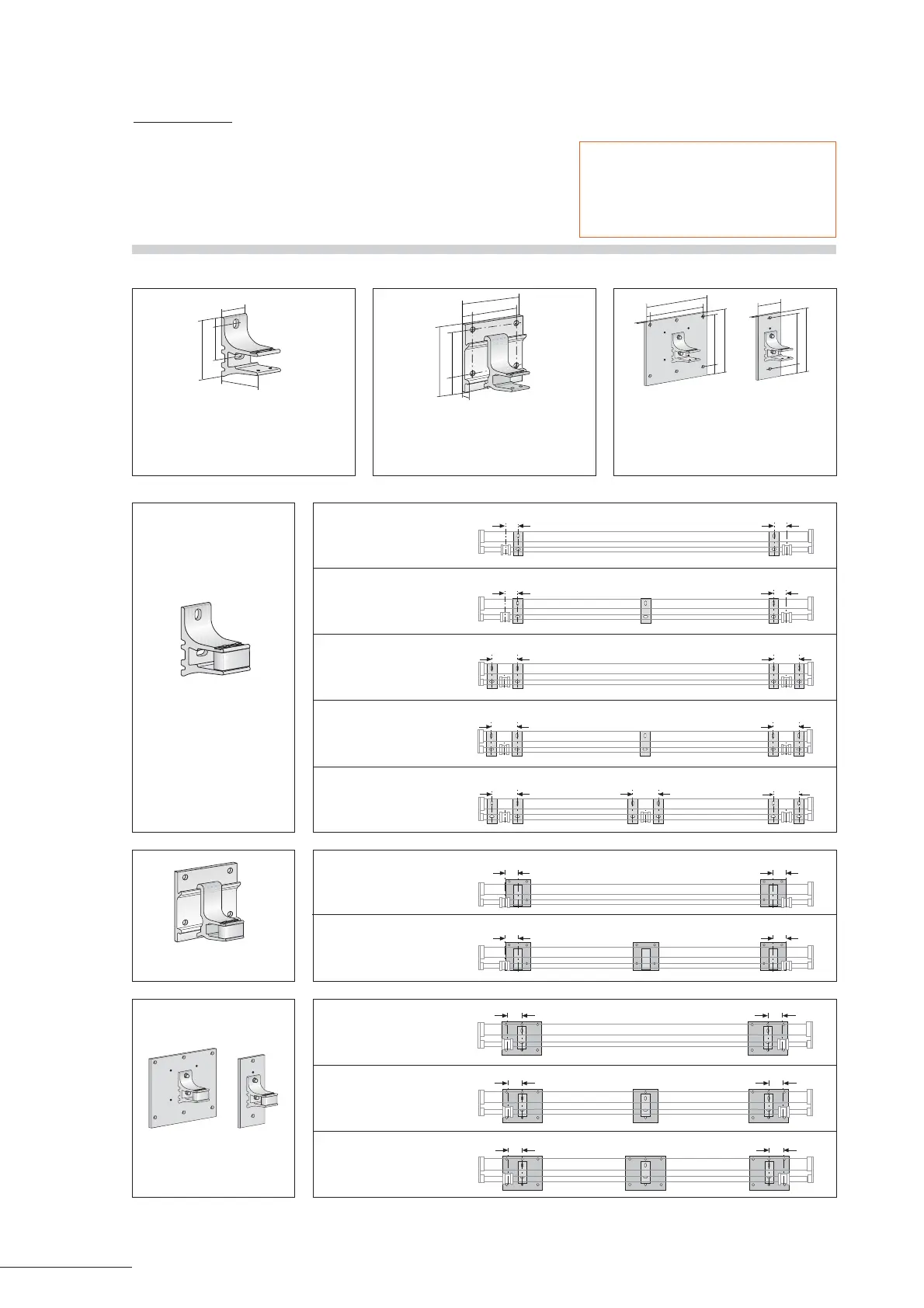

WALL BRACKET SET (K-SET)
wall brackets
It is possible to install the brackets outside or inside the arm brackets. Pairs of brackets have to be installed on the left and right side of the arm bracket. Consider
the measurement of center to center brackets! For width of 401 cm on and 2 arms an additional support bracket will be needed. * From width 601 cm an additional
third arm in left or right version will be needed. ** Special bracket set for projection of 400 cm
WK 1
K-Set TA (standard)
2 units WK 1
total 4 fixation points
K-Set TB* (standard)
3 units WK 1
total 6 fixation points
Advise to DIN EN 13561
The standard delivered brackets are for installation on
concrete C20/25. Due to static reasons, it is mandatory
to advise with the order, if there is an other installation
substructure, or installation on insulated plaster, then it
is necessary to use different brackets, respectively other
accessories (additional charge).
60
20
84
150 mm
96
wall bracket WK 1
standard wall brackets
2 fixation points per bracket
200 mm
150
230 mm
150
60
22
25
wall bracket WK 2
VEGAS wall bracket (WK 8)
with adapter (additional charge)
4 fixation points per bracket
340 mm
300 mm
350 mm
28050
12
20
130
12
350 mm
280
50
WK4 WK5
wall bracket WK 4/5
wall bracket (WK 1) with additional steel plate
(add. charge)
WK 4: 6 fixation points per bracket
WK 5: 2 fixation points per bracket
wall installation
80-100 mm
80-100 mm
80-100 mm
80-100 mm
WK 2
K-Set TF (additional charge)
2 units WK 2
total 8 fixation points
K-Set TH* (additional charge)
3 units WK 2
total 12 fixation points
80-100 mm 80-100 mm
80-100 mm 80-100 mm
160-200 mm160-200 mm
160-200 mm160-200 mm
160-200 mm
160-200 mm
160-200 mm
K-Set TC (standard)
4 units WK 1
total 8 fixation points
K-Set TD/TD4** (standard)
5 units WK 1
total 10 fixation points
K-Set TE* (standard)
6 units WK 1
total 12 fixation points
80-100 mm 80-100 mm
80-100 mm
80-100 mm
80-100 mm 80-100 mm
WK 4
K-Set TI (additional charge)
2 units WK 4
total 12 fixation points
K-Set TK (additional charge)
2 units WK 4
1 units WK 5 (in center)
total 14 fixation points
K-Set TL* (additional charge)
3 units WK 4
total 18 fixation points
WK 5
K-set = bracket set; WK = wall bracket; DK = ceiling bracket
