T1-35
Subject to technical changes, edition 03.2008

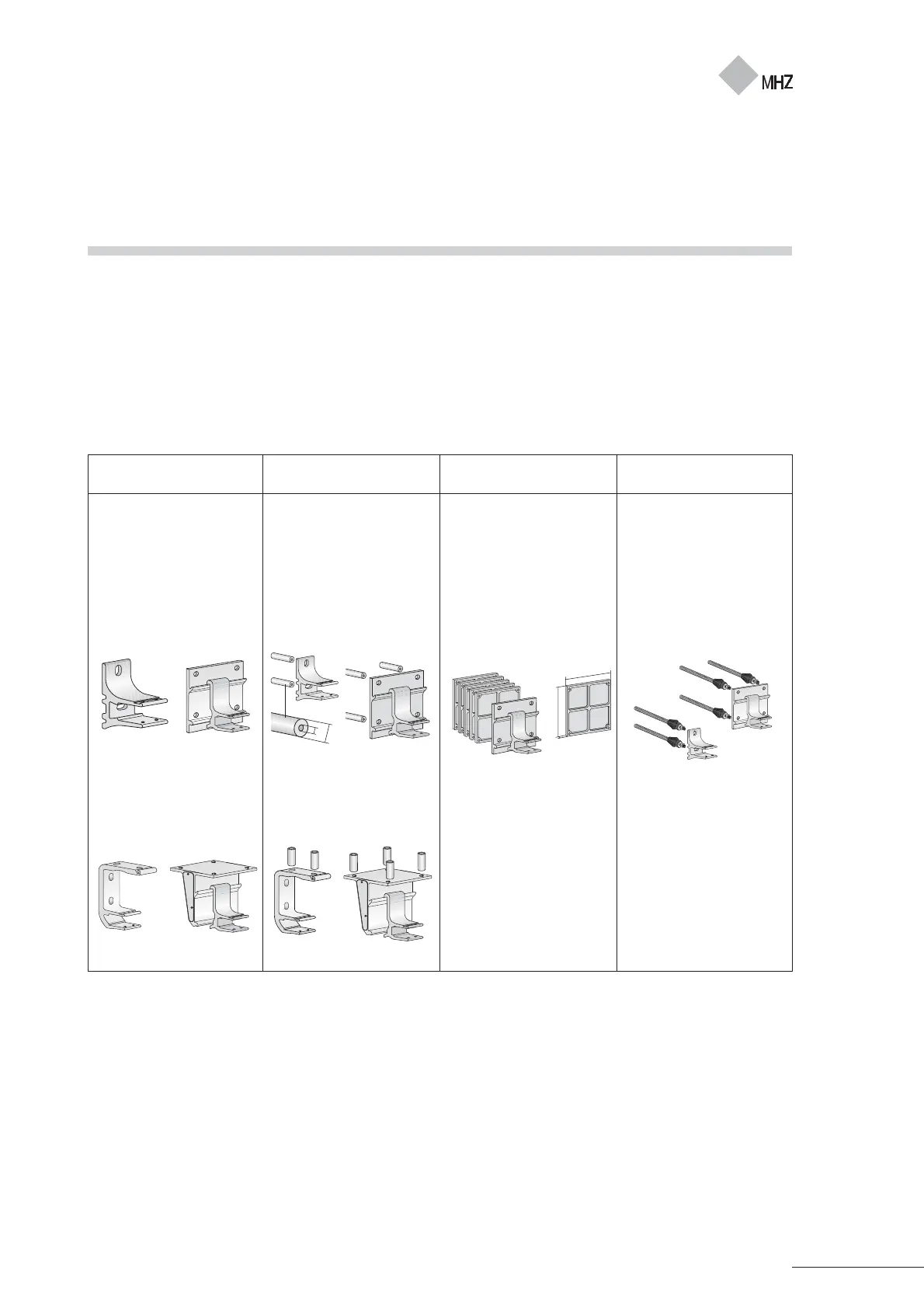

INSULATED PLASTER SYSTEMS
MHZ carrier bar awning CLASSIC
The information for the insulated plaster systems are also valid for MHZ awnings VEGAS,VENUS and NOVA. On request, we cal-
culate the current extraction forces depending on the needed bracket sets (K-set) for you.
For this we need following details:
- type of awning inclusive accessory (e.g. Vertima)
- installation type
- substructure of installation
- thickness of insulated plaster, as well as selected insulated plaster system (S1/S2/S3)
plaster up to 2 cm thickness
wall installation
(without spacer)
ceiling installation
(without spacer)
plaster (without insulation)
insulated plaster up to 8 cm thickness
wall installation
spacer with PVC-tube
ceiling installation
spacer with PVC-tube
Insulated plaster -
System S1
Insulated plaster -
System S3
Insulated plaster -
System S2
insulated plaster up to 16 cm thickness
wall installation
spacer using plastic distance
plates
ceiling installation
spacer using plastic distance
plates
not possible
extraction forces on request, depen-
ding on installation substructure and
thickness of insulated plaster, as well
as insulated plaster system.
extraction forces on request, depen-
ding on installation substructure and
thickness of insulated plaster, as well
as insulated plaster system.
insulated plaster up to 17 cm thickness
wall installation
spacer using Thermax M16
ceiling installation
spacer using Thermax M16
not possible
extraction forces on request, depen-
ding on installation substructure and
thickness of insulated plaster, as well
as insulated plaster system.
please see extraction forces index,
depending on installation substructure.
