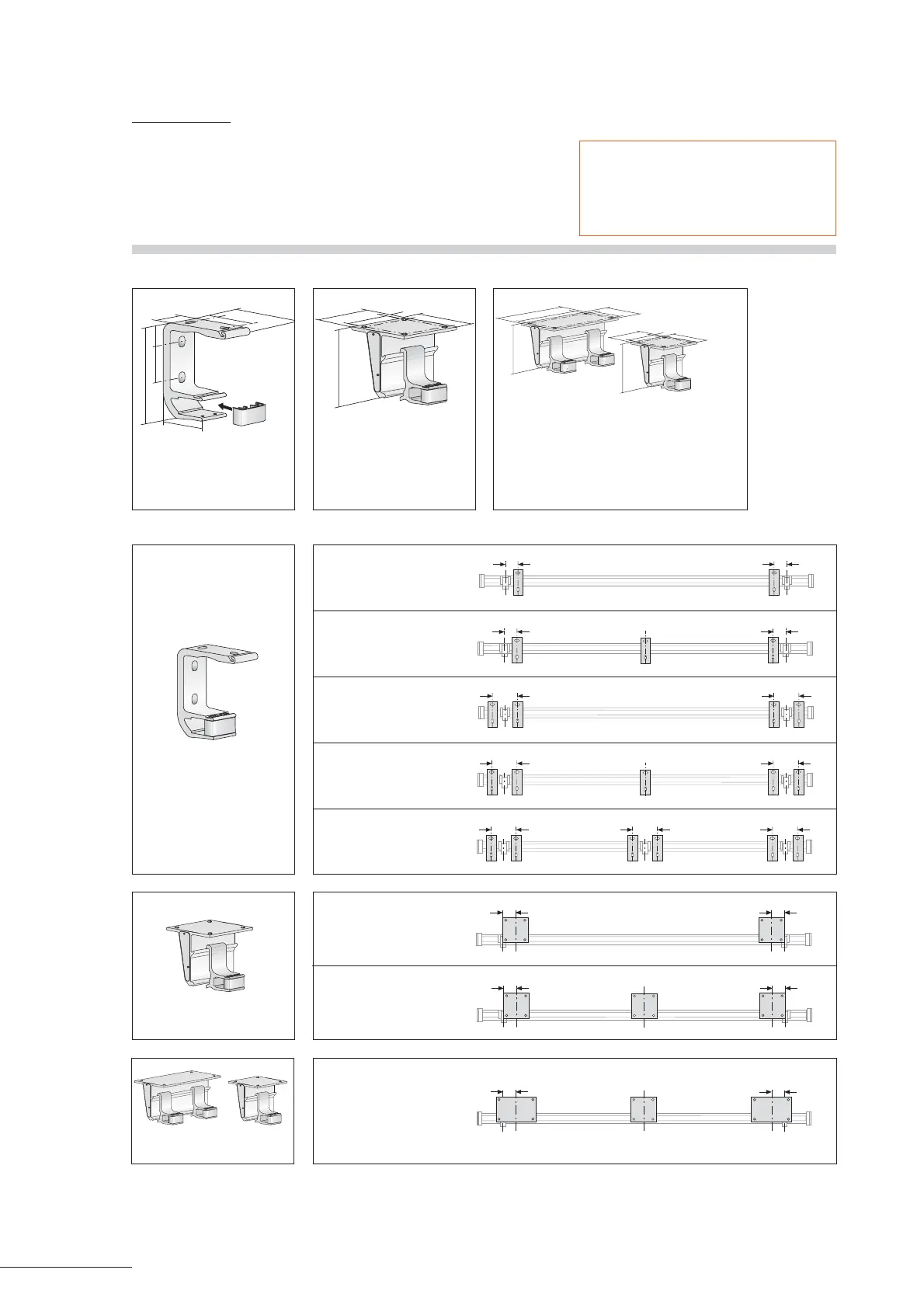

CEILING BRACKET SET (K-SET)
ceiling brackets
225 mm
85 49
96
60
85
37
154 mm
ceiling bracket DK 1
standard ceiling bracket
(additional charge ceiling)
2 fixation points per bracket
175 mm
135
20
203 mm
20
175
ceiling bracket DK 2
standard ceiling bracket (DK 3)
with adapter (additional charge)
4 fixation points per bracket
ceiling installation
K-set = bracket set; WK = wall bracket; DK = ceiling bracket
Advise to DIN EN 13561
The standard delivered brackets are for installation on
concrete C20/25. Due to static reasons, it is mandatory
to advise with the order, if there is an other installation
substructure, or installation on insulated plaster, then it
is necessary to use different brackets, respectively other
accessories (additional charge).
DK 1
K-Set TM (add. charge ceiling)
2 units DK 1
total 4 fixation points
K-Set TN (add. charge ceiling)
3 units DK 1
total 6 fixation points
80-100 mm 80-100 mm
80-100 mm 80-100 mm
DK 2
K-Set TS (additional charge)
2 units DK 2
total 8 fixation points
K-Set TT* (additional charge)
3 units DK 2
total 12 fixation points
80-100 mm 80-100 mm
80-100 mm 80-100 mm
160-200 mm 160-200 mm
160-200 mm 160-200 mm
160-200 mm 160-200 mm160-200 mm
K-Set TO ((add. charge ceiling)
4 units DK 1
total 8 fixation points
K-Set TP (add. charge ceiling)
5 units DK 1
total 10 fixation points
K-Set TR* (add. charge ceiling)
6 units DK 1
total 12 fixation points
It is possible to install the brackets left or right of the arm brackets. Pairs of brackets have to be installed on the left and right side of the arm bracket. Consider the
measurement of center to center brackets! From width of 401 cm on and 2 arms an additional support bracket will be needed.
* From width 601 cm on an additional third arm in left or right version will be needed.
** special bracket set for projection of 400 cm
K-Set TU4** (additional charge)
2 units DK 4
1 unit DK 5 (in center)
Total 8 fixation points
DK4 DK5
80-100 mm
80-100 mm
DK 4 DK 5
175 mm
135
20
203 mm
20
175
340 mm
300
20
203 mm
20
175
135
DK4 DK5
ceiling bracket DK 4/5
ceiling bracket (DK 4)
with adapter (additional charge)
4 fixation points per bracket
