Product Install Guide – M4xx Series
03/11/22 | V1.9.9

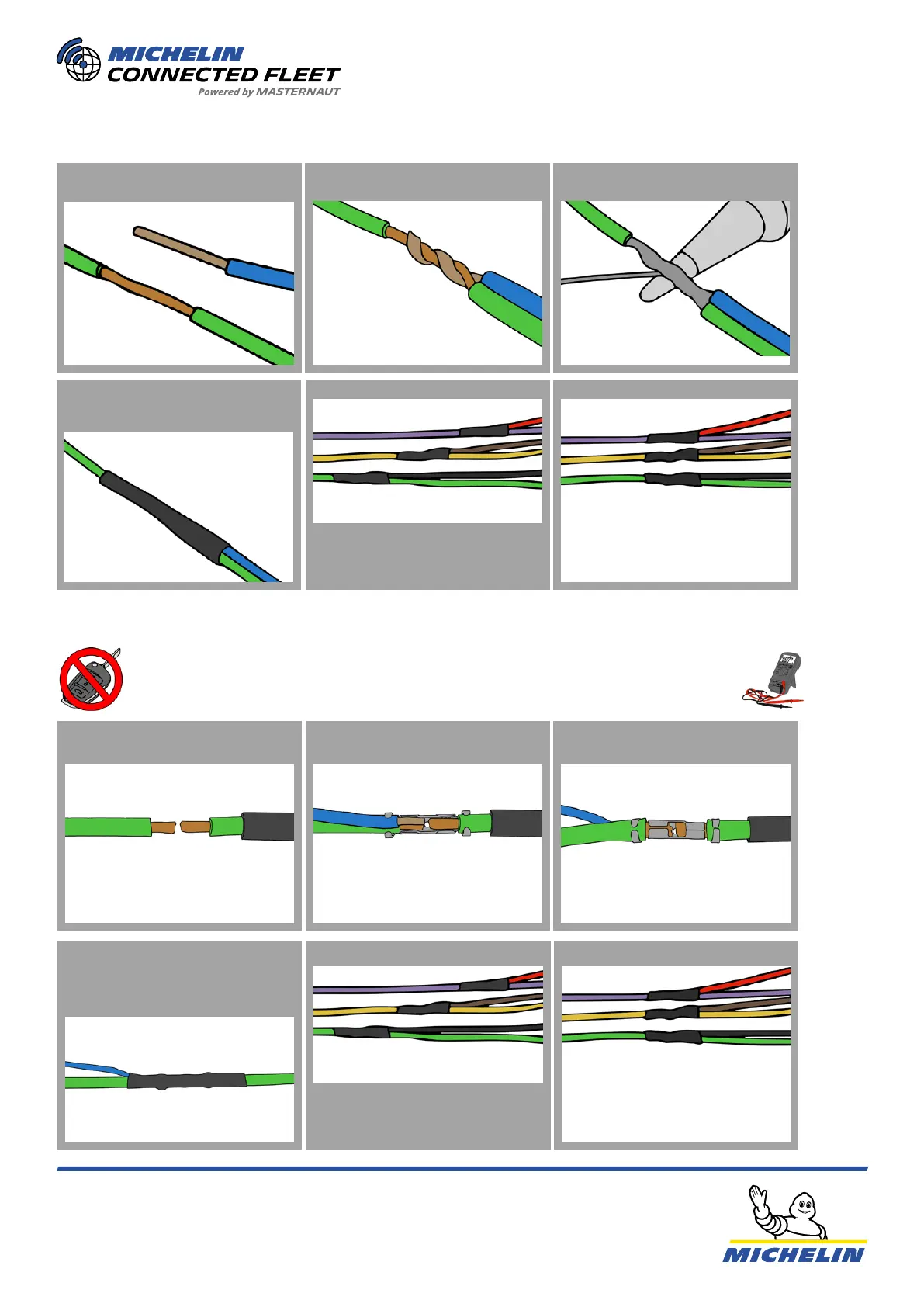

Strip about 10mm of
the insulation.
Twist the wires together. Solder the wires together.
When making multiple
connections on the same loom it
is good practise to space out the
connection points.
Bad practise.Best practise.
Cut and strip the feed wire and
add a piece of heatshrink.
Line up the wires in the
crimping terminal
Crimp the wires together
Heat the heatshrink and wrap
with insulating tape to insulate
and waterproof the
connection point.
When making multiple
connections on the same loom it
is good practise to space out the
connection points.
Bad practise.Best practise.
Prior to cutting and crimping any cables you MUST make sure
that the ignition is turned o, also double check the wire with a
multimeter.
9. Soldering Method
10. Crimping Terminal Method
1
2 3
4
1
2
3
4
Insulate and waterproof the
connection with electrical and
amalgamiting tape/heat shrink.
