9
Product Install Guide – M4xx Series
03/11/22 | V1.9.9
K-LINE + D8
INTERFACE
OR
OR
OR
OR
1. Power (+) - 5A Fused
2. Ground (-)
3. Ignition (+) - 5A Fused
4. Input 2
5. Input 3
6. Input 4
7. Analog 1
8. Analog 2
9. Output 1
10. Output 2
4RS232
ADAPTER
POWER
LOOM
GRITTER
INTERFACE
(SERIAL)
GRITTER
INTERFACE
(XLR)
HMI

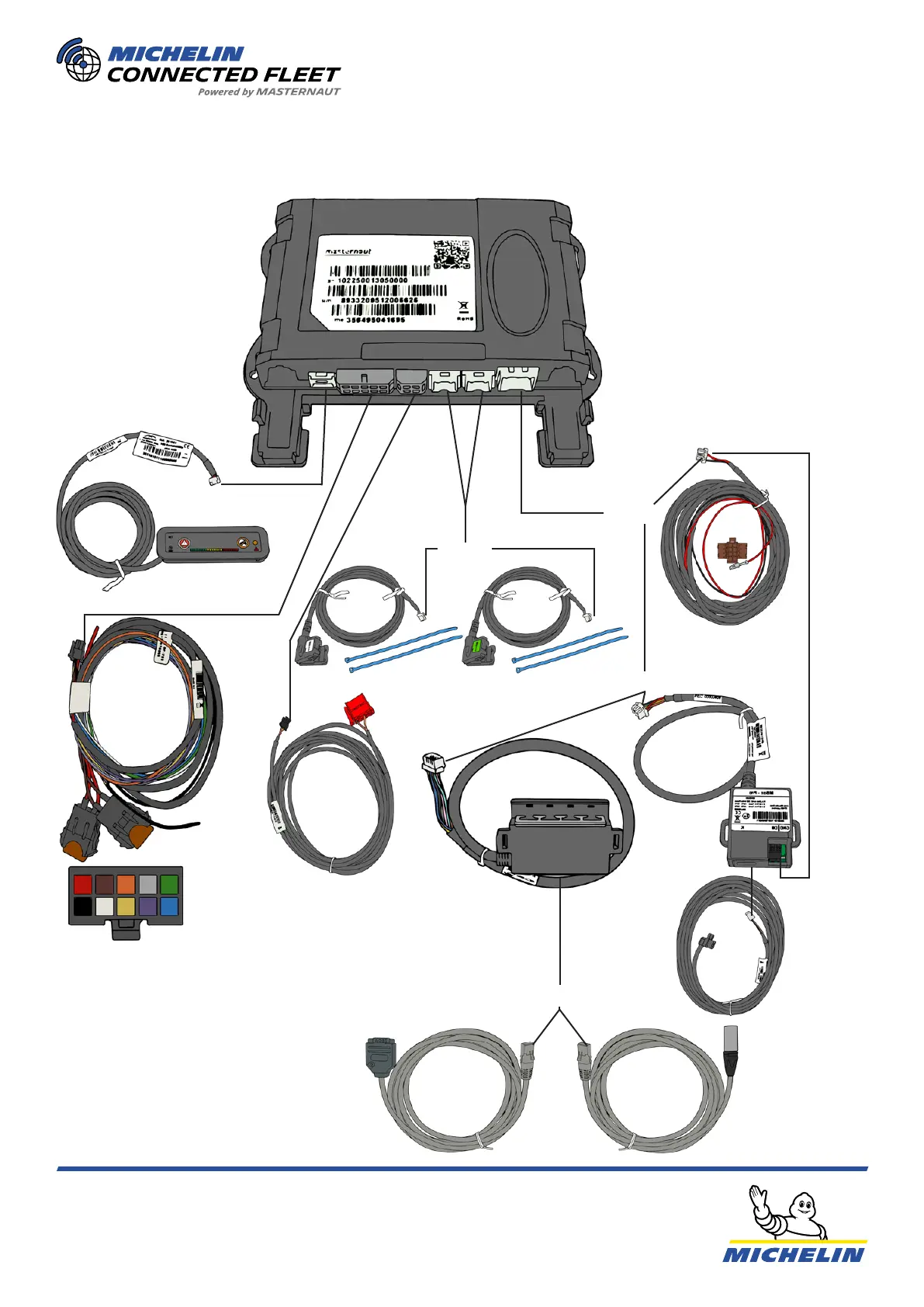

7. Wiring Diagram
108642
97531
M41x
CAN
J1587
D8
K-LINE
CAN
TACHO
