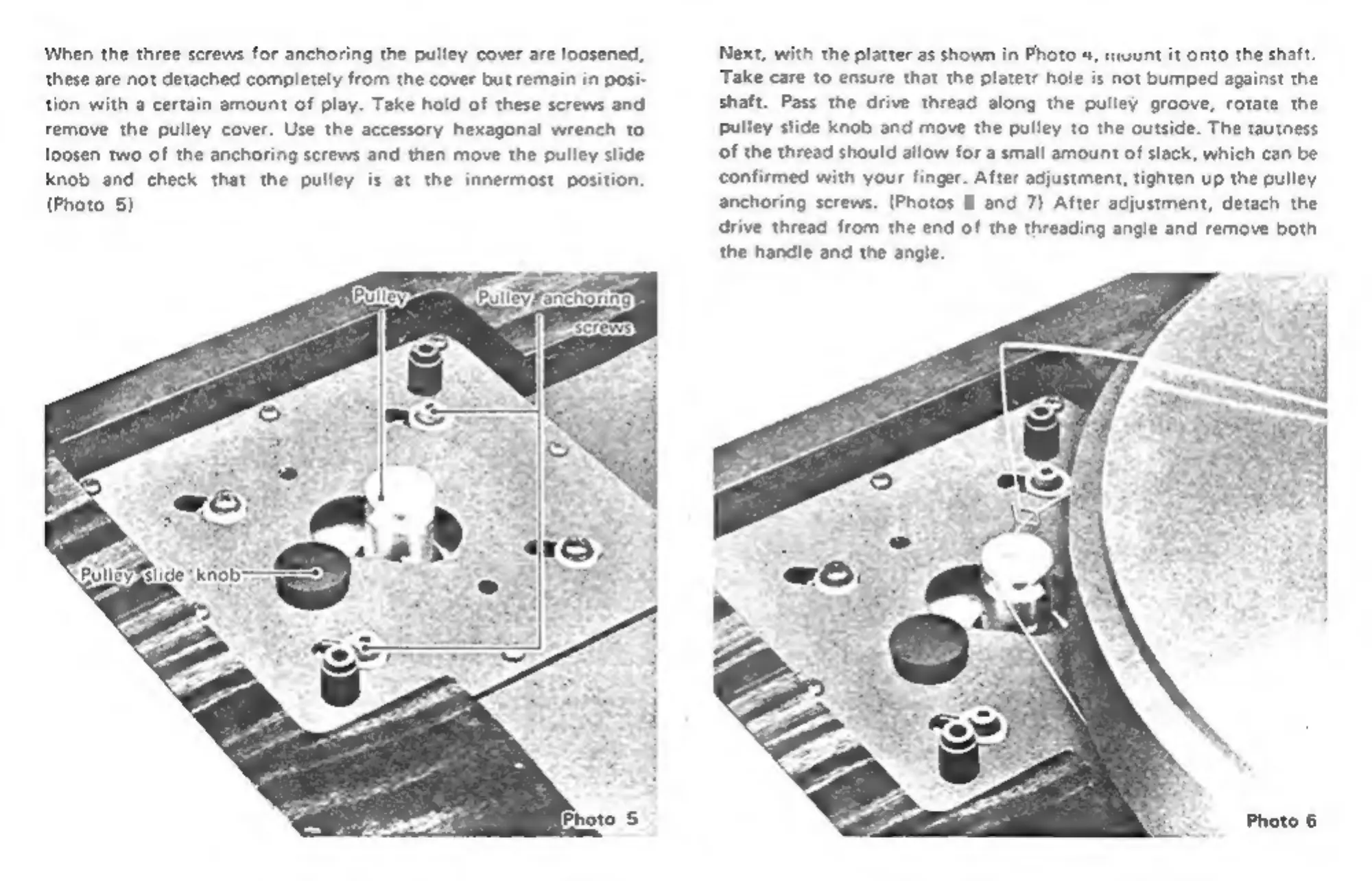

When the three screws for anchoring the pulley cover are loosened,
these are not detached completely from the cover but remain in posi
tion with a certain amount of play. Take hold of these screws and
remove the pulley cover. Use the accessory hexagonal wrench to
loosen two of the anchoring screws and then move the pulley slide
knob and check that the pulley is at the innermost position.
(Photo 5)
Bulley slide «knob sees
Next, with the platter as shown in Photo 4, nwunt it onto the shaft
Take care to ensure that the platetr hole is not bumped against the
shaft. Pass the drive thread along the pulley groove, rotate the
pulley slide knob and move the pulley to the outside. The tautness
of
the
thread
should
allow
for
a
small
amount
of
slack,
which
can
be
confirmed with your finger. After adjustment, tighten up the pulley
anchoring screws. (Photos 6 and 7) After adjustment, detach the
Grive thread from the end of the threading angle and remove both
the handle and the angle.
