Micro Seiki BL-111 - Attaching the power cord and ground wire; Mounting the arm rest

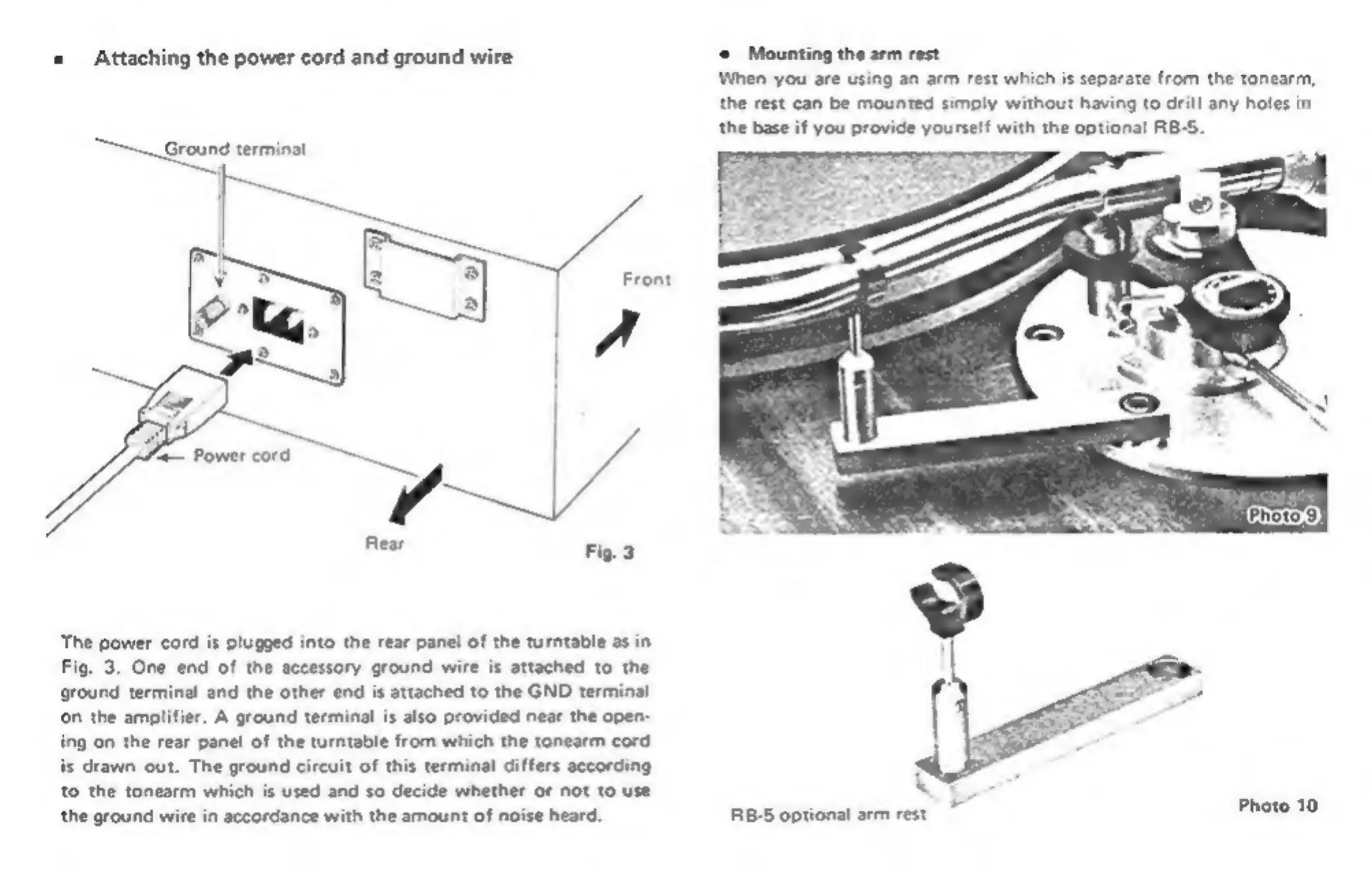

= Attaching the power cord and ground wire
~ Ground terminat
La Power cord Be
Rear Fig. 3
The
power
cord
is
plugged
into
the
rear
panel
of
the
turntable
as
in
Fig. 3. One end of the accessory
ground
wire is attached
to the
ground
terminal
and the other end is attached
to the GND terminal
on
the
amplifier.
A
ground
terminal
is
also
provided
near
the
open-
ing on the rear panel of the turntable
from which
the tonearm
cord
is drawn
out. The ground
circuit
of this terminal
differs
according
to the tonearm
which
is used and so decide
whether
or not to use
the ground
wire in accordance
with the amount
of noise heard.
¢ Mounting the arm rest
When you are using an arm rest which is separate from the tonearm,
the rest can be mounted simply without having to drill any holes in
the base if you provide yourself with the optional RB-5.
RB-5
optional
arm
rest
10
