8 of 20IM-5000E-USA Rev A, 2021-01
ASSEMBLY / DISASSEMBLY INSTRUCTIONS
WARNING: Inspect all system components for damage, corrosion, or excessive wear. Do not use if
any of these conditions are present. Contact MicroAire for service.
WARNING: If corrosion or debris are detected in or on the instrument, the instrument is
contaminated. Replace the instrument, or remove it from the sterile field to
be reprocessed.
WARNING: Do not use single-use accessories that are dull or damaged.
1. Inspect single-use accessories (blades, burs, rasps, twist drills) for damage.
2. Place the Control Console (REF 5025/5020) on a sturdy, flat surface near a hospital-grade
outlet. Insert the power cord plug into the corresponding receptacle on the console. Insert
the plug at the other end of the power cord into a hospital-grade wall outlet. Wait for the
console to initialize, then press and hold the blinking standby button to turn on the console.
Refer to the IM-5025 console manual for more information.
3. Insert Instrument Cable (REF 5006-5000) into either of the two console ports marked with an
instrument symbol.
4. If using a Foot Pedal (REF 5401), plug the Foot Pedal Cable (REF 5025-5401) into the console
port marked with a Foot Pedal symbol. Align the marks and gently push the connectors
together. Only one Foot Pedal can be connected to the console at a time, but it can be
selected to operate either of the Foot Pedal-compatible instruments.

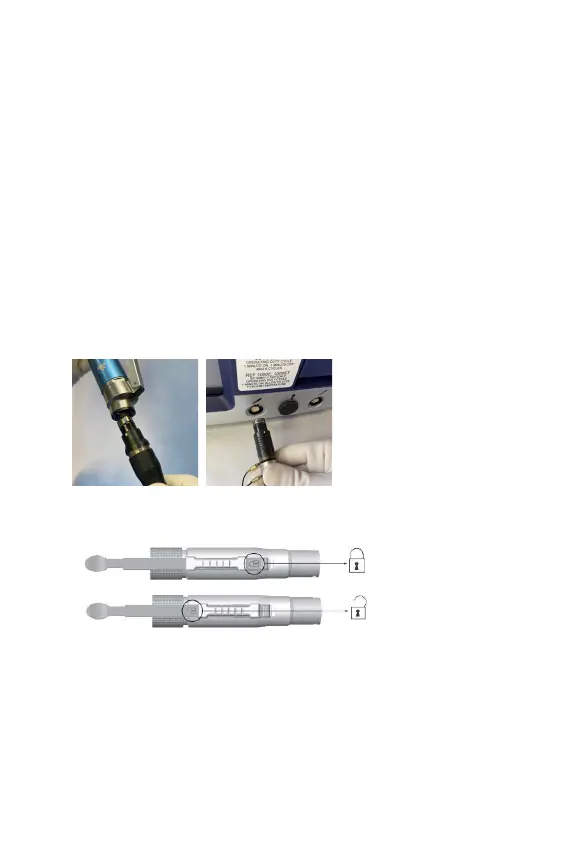

Align dots when connecting the cable to the handpiece. Do not twist.
Face the dot on the cable upward when connecting to the console. Do not twist.
Throttle safety lock in the LOCKED position and unlocked UNLOCKED position.
CAUTION: When connecting electric instrument cables, align the dots and gently push the
connections together without twisting.
5. Set the handpiece throttle to the LOCKED position. If using the Foot Pedal, ensure that it is
not accidentally activated.
6. Connect the Instrument Cable (REF 5006-5000) to the receptacle on the handpiece by
aligning the dots and gently pushing the connections together without twisting.
7. Connect a MicroAire Series-5000 coupler to the handpiece by retracting the collar on the
handpiece and pushing the coupler into the receptacle.
