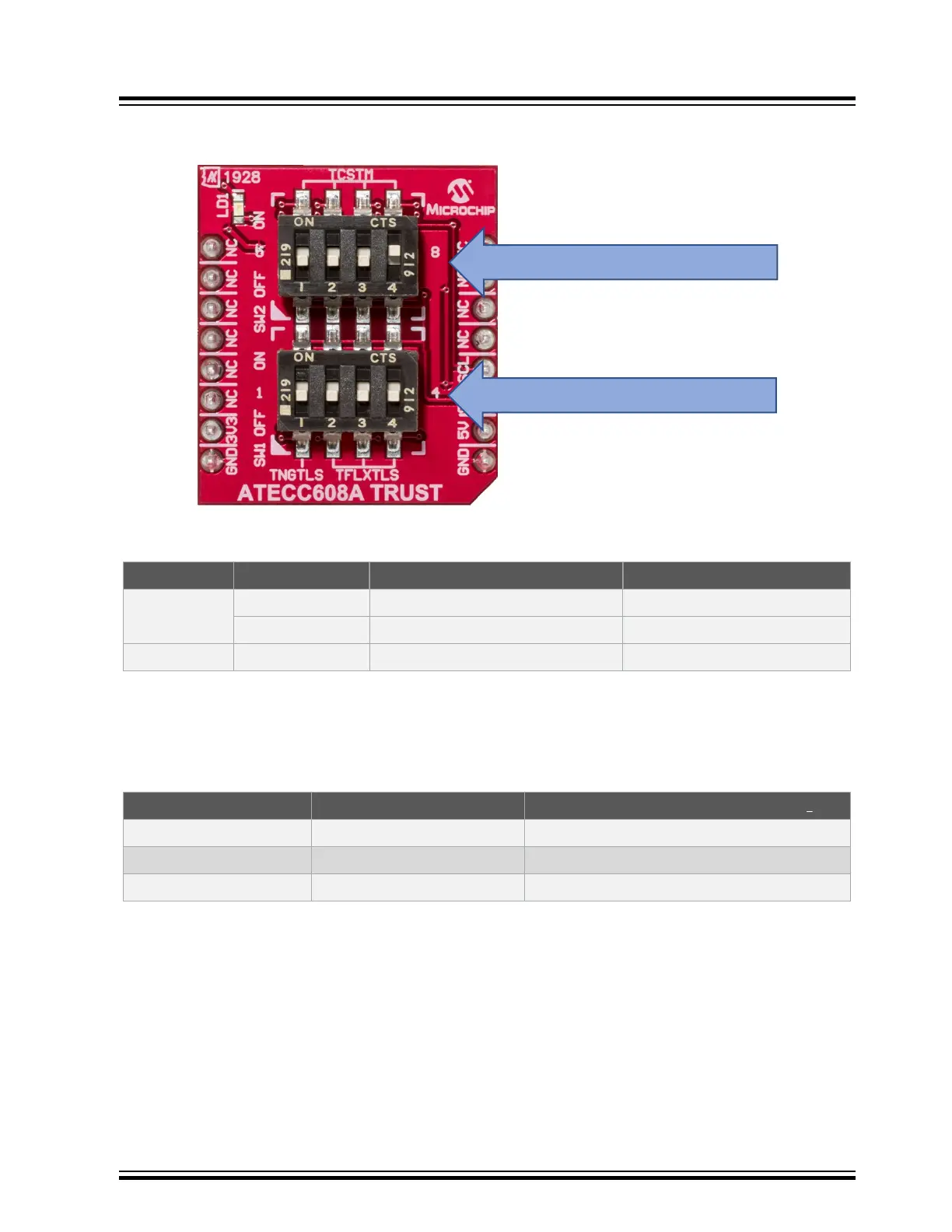

Figure 1-2. Device Selection
Table 1-1. Device Selection Switches
Switch # DIP Switch Secure Element Trust Element Type
SW1 1 ATECC608A-TNGTLS Trust&GO
2, 3, 4 ATECC608A-TFLXTLS TrustFLEX
SW2 5, 6, 7, 8 ATECC608A-MAHDA TrustCUSTOM
Devices Software Selection
Once a specific device is selected, a specific I
2
C address must be used to address the given device type. While each
device is initially programmed with a default I
2
C address, it is possible to overwrite this address. See the specific
device data sheets for more information.
Table 1-2. Default I
2
C Addresses
Device Default 7-bit I
2
C Address 8-bit Programmed I
2
C Address Value
(1)
ATECC608A-TNGTLS 0x35 0x6A
ATECC608A-TFLXTLS 0x36 0x6C
ATECC608A-MAHDA 0x60 0xC0
Note:
1. This is the I2C_Address byte value programmed into the ATECC608A device.
Note that multiple devices can be enabled provided they have different I
2
C addresses. If multiple devices with the
same address are selected, a failure occurs due to a conflict on the I
2
C bus.
1.3 Hardware Documentation
Additional documentation for the kit can be found on the Microchip website for the ATECC608A Trust (DT100104)
development kit.
