Chapter 4: Maintenance
4-LV-1-4 12/28/2010 LV1 User Manual 4-5

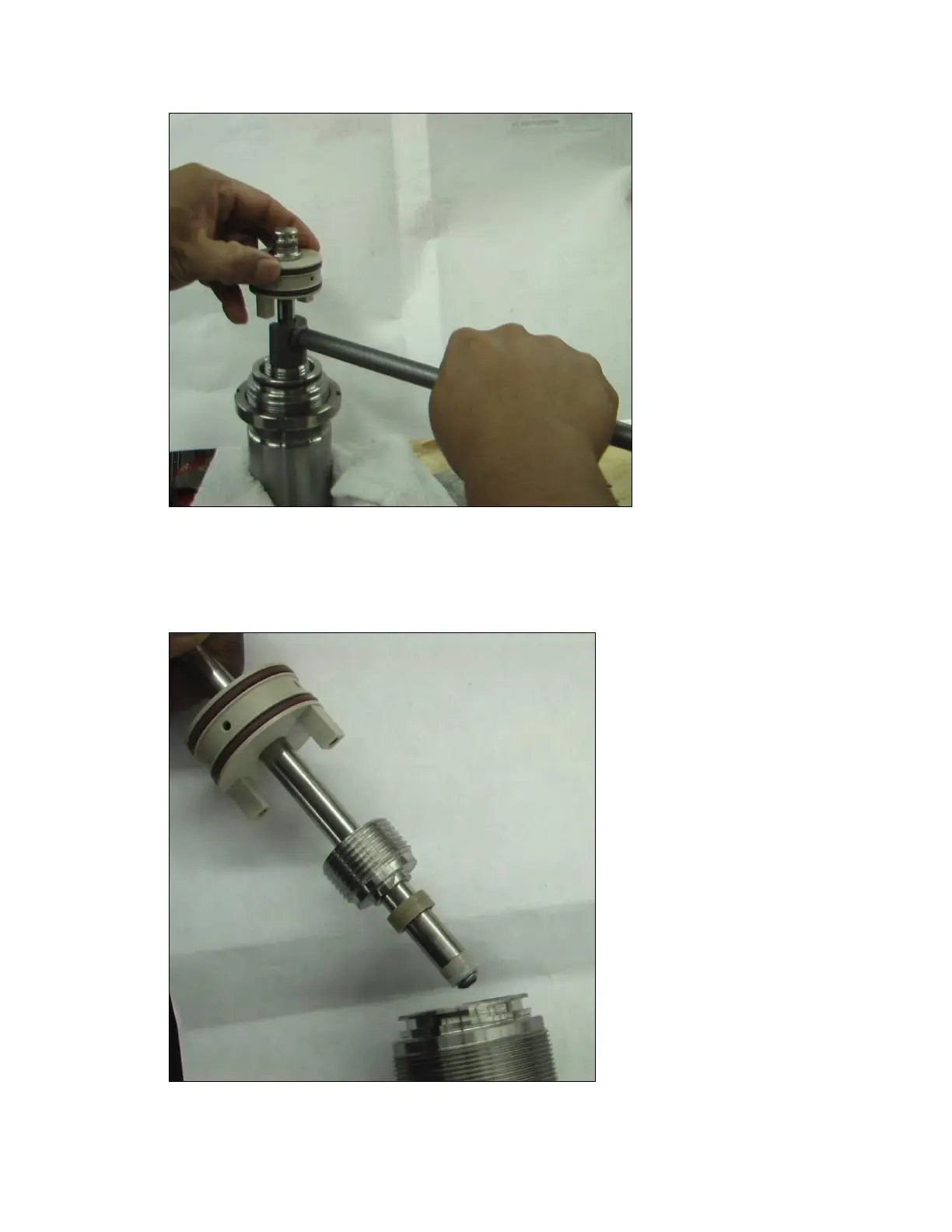

Figure 4.5 Removal of the bearing retainer using tool #801.13470
6. Loosen the bearing retainer and remove by sliding up onto the piston.
7. Pull out the piston from the liquid end body. The two backup rings (7) should remain on
the piston. Refer to Figure 4.6.
Figure 4.6 Removal of the piston assembly from the liquid end
