REAR L
Product connection and operation
5
Introduction
19. Servicing - Do not attempt to service this product yourself, as opening or removing covers may expose you to dangerous
voltage or other hazards. Refer all servicing to qualified service personnel.
20. Please remove the power plug form the main power source or wall power source when not in use. When plugged in to a
power source, the system is in standby mode, so the power is not entirely cut off.
21. Replacement parts - When replacement parts are required, ensure the service technician has used replacement parts
specified by the manufacturer or have the same characteristics as the original part. Unauthorized substitutions may
result in fire, electric shock or other hazards.
22. Mains fuses - For continued protection against fire hazard, use fuses only of the correct type and rating. The correct fuse
specification for each voltage range is marked on the product.
23. Do not turn up the volume while listening to a section with very low level inputs or no audio signals. If you do, the speaker
may be damaged when a peak level section is suddenly played.
24. The only means of completely disconnecting the product from the power supply is by removing the power cord from the
wall outlet or the product. The wall outlet or the power cord entry to the product must remain freely accessible at all times
while the product is in use.
25. Try to install the product near a wall socket or exetension cord and shall be easily accessible.
o
26. The highest environmental temperature suitable for this product is 40 C.
Specifications
2
Features
5.1 surround woofer system with full range acoustic production and compact stand satellites
X-Bass design, Microlab own proprietory technology - Bass with natural depth and range
5.25" woofer system for deep vocal and bass effects. All magnetically shielded
Designed by Denmark acoustic expert, Peter Larsen V12 FineCone technology
Amplifier unit with full front controls and includes remote control
Package contents
X23 satellites 4pcs
X23 center satellite 1pc
X23 subwoofer 1pc
X23 amplifier unit 1pc
Remote control 1pc
Holder 5 stand
Signal cables 4pcs
Interconnect speaker cables 6pcs
User manual 1pc
Microlab premier range, the X series is based on the FINE CONE designed by Acoustic
expert, Peter Larsen. This design follows strict discipline in speaker designs to achieve
perfect linear frequency response curve. Uncolored audio, precise position, and high
resolution with Microlab own eAirbass technology.

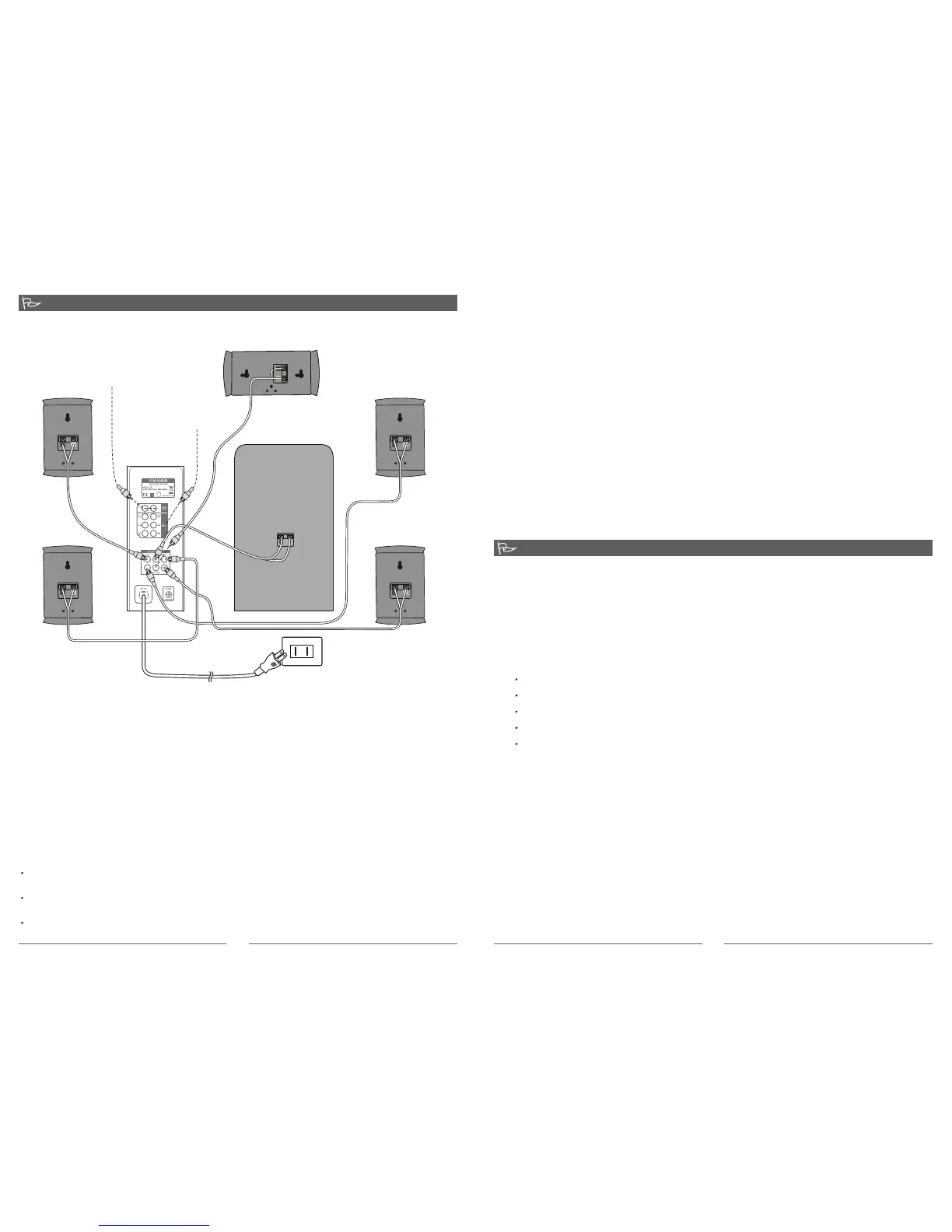

Instruction for system connection
1.Connect the Woofer, Front Left/Right, Center, Rear Left/Right Speaker Cables to the appropriate
Audio Output Sockets on the back of the Amplifier.
2.Connect one end of the 2RCA-2RCA Signal Cable to the appropriate 5.1 Input Socket of the Front
Left/Right, Center&Rear Left/Right Channel on the back of the Amplifier, the other end to the
appropriate Audio Output Sockets on the DVD.
3.If connect to any 2-channel source, just connect one end of the 2RCA-2RCA signal cable to the R/L
AUX Input Socket on the back of the Amplifier.
4.If connect to PC sound card or any source only with headset output, then please use the
2RCA-3.5mm Signal Cable.
5.Make sure all the cables are corrected correctly, connect the power plug to the correct AC outlet.
Remarks for the system positioning
The satellite speakers of this system are magnetically shielded which could be positioned besides
the PC monitor or near the TV.
The woofer is recommended to be put on the floor to get a better acoustic effect and at least 0.6m
away from the monitor or TV to avoid magnetic interference.
The satellite speakers and the woofer should be positioned firmly to avoid resonance.
Amplifier
Subwoofer
FRONT R
CENTER
REAR R
FRONT L
PC sound card or other
stereo audio source
DVD player or computer 5.1
channer sound card
AC power supply:
220V-240V~ 50Hz
