Micronta 22-214A - Controls and Functions

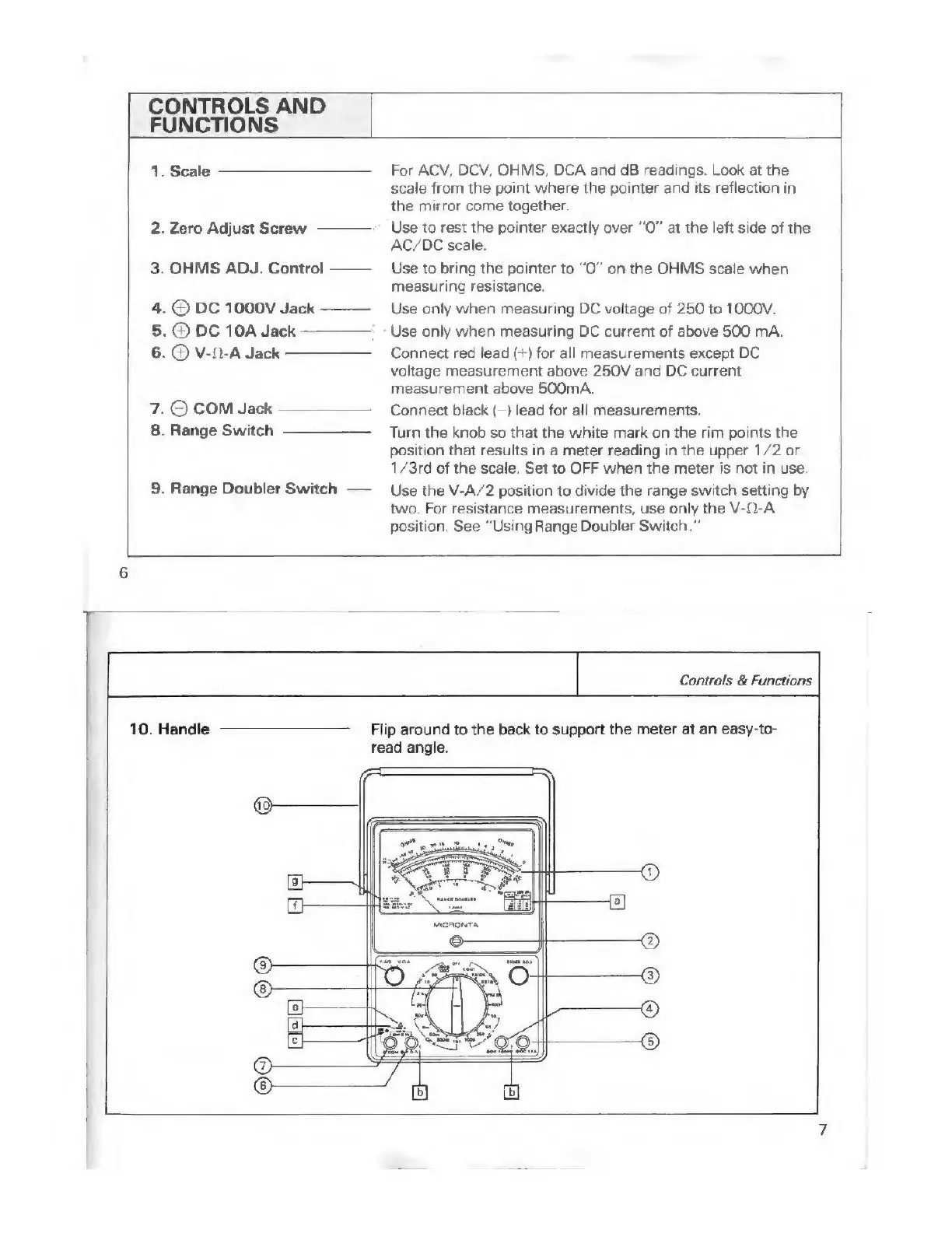

CONTROLS AND
FUNCTIONS
L
1. Scale For ACV, DCV, OHMS, DCA and dB readings. Look at the
scale from the point where the pointer and its reflection in
the mirror come together.
2. Zero Adjust Screw ———— __ Use to rest the pointer exactly over “0” at the left side of the
AC/DC scale.
3. OHMS ADJ. Control Use to bring the pointer to O" on the OHMS scale when
measuring resistance.
4. © DC 1000V Jack Use only when measuring DC voltage of 250 to 1000V.
5. ® DC 10A Jack ———— __ Use only when measuring DC current of above 500 mA.
6. © V-2N-A Jack Connect red lead (+) for all measurements except DC
voltage measurement above 250V and DC current
measurement above 500mA,
7. © COM Jack Connect black (—) lead for all measurements.
8. Range Switch Turn the knob so that the white mark on the rim points the
position that results in a meter reading in the upper 1/2 or
1/3rd of the scale. Set to OFF when the meter is not in use.
9. Range Doubler Switch — __ Use the V-A/2 position to divide the range switch setting by
two. For resistance measurements, use only the V-0Q-A
position, See ‘Using Range Doubler Switch.”
6
a ==
Controls & Functions
iis
[erat
nine
10. Handle Flip around to the back to support the meter at an easy-to-
read angle.
