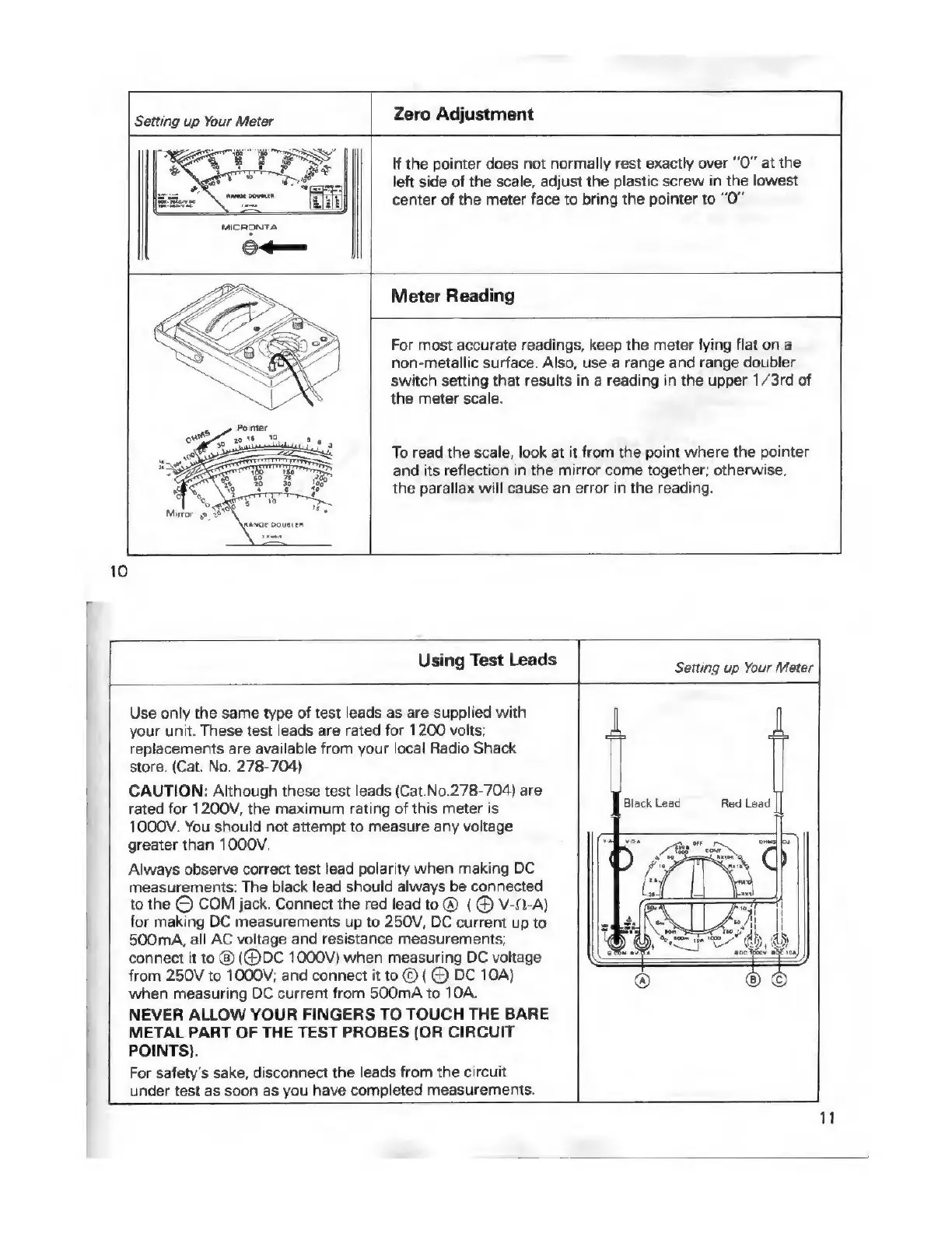

Setting
up
Your
Meter
Zero
Adjustment
MICRONTA
If
the
pointer
does
not
normally
rest
exactly
over
“O”
at
the
left
side
of
the
scale,
adjust
the
plastic
screw
in
the
lowest
center
of
the
meter
face
to
bring
the
pointer
to
“O”
Meter
Reading
the
meter
scale.
<7
Pointer
oes
8
ae
For
most
accurate
readings,
keep
the
meter
lying
flat
on
a
non-metallic
surface.
Also,
use
a
range
and
range
doubler
switch
setting
that
results
in
a
reading
in
the
upper
1/3rd
of
To
read
the
scale,
look
at
it
from
the
point
where
the
pointer
and
its
reflection
in
the
mirror
come
together;
otherwise,
the
parallax
will
cause
an
error
in
the
reading.
10
Using
Test
Leads
Setting
up
Your
Meter
Use
only
the
same
type
of
test
leads
as
are
supplied
with
your
unit.
These
test
leads
are
rated
for
1200
volts;
replacements
are
available
from
your
local
Radio
Shack
store.
(Cat.
No.
278-704)
CAUTION:
Although
these
test
leads
(Cat.No.278-704)
are
rated
for
1200V,
the
maximum
rating
of
this
meter
is
1000V.
You
should
not
attempt
to
measure
any
voltage
greater
than
1000V.
Always
observe
correct
test
lead
polarity
when
making
DC
measurements:
The
black
lead
should
always
be
connected
to
the
©
COM
jack.
Connect
the
red
lead
to@
(@
V-2-A)
for
making
DC
measurements
up
to
250V,
DC
current
up
to
500mA,
all
AC
voltage
and
resistance
measurements;
connect
it
to
®
(GDC
1000V)
when
measuring
DC
voltage
from
250V
to
1000V;
and
connect
it
to
©
(@
DC
10A)
when
measuring
DC
current
from
500mA
to
10A.
NEVER
ALLOW
YOUR
FINGERS
TO
TOUCH
THE
BARE
METAL
PART
OF
THE
TEST
PROBES
(OR
CIRCUIT
POINTS).
For
safety’s
sake,
disconnect
the
leads
from
the
circuit
under
test
as
soon
as
you
have
completed
measurements.
i
Black
Lead
Red
Lead
f
I
Cine
Gar
Ne
|
pases!
®,
11
