This interface supplies 'Power Good' indication signals coming from power supplies, indicating operating/failed
power supply status and a hot-swap signal for a hot-swappable PoE application.
MB: J1
Pin No. Signal Name Description
1
PG0
'Power good' signal – power supply status indication.
2
PG1
'Power good' signal – power supply status indication.
3
PG2
'Power good' signal – power supply status indication.
4
PG3
'Power good' signal – power supply status indication.
5
GND_D
Digital ground at PoE domain.
6
xHSWP
Hot Swap control signal, indicating PoE application is hot swappable.
 Manufacturer: CviLux
 Manufacture part number: CI25-06P1V00

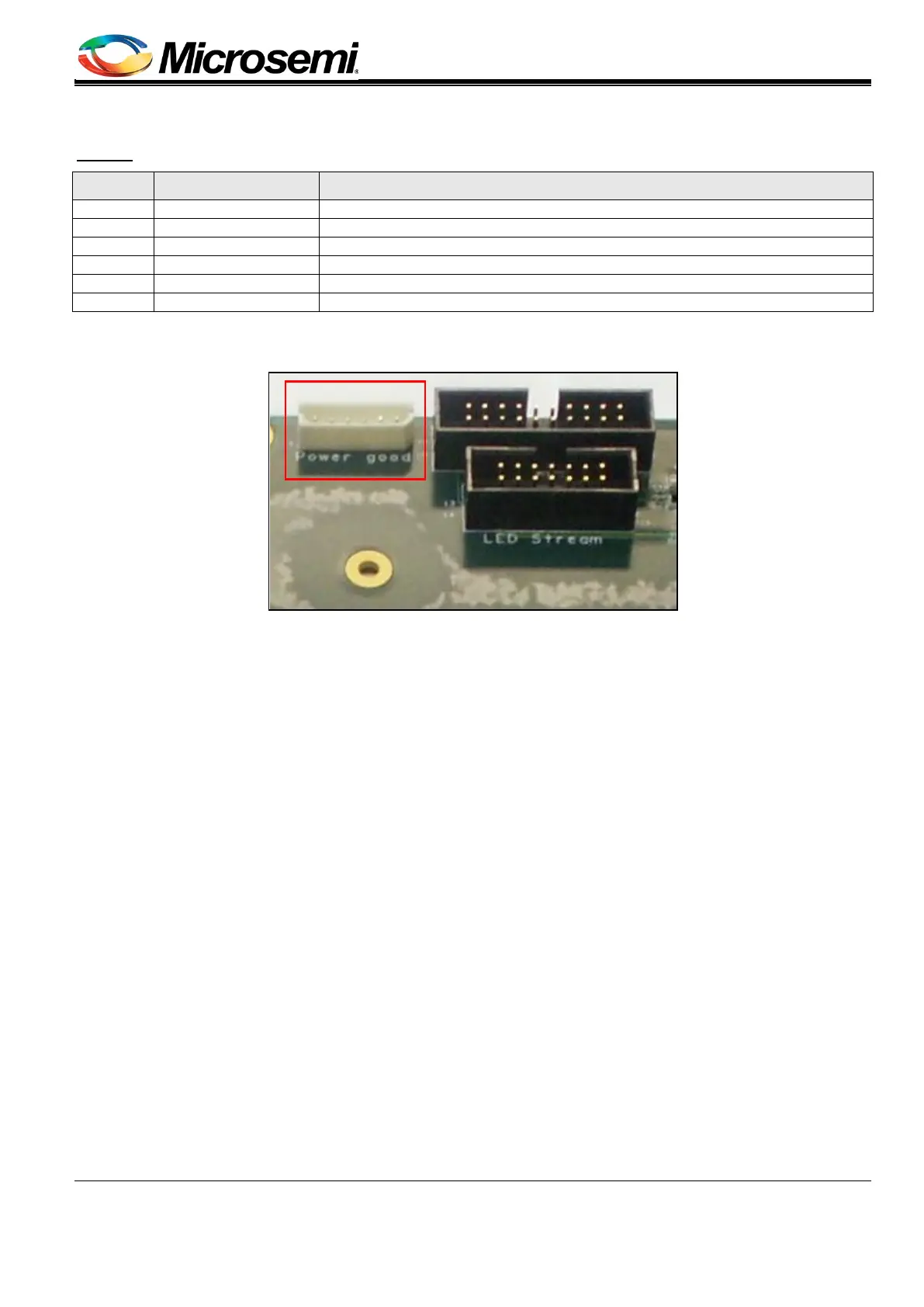

Figure 17: External Power Supplies
