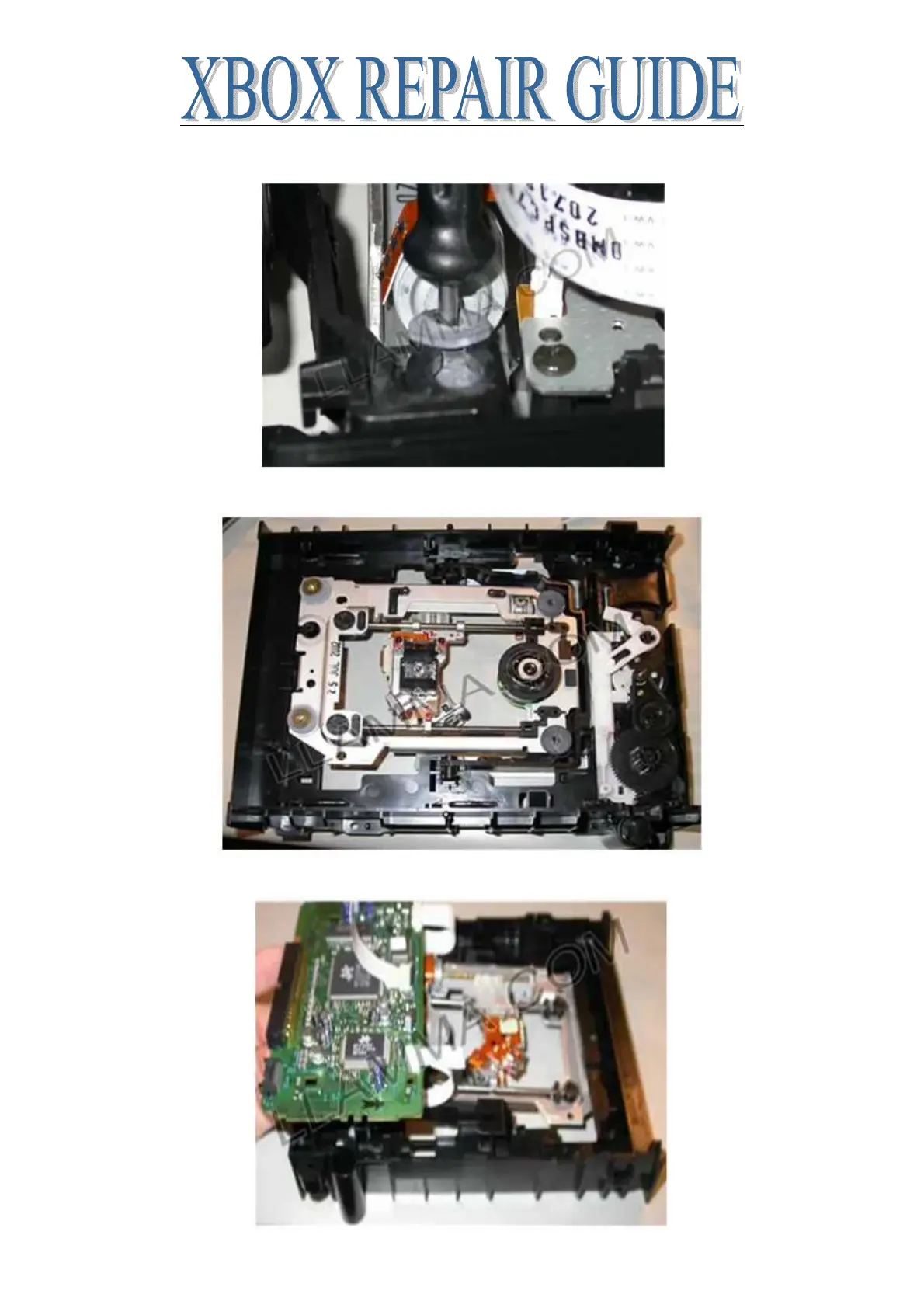

Re-assembly - Install the laser assembly back into the chassis, put the shaft of a small
screwdriver through the hole in the center of the rubber grommet and push it into place
Note the large headed screws on the left in this picture have been installed
Lay the PCB on top of the chassis and reconnect two ribbon cables
