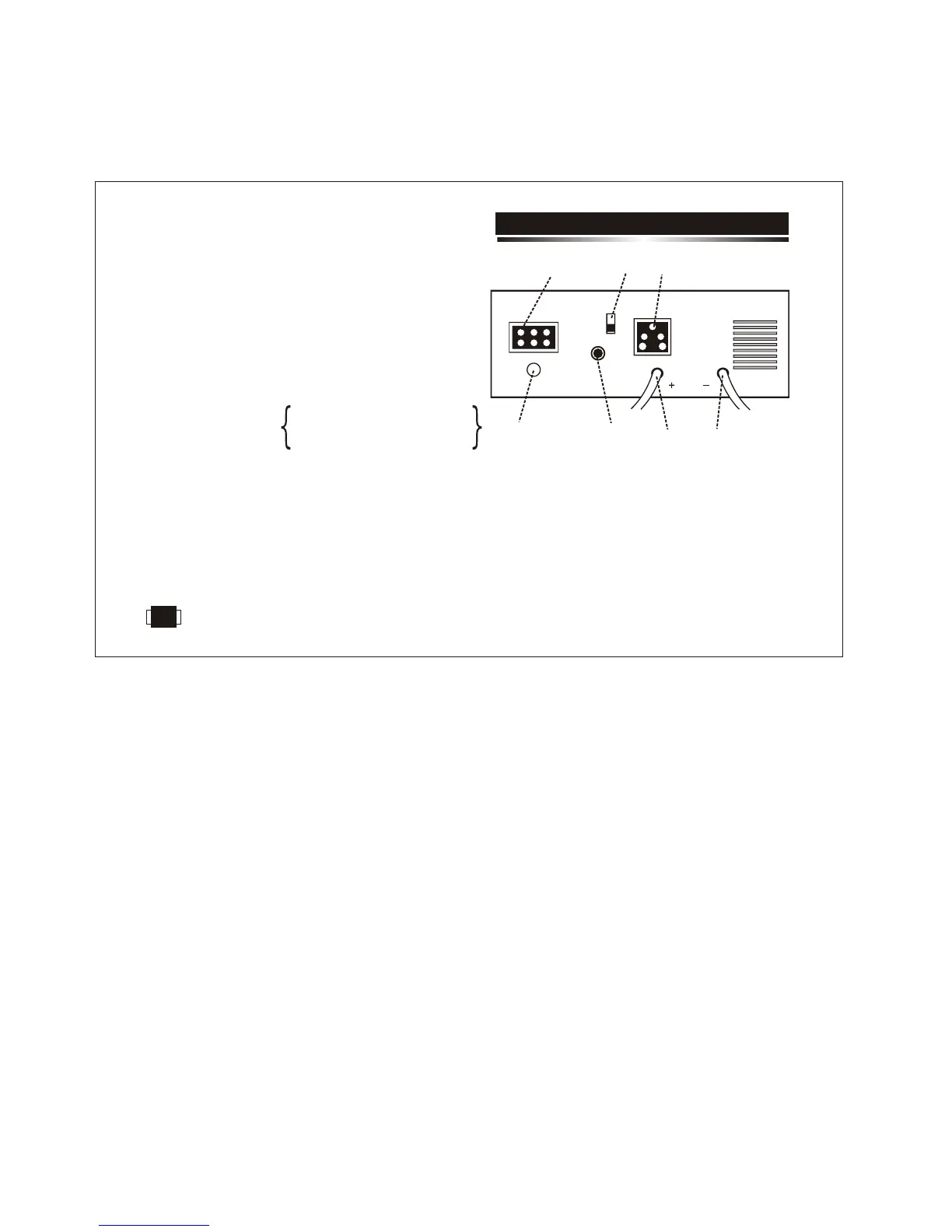

BACK PANEL
N E L
7
1
6
2
3
4
5
1. Mains Input Terminal Block for AC input.
2. Circuit Breaker for mains overload / short circuit protection.
(4Amps/7Amps for IN-600VA Model, 8Amps/10Amps for
IN-800VA Model & 10Amps/16Amps for IN-1400VA Model).
3. Output socket for load.
4. Positive Battery Lead.
5. Negative Battery Lead.
.
7. Fuse (10Amp Slow Blow for all models) for Charger.
6 Slide Switch to Select the Maximum Charging Voltage.
(HIGH= 14.2V DC / Standard (STD)= 13.8 V DC).
Select the appropriate Voltage as recommended by the Battery
Manufacturer/Supplier.
CAUTION: Proper selection of switch position is recommended based on the battery manufacturers specifications,
for proper backup and also to avoid any damage to the battery due to wrong selection.
In case of IN-600VA / IN-800VA - 12V Batt. Sys.
In case of IN-1400VA - 24V Batt. Sys.
