Quick Start Guide 1312 M32C DIGITAL RACK MIXER

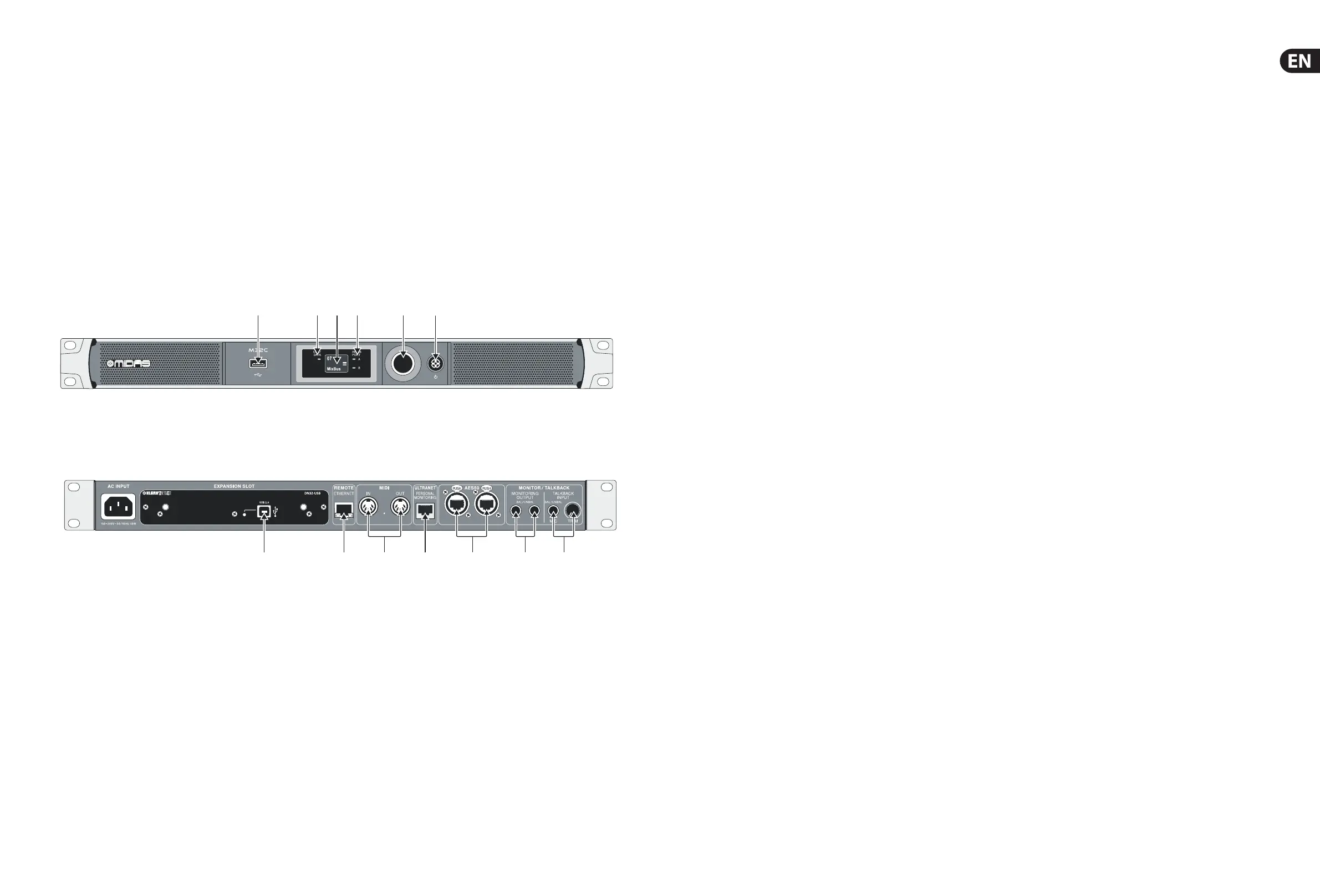

M32C DIGITAL RACK MIXER Controls
Step 2: Controls
(1) USB input allows connection of USB
ashdrives for rmware updates,
loading/saving scenes and show les,
and playing back or recording WAV les.
(2) DATA/USB LED lights to indicate that a
ashdrive has been connected and that the
data has been successfully accessed.
(3) DISPLAY shows the M32C model name after
power-up, and displays relevant information
when editing scenes and setup menus.
(4) NETWORK LINK LEDs will light green to
indicate proper sync, light red to indicate
a sync error, and remain unlit when no
connection is present.
(5) SELECT knob navigates the display menus
and edits setup parameters. See the SELECT
Knob Functions section for details.
(6) POWER button turns the unit on and o .
(7) DN32-USB interface card allows up to
32 channels of bidirectional audio to be
transmitted to and from a computer.
(8) ETHERNET connector allows full OSC-based
remote control of the M32C.
(9) MIDI IN/OUT allows the unit to send and
receive MIDI commands via standard 5-pin
DIN cables.
(10) ULTRANET connector sends 16 channels of
audio to a P16 monitoring system.
(11) AES50 A and B connectors allow 96 channels
of bidirectional audio for connection to DL16
digital snakes or other M32 family products.
Shielded CAT-5e cable should always be used
for AES50 connections between M32 and
DL16 units.
(12) MONITORING OUTPUT jacks allow connection
of active monitor speakers via balanced or
unbalanced ¼ " cables.
(13) TALKBACK input accepts a dynamic
microphone via ¼ " TRS jack. Adjust the gain
with the adjacent TRIM knob.
