FLEX-AUGER Installation & Operator’s Manual
•
Page 11

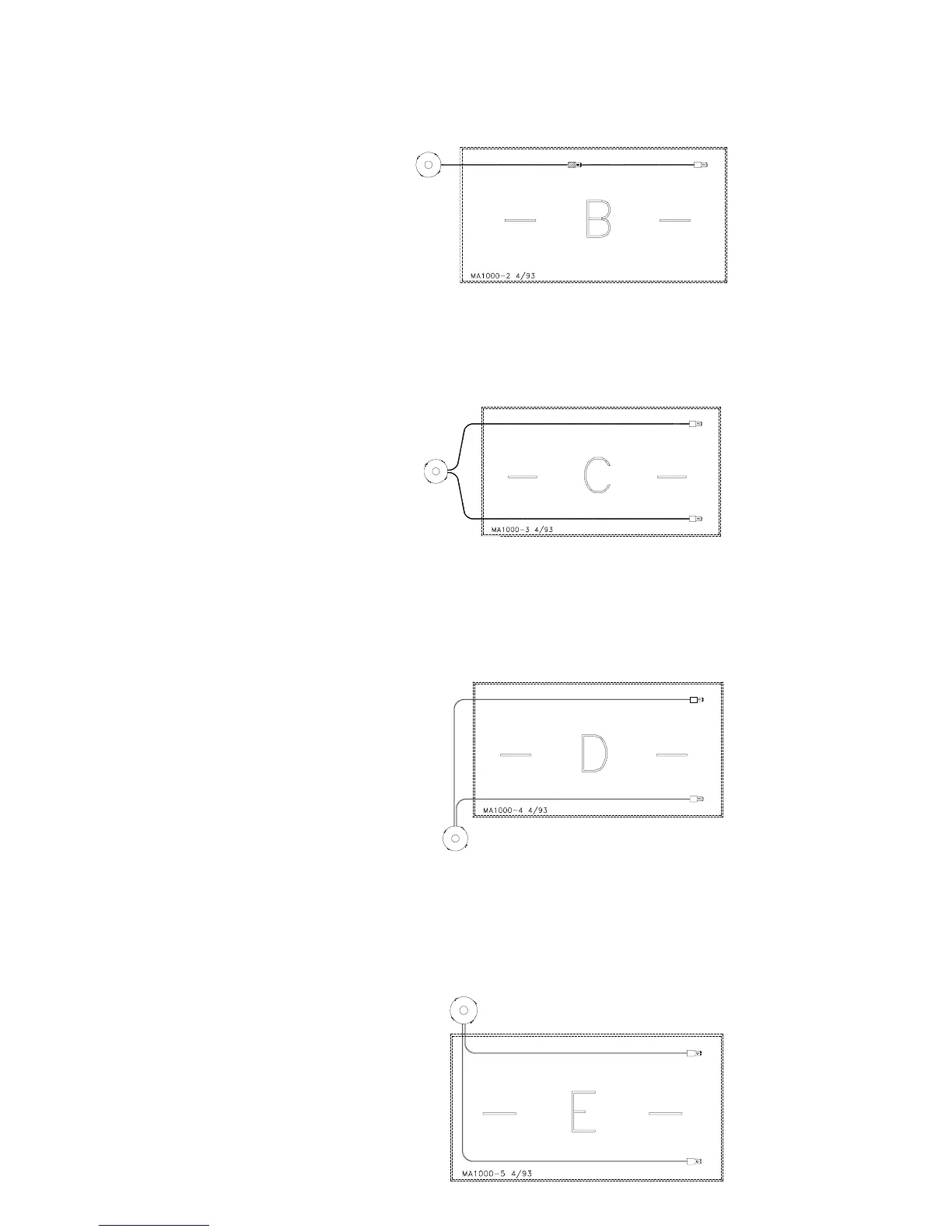

System B represents an extended length system. Equalize the power
requirements of each part of the system. Optional equipment required.
System C utilizes right-hand and left-hand 90 degree turns. The eleva-
tions should be accomplished within the elbows.
System D utilizes right-hand 90 degree turns. The elevations should
be accomplished within the outside elbows. This system would be
recommended over system E since it eliminates additional elbows
and left hand turns.
System E uses one additional 90 degree elbow after entering the build-
ing. Note that the elbows are left-hand turns. This system would be im-
proved if the feed bin were moved to the opposite side of the building
to provide right-hand turns instead.
