FLEX-AUGER Installation & Operator’s Manual
•
Page 12

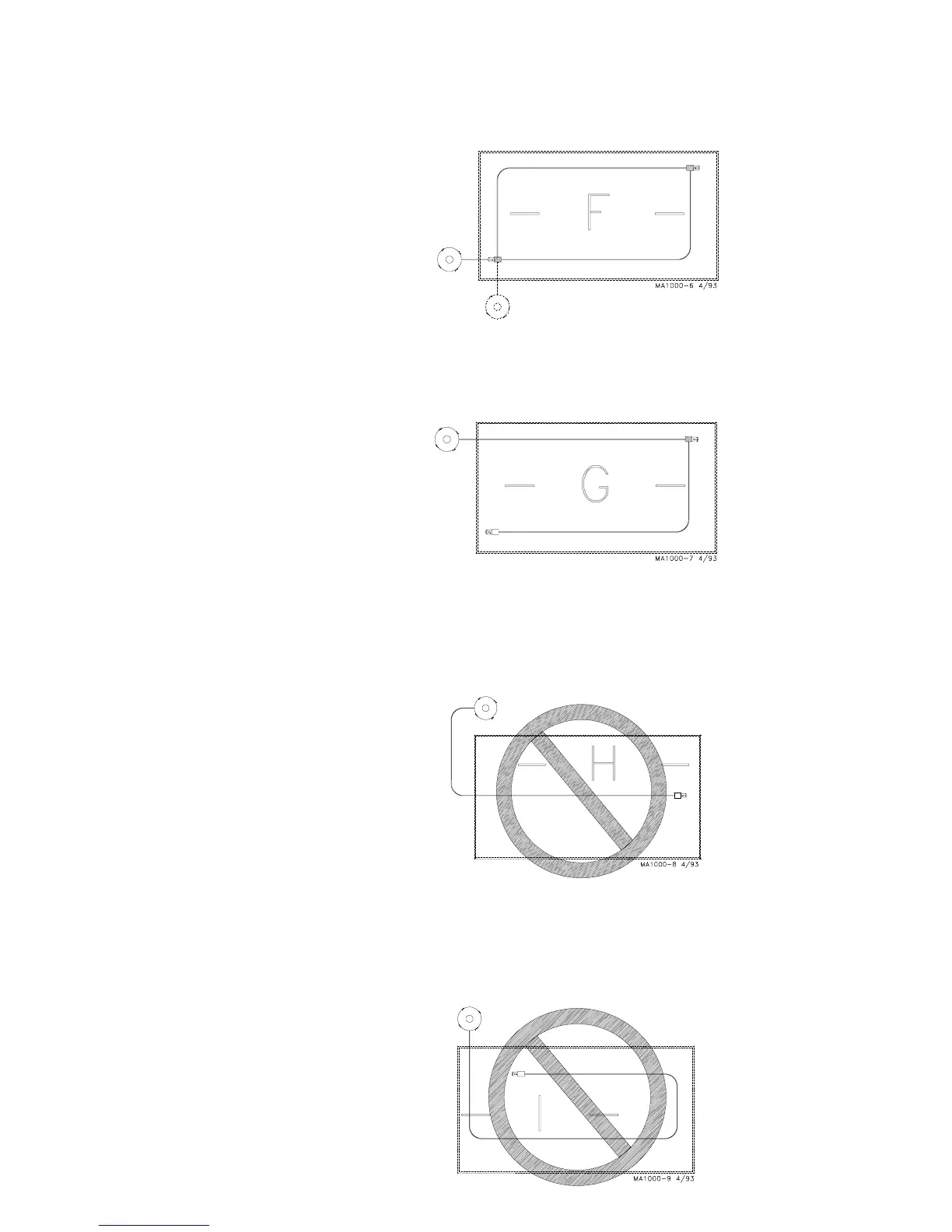

System F represents a circulating feed delivery system with optional
bin placement. This system is used where a continuous supply of
feed is needed or when it is difficult to use a control switch. Optional
equipment required.
System G represents an extended length system with one additional 90
degree elbow. This is acceptable, but Systems C or D would be recom-
mended (to reduce excessive run time). Optional equipment required.
NOT ALLOWED. System I is not recommended, due to 180 degree,
left-hand turns. Excessive elbow wear and erratic auger operation
would be expected. Systems D, E, or G would be recommended.
NOT ALLOWED. System H is not recommended, due to 180 degree,
left-hand turns. Erratic auger operation would be expected. The feed
bin should be relocated or an Extension Hopper should be utilized as
in System G.
