Middleby Marshall PS360 SERIES User Manual

IV. THERMOCOUPLE INSTALLATION
1. Install the thermocouple sensing bulb into the correct
hole in the rear of the oven, as shown in Figure 2-3.
2. Thread the thermocouple lead through the grommet
and into the machinery compartment.
3. Remove the right-side access panel of the machinery
compartment.
4. Thread the thermocouple lead through the side of the
machinery compartment as shown in Figure 2-4, and
into the electrical box (at the right-front of the machin-
ery compartment).
5. Connect the thermocouple leads to the temperature
controller as shown in Figure 2-5.
6. Repeat Steps 1-5 for each of the other oven sections in
the installation.
8=White=Positive
7=Red=Negative
R=No Connection
Ground=Shielded cable

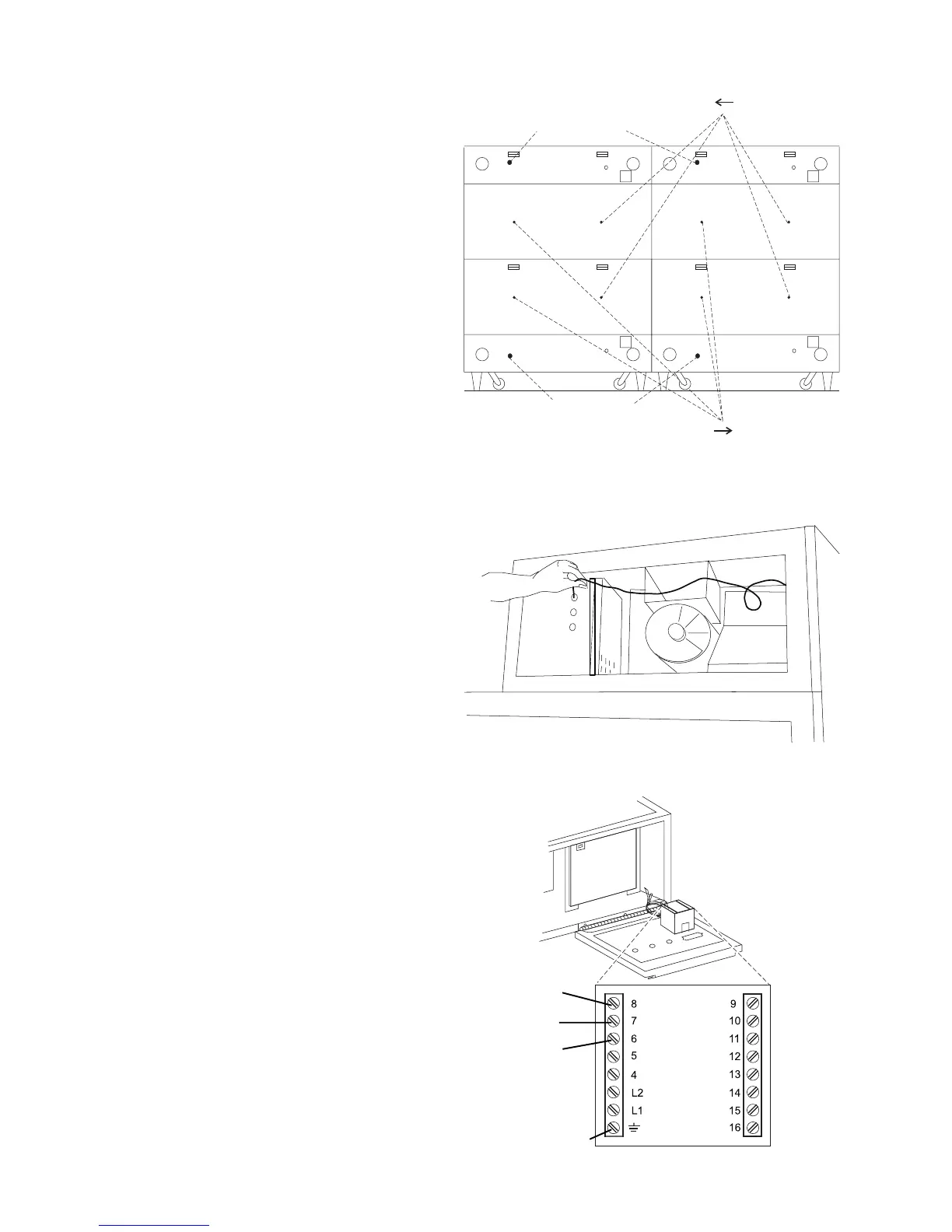

Figure 2-3
Thermocouple Installation Locations
Figure 2-4
Placing the Thermocouple Leads
Figure 2-5
Thermocouple Lead
Connections
Use for conveyor
Use for conveyor
Thread lead into
machinery
compartment here
Thread lead into
machinery
compartment here
