Middleby Marshall PS360 SERIES User Manual

2-2
SECTION 2
INSTALLATION
Item Part # Description Tandem Double Tandem Tri Tandem Quad Tandem
1 22361-0001 Flexible Gas Hose 2434
2 22450-0028 Adjustable Legs 8 8 12 16
3 30773 Flue Vent, 14"Lg. 2 - - -
4 30759 Flue Vent, 29-1/2"Lg. - 2 3 4
5 30758 Flue Vent, 50" Lg. - 2 - -
6 21256-0008 Screw, 10-32 x 3/8 A/R A/R A/R A/R
7 35000-1103 Conveyor End Stop - PS360 1 2 - -
35000-1899 Conveyor End Stop - PS360WB
8 21292-0001 Scr, #2PT 10-16 x 3/4 Hx Wsh A/R A/R A/R A/R
9 33984 Thermocouple 2434
10 27276-0001 Cable Clamp 2434
11 1002040 Warranty, Parts & Serv. Dist.List 1111
12 39223 Owners Operating and Installation Manual (English) 1111
13 27126-0238 11 Piece Hex Key Set 1111
14 31389 Silicone Tubing, 36 (914mm) L x 2434
5/16 (8mm) ID x 7/16 (11mm) OD
- 35000-1454 Machinery Compartment Trim Strip 1222
- 35000-1456 Front Gasket Spacer 2444
- 35000-1457 Rear Gasket Spacer 2444
- 37200-0013 Baking Chamber Gasket and Frame - PS360 1222
32483 Baking Chamber Gasket and Frame - PS360WB

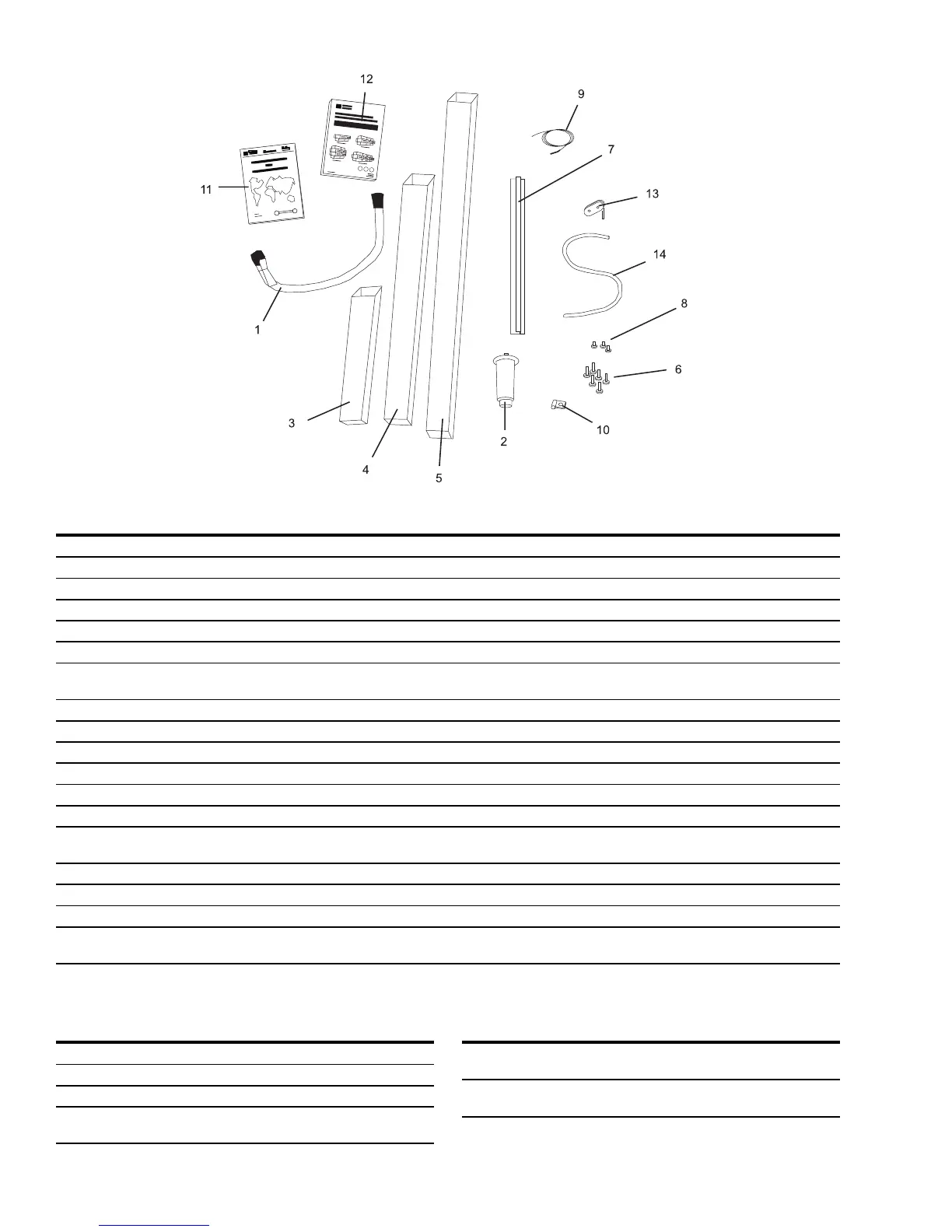

Fig. 2-1 - Installation Kit
I. INSTALLATION KIT
II. TRANSITION CHAMBER COMPONENTS (Quad Tandem Ovens Only)
Qty. Part # Description
1 37000-0696 Floor Panel - PS360
32457 Floor Panel - PS360WB
1 48009-0024 Top Panel - PS360
32456 Top Panel - PS360WB
Qty. Part # Description
1 48009-0025 Side Wall
1 35000-1748 Rear Support
2 35000-1749 Front Support
2 37000-0697 Top Support Channel - PS360
32455 Top Support Channel - PS360WB
