Page 14
NOTICE

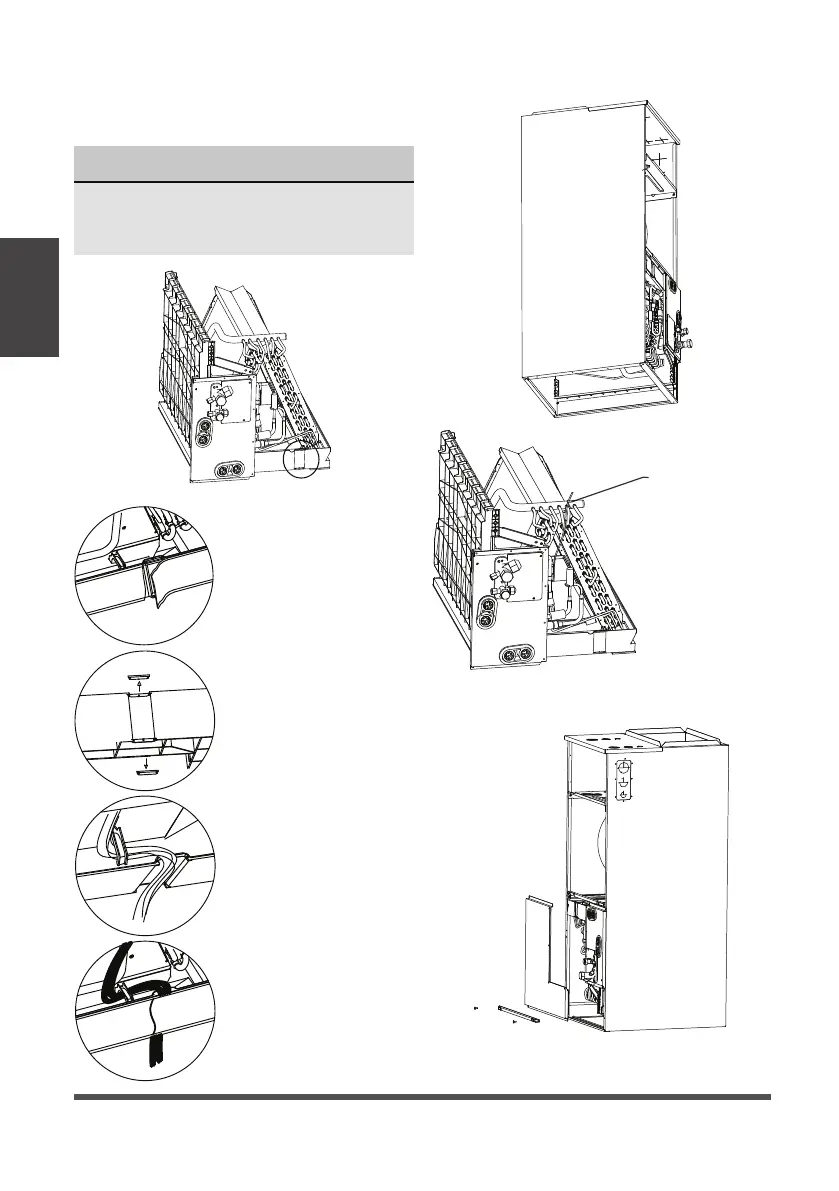

The wire body needs to pass through
the wire groove from the drain pan and
be stuck on the hook of the drain pan.
9. Reinstall T1, T2, T2A, T2B sensor
plugs and electronic expansion valve
(EEV) and tie up the sensor wires.
10. The evaporator is assembled in place.
11. Reinstal evaporator cover plate.
12. Connect the wire according to the
wiring diagram.
Use cable ties
to fix the room
temperature
sensor as
shown in the
figure.
Cut the foam gasket.
Remove knockouts as
shown in the figure.
Hook the wire into the
buckle and go down
from the wire slot.
Replace foam gasket.
Indoor Unit
Installation
