Lighting
●
●
●
●
●
●
●

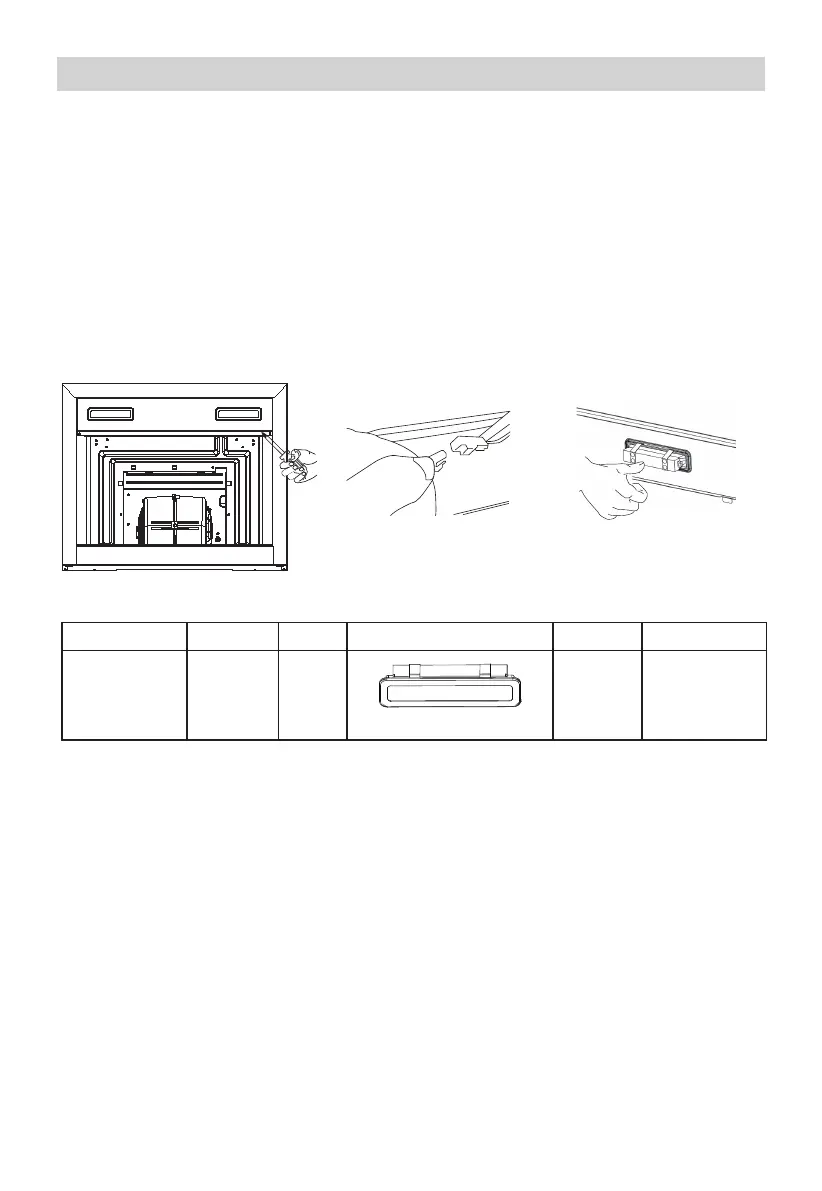

Press LED light on the front of front plate, install the LED light on the front plate.
Connect the terminal of LED light and light leads.
Carefully fasten the 2 screws on the front plate ,reinstall the grease filter.
●
●
●
Cannot replaced the light bulbs, the entire light module has to be replaced.
When changing the light modules, the contacts are live.
Before changing the light module(s), unplug the appliance from the mains or switch off
the circuit breaker in the fuse box.
Remove the grease filter and carefully remove the 2 screws from the front plate (a
cross headed screwdriver will be needed to remove the screws).
Disconnect the terminal of LED light.
Press LED light on the back of the front plate, take the LED light out.
Replace the lamp(commercially available LED lamp (max.1.5W).
LIGHT REPLACEMENT(Completed by professionals)
Replacing the light modules
Max PowerLamp type Voltage Picture Lamp Cap ILCOS D code
LED modules,
separate ballast
Square/Diameter: 33.2mmx120mm
1.5W DC 12 V
——
DSS-1.5-S-33.2
/120
rectangular lamp
