08
●
●
●
●
Fix the brackets :
Drill holes at the marked points with a Φ10 mm drill bit.
Insert the Wall Plugs 11 into the holes.
Fix the hood fixing bracket 20 with 3 screws 10 (5 x 50) at the horizontal line A.
Fix a Chimney fixing bracket 21 with 2 screws 10 (5 x 50) at the horizontal line B.
●
●
●

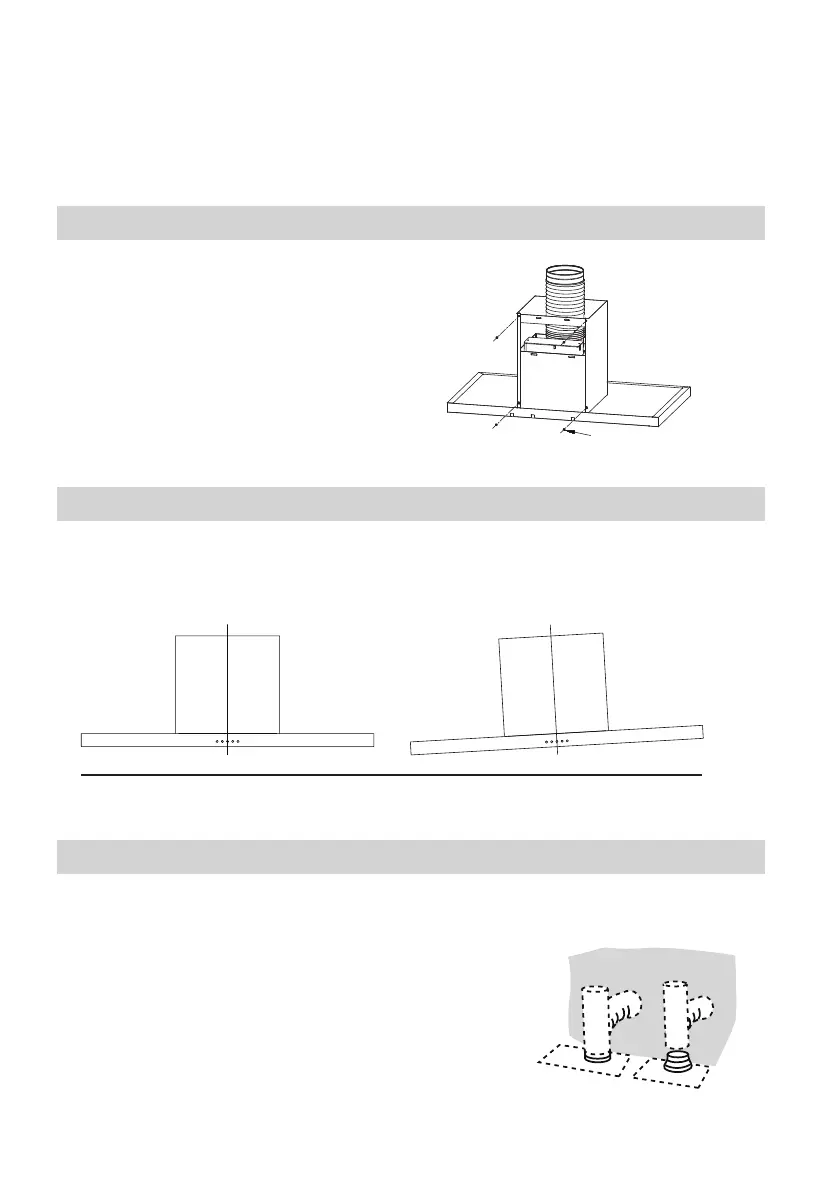

Hook The Hood Body
Right Wrong
Hook the hood body to the bracket 20.
Level the hood body itself.
Remove the filter from the inside of the hood body, fix the screws 10 to Wall Plugs 11
at the points (3).
●
Lower Decorative Chimney
4×Screws(ST4.2*9.5)
Fix the exhaust pipe on the hood body,
connect chimney and hood body with 2
screws 12. connect chimney fixing bracket
and chimney with 2 screws 12.
ɸ120
ɸ150
9
●
●
●
Connections
If to install a Φ120 mm air exhaust connection, insert
the reducer flange 3 on the hood body outlet.
Fix the pipe 4 in position using sufficient pipe clamps
(not supplied).
Remove possible charcoal filters.
When installing the ducted version, connect the hood to the chimney using either a
flexible or rigid pipe ɸ150 or ɸ120 mm, the choice of which is left to the installer.
