Midea Aqua Tempo Super MC-SP25-RN1L

Aqua Tempo Super Series air cooled scroll chiller unit (50Hz) MCAC-ATSM-201606
57
No.
Part Name
Qty
No.
Part Name
Qty
1
Bottom panel II ass'y
2
14

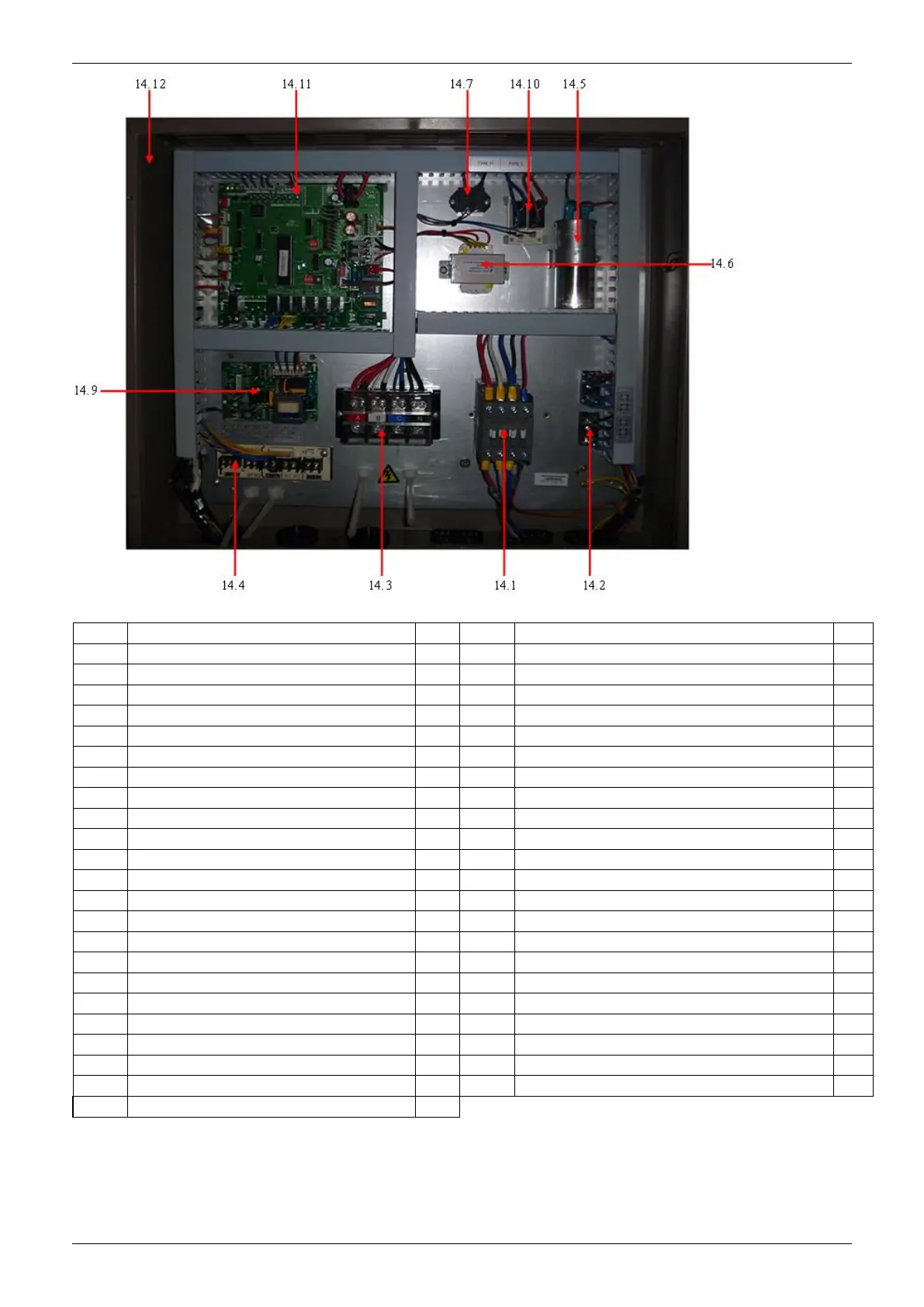

Outdoor electrical box ass'y
1
2
Column
4
14.1
AC contactor
1
3
Gas-liquid separator
1
14.2
Terminal block
1
4
Suction pipe ass'y
1
14.3
Wire joint
1
5
Compressor
1
14.5
Capacitor
1
6
Condenser's guard plate I ass'y
1
14.6
Transformer
1
7
Condenser's guard plate III ass'y
2
14.7
Relay
1
8
Condenser hoisting parts
1
14.9
Low temp. cooling module ass'y
1
8.2
Upper frame welded parts
1
14.10
E-heater control board ass'y
1
8.3
Install base welding parts of water pan
1
14.11
Outdoor main board ass'y
1
8.4
Seal plate
1
14.12
Welded parts of electrical box
1
8.5
Water pan
1
15
Welded parts of base
1
8.6
Support ass'y of motor
1
16
Double pipe heat exchanger
1
8.7
Top cover ass'y
1
17
Four-way valve ass'y
1
8.8
Outlet net cover
1
17.1
4-way valve
1
8.9
Condenser parts
1
17.2
Meter connector
2
8.10
Asynchronous motor
1
17.3
Pressure switch
1
9
Condenser's guard plate II ass'y
1
18
Bottom panel I ass'y
1
10
Bottom panel III ass'y
1
19
Total water temperature mouth components
1
11
Input pipe ass'y of evaporator
1
20
Indoor temp. sensor ass'y
1
11.2
Electronic expansion valve
1
21
Pipe temp. sensor ass'y
1
12
Fixed panel board
1
22
Pipe temp. sensor ass'y
5
13
Piping support plate
1
