Midea Aqua Tempo Super MC-SP25-RN1L

Aqua Tempo Super Series air cooled scroll chiller unit (50Hz) MCAC-ATSM-201606
67
No.
Part Name
Qty
No.
Part Name
Qty
1
Pressure sensor
1
20.5
Water pan
1
2
Pipe temp. sensor ass'y
4
20.6
Support ass'y of motor
1
3
Column
4
20.7
Top cover ass'y
1
4
Support board of plate heat exchanger
1
20.8
Outlet net cover
1
5
Parts of plate heat exchanger
1
20.9
Parts of condenser
1
5.1
Outlet water pipe ass'y II
1
20.10
Asynchronous motor
1
5.2
Plate heat exchanger
1
21
Condenser's guard plate II ass'y
1
5.3
Electric heating strip
1
22
Bottom panel III ass'y
1
6
Fixed board ass'y of plate heat exchanger
1

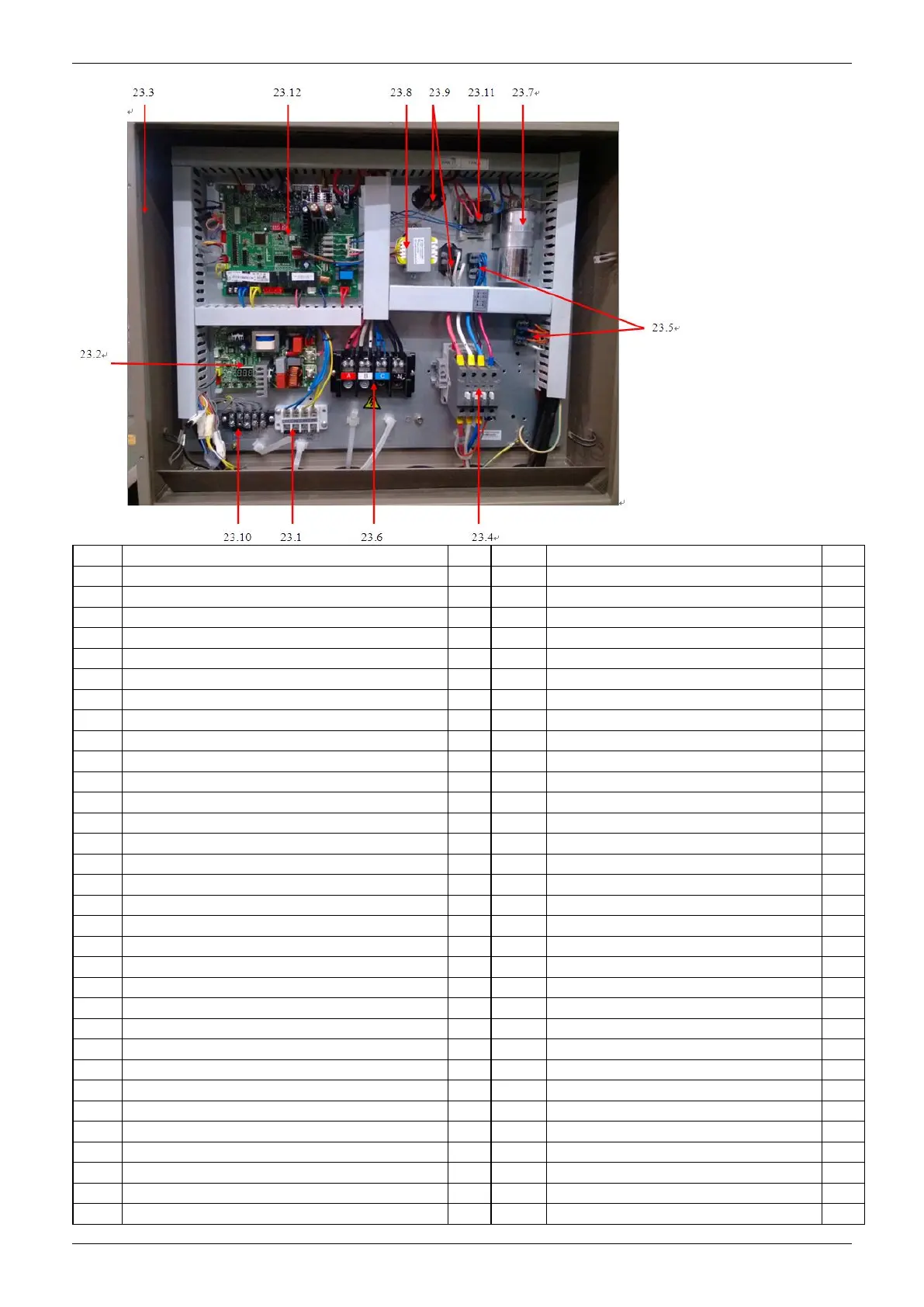

23
Outdoor electric control box ass'y
1
7
Welded parts of base plate
1
23.1
Wire joint,4p
1
8
Inlet water pipe parts
1
23.2
Outdoor main control board ass'y
1
9
Four-way valve ass'y
1
23.3
Welded parts of electrical box
1
9.1
Meter connector
2
23.4
AC contactor
1
9.2
Pressure switch
1
23.5
Terminal block
3
9.3
Pressure switch
1
23.6
Wire joint
1
9.4
4-way valve ass'y
1
23.7
Capacitor
1
10
Output water pipe ass'y III
1
23.8
Transformer
1
11
Compressor
1
23.9
Relay
2
12
Gas-liquid separator
1
23.10
Wire joint, 5p
1
13
Under panel ass'y I
1
23.11
E-heater control board ass'y
1
14
Pipe temp. sensor ass'y
1
23.12
Outdoor main board ass'y
1
15
Indoor temp. sensor ass'y
1
24
The door of electrical control box
1
16
Suction pipe ass'y
1
25
Piping fixed plate
1
16.1
Pressure controller
1
26
Under rain-proof board ass'y
1
17
Bottom panel II ass'y
2
27
Differential pressure switch parts
1
18
Condenser's guard plate III ass'y
2
27.1
Differential pressure switch
1
19
Condenser's guard plate I ass'y
1
28
Input pipe ass'y of evaporator
1
20
Hoisting parts of condenser
1
28.1
Pipe joint
1
20.1
Axial fan
1
28.2
Electronic expansion valve
1
20.2
Upper frame welded parts
1
29
Fixed plate II of plate heat exchanger
1
20.3
Base welded parts of water pan
1
30
Fixed board of panel
1
20.4
Seal plate
1
31
Support board of piping
1
