Midea Aqua Tempo Super MC-SP35M-RN1L

Aqua Tempo Super Series air cooled scroll chiller unit (50Hz) MCAC-ATSM-201606
63
No.
Part Name
Qty
No.
Part Name
Qty
1
Column
4
18.2
Auxiliary plate ass'y of relay
1
2
Suction pipe ass'y
2
18.3
Outdoor main board ass'y
1
3
Base welded parts
1
18.4
AC contactor
2
4
Gas-liquid separator
2
18.5
Transformer
1
5
Compressor
2
18.6
current transformer
2
6
Pipe support IV
1
18.7
Wire joint, 5p
1
7
Front panel ass'y
2
18.8
Wire joint
1
8
The middle plate
1
18.9
Terminal block
2
9
Electrical maintenance board
1
18.10
Terminal block
1
10
Electric control box of the door
1
18.11
Capacitor
2
11
Throttle parts I
1
19
4-way valve ass'y II
1
11.1
Electronic expansion valve
1
19.1
Four-way valve kit (RoHS)
1
12
Side panel ass'y
2
19.2
Pressure controller
1
13
Panel connection plate
2
19.3
Pressure controller
1
14
4-way valve ass'y I
1
20
Throttle parts II
1
14.1
Four-way valve kit (RoHS)
1
20.1
Electronic expansion valve
1
14.2
Pressure switch
1
21
Shell and tube evaporator
1
14.3
Pressure controller
1
22
Middle backplate
1
15
Hoisting parts of condenser
1
23
Front-left panel ass'y
1
15.1
Middle frame welded parts
1
24
Front-right panel ass'y
1
15.2
Connection plate ass'y of condenser
2
25
EEV solenoid coil
1
15.3
Water pan
2
26
Electronic expansion valve coil
1
15.4
Condenser parts
2
27
R410A
13
15.5
Support ass'y of motor
2
28
Total water temperature mouth components
1
15.6
Asynchronous motor
2
29
Wired controller
1
15.7
Axial fan
2
30
Pipe fixing clamp
2
15.8
Outlet net cover
2
31
Pipe clamp B
2
15.9
Top cover ass'y
2
32
Pipe clamp B
1
15.10
Upper frame welded parts
1
33
Sealplate
2
16
Pipe support II
1
34
Cover of wire slot
1
17
Pipe support I
2
35
Compressor support ass'y
2

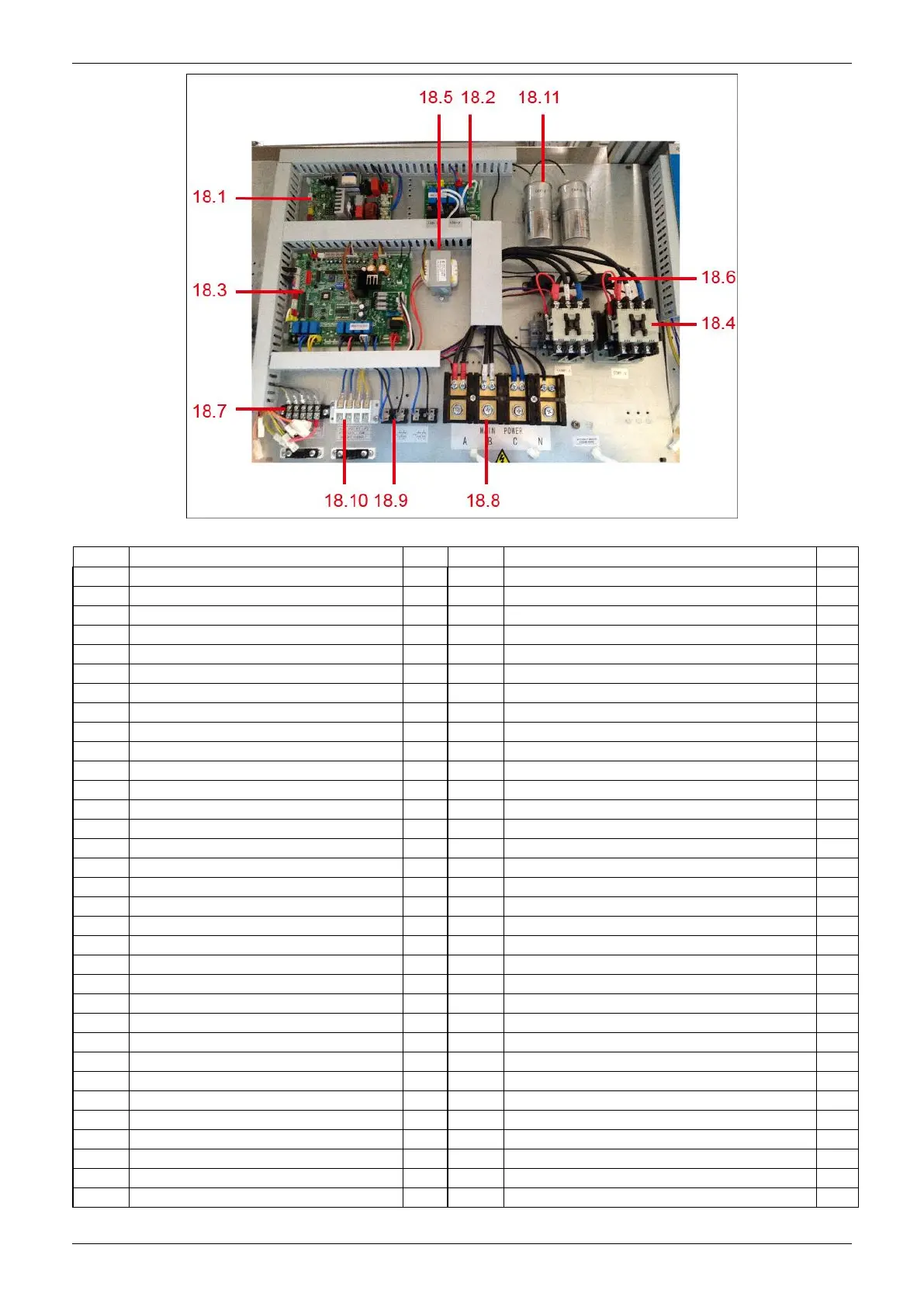

18
Outdoor electric control box ass'y
1
36
Pipe support III
1
18.1
Outdoor main control board ass'y
1
37
Wire slot ass'y
1
