Midea Aqua Tempo Super MC-SP35M-RN1L

Aqua Tempo Super Series air cooled scroll chiller unit (50Hz) MCAC-ATSM-201606
65
No.
Part Name
Qty
No.
Part Name
Qty
1
Hoisting parts of condenser
1
6.10
Fan relay control board
1
1.1
Upper-frame ass'y
1
6.11
AC contactor
2
1.2
Motor(three-phase asynchronous)
2
6.13
Electronic installation board ass'y
1
1.3
Axial fan
1
7
Electrical box door
1
1.4
Net
2
8
Under rain-proof baffle
1
1.5
Axial fan
1
9
Column
4
1.6
Top cover ass'y
2
10
Side panel ass'y
2
1.7
Motor bracket ass'y
2
11
Compressor's pressure plate
8
1.8
Connection plate welded parts of condenser
2
12
Welded parts of base plate
1
1.9
The middle connection beam
1
13
Suction pipe ass'y I
1
1.10
Welded parts of sealing plate
2
14
Triangle reinforcing plate
8
1.11
Upper-middle column
2
15
Shell-tube evaporator
1
1.12
Condenser parts II
2
16
Compressor(fixed)
2
1.13
Condenser parts I
2
17
Front-left panel ass'y
1
1.14
Condenser card board
4
18
Gas-liquid separator
2
1.15
Rubber pad
16
19
Middle column
2
1.16
Fixed plate of side plate
2
20
Front-right panel ass'y
1
1.17
Fixed parts of side plate
4
21
Suction pipe ass'y II
1
1.18
Base welded parts of water pan
1
22
Piping support board
1
1.19
Water pan
1
23
Clamp II, pipe
3
2
Rear panel ass'y
2
24
Piping support I
2
3
Y shape 3-way valve ass'y of distributor
1
25
Four-way valve ass'y of unit B
1
4
Y shape 3-way valve ass'y of flute pipe
1
25.1
Four-way valve
1
5
Four-way valve ass'y of unit A
1
26
EXV ass'y of unit A
1
5.1
Four-way valve set
1
26.1
Electronic expansion valve
1

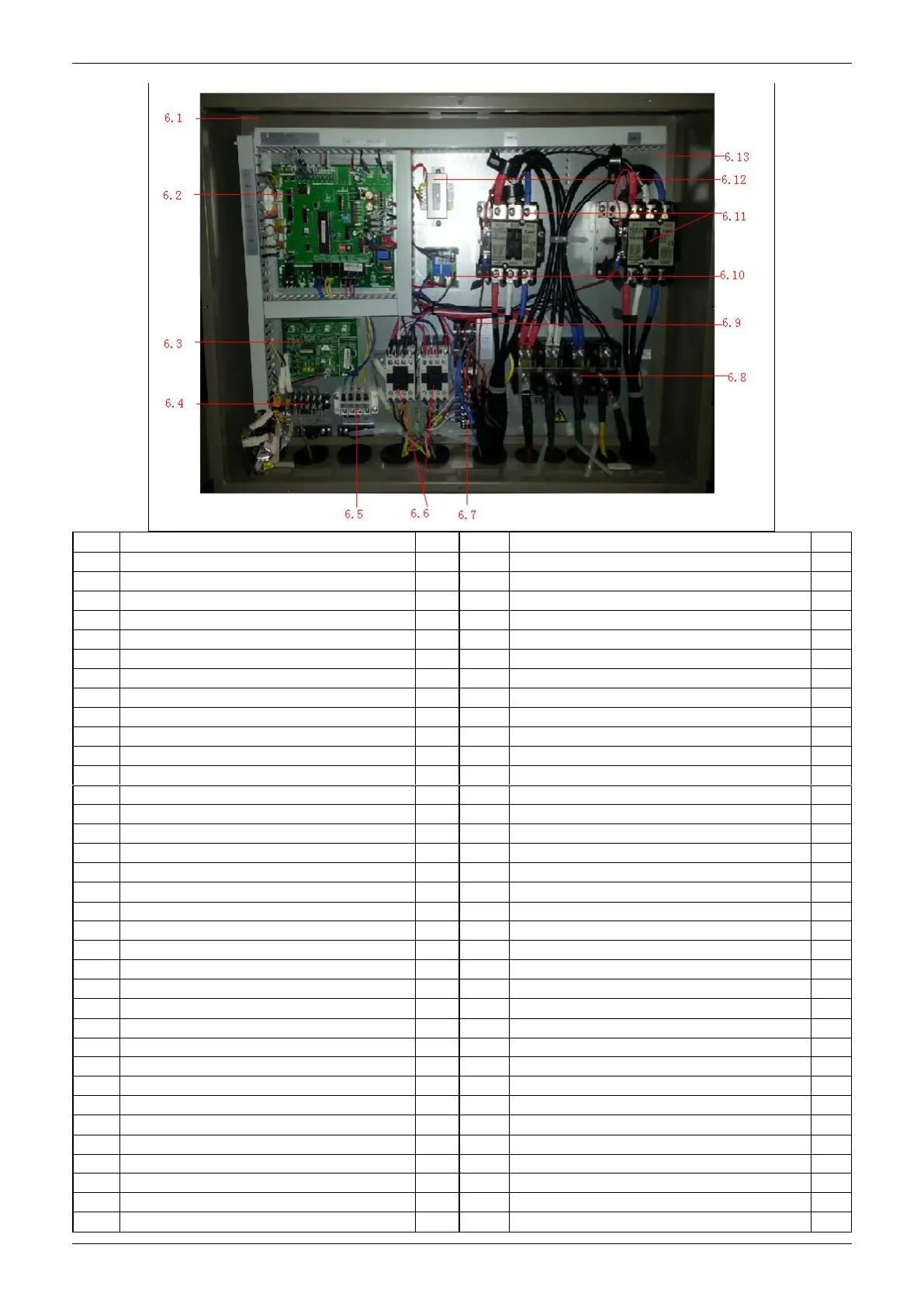

6
Outdoor unit electrical box ass'y
1
27
EXV ass'y of unit B
1
6.1
Electrical box welded parts
1
27.1
Electronic expansion valve
1
6.2
Outdoor unit main board ass'y
1
28
Connection pipe ass'y of unit A
1
6.3
Outdoor current detection board ass'y
1
29
Pipe temp. sensor ass'y
2
6.4
Wire joint, 5p
1
30
Pipe temp. sensor ass'y
1
6.5
Terminal block
1
31
Pipe temp. sensor ass'y
1
6.6
AC contactor
2
32
Wired controller
1
6.7
Wire joint,6p
1
33
Pipe temp. sensor ass'y
2
6.8
Wire joint
1
34
Temperature controller of discharge pipe side
1
6.9
Terminal block
3
35
Discharge temperature controller
1
