Midea Aqua Tempo Super MC-SP35M-RN1L

Aqua Tempo Super Series air cooled scroll chiller unit (50Hz) MCAC-ATSM-201606
69
No.
Part Name
Qty
No.
Part Name
Qty
1
Welded parts of base plate
1
22.3
Base welded parts of water pan
1
2
Parts of water pump
1
22.4
Seal plate
1
2.1
Water pump
1
22.5
Water pan
1
2.2
Baseplate of water pump
1
22.6
Support ass'y of motor
1
3
Support board of plate heat exchanger
1
22.7
Top cover ass'y
1
4
Output water pipe ass'y III
1
22.8
Outlet net cover
1
5
Parts of plate heat exchanger
1
22.9
Parts of condenser
1
5.1
Plate heat exchanger
1
22.10
Asynchronous motor
1
5.2
Outlet water pipe ass'y II
1
23
Fixed board ass'y of plate heat exchanger
1
5.3
Electric heating strip
1
24
Bottom panel III ass'y
1
6
Inlet water pipe parts II
1
25
Condenser's guard plate II ass'y
1
6.1
Inlet water pipe ass'y
1
26
The door of electrical control box
1
6.2
Expansion vessel
1
27

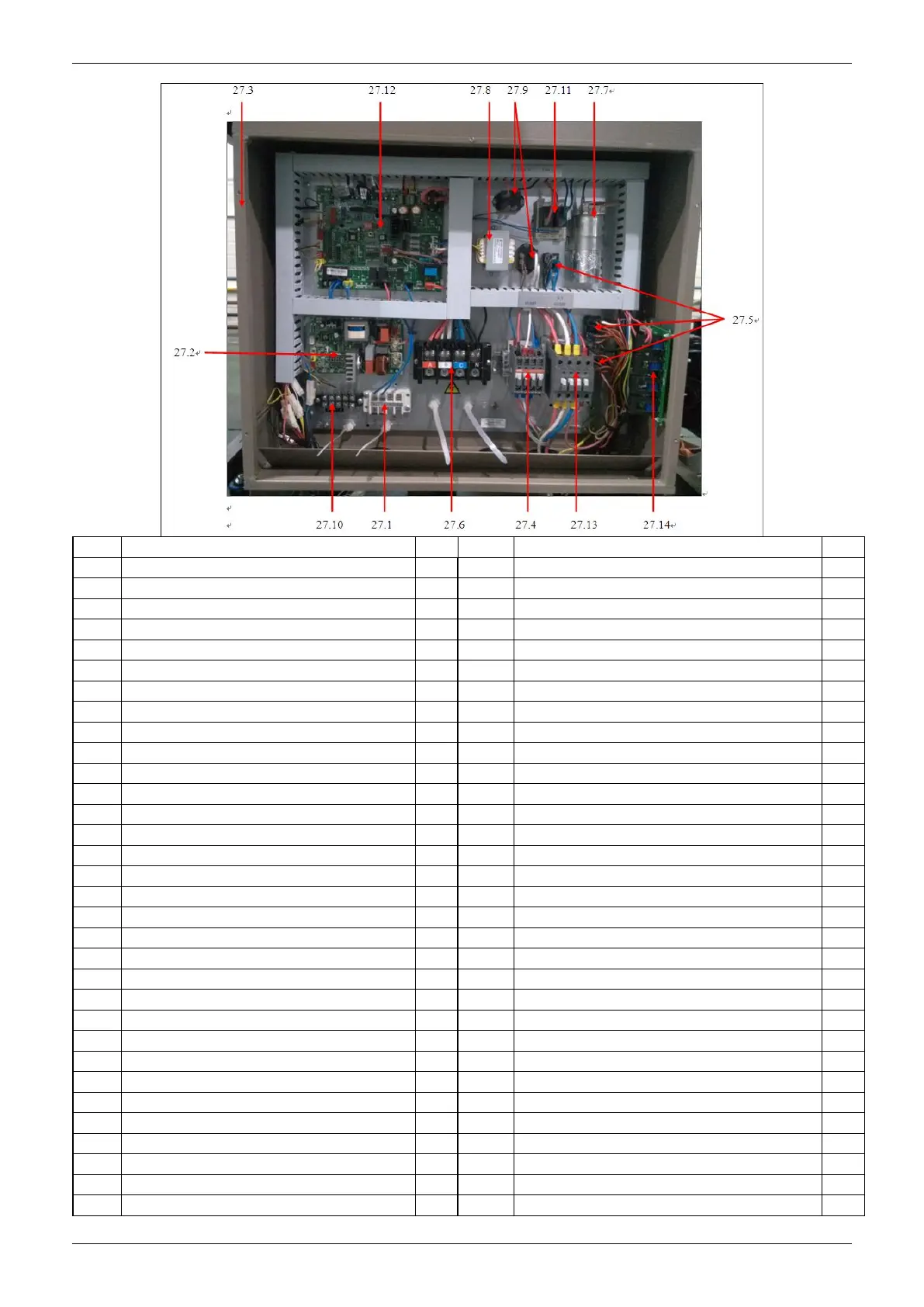

Outdoor electric control box ass'y
1
7
Inlet water pipe parts I
1
27.1
Wire joint,4p
1
7.1
Y shape filter
1
27.2
Outdoor main control board ass'y
1
8
Under panel ass'y I
1
27.3
Welded parts of electrical box
1
9
Differential pressure switch parts
1
27.4
Contactor
1
9.1
Differential pressure switch
1
27.5
Terminal block
3
9.2
Valve electric heater
1
27.6
Wire joint
1
10
Piping fixed plate
1
27.7
Capacitor
1
11
Indoor temp. sensor ass'y
1
27.8
Transformer
1
12
Pipe temp. sensor ass'y
4
27.9
Relay
2
13
Pipe temp. sensor ass'y
1
27.10
Wire joint, 5p
1
14
Condenser's guard plate I ass'y
1
27.11
E-heater control board ass'y
1
15
Gas-liquid separator
1
27.12
Outdoor main board ass'y
1
16
Suction pipe ass'y
1
27.13
AC contactor
1
17
Compressor
1
27.14
Outdoor current detection board ass'y
1
18
Column
4
28
Under rain-proof board ass'y
1
19
Bottom panel II ass'y
2
29
Outlet water pipe parts I
1
20
Condenser's guard plate III ass'y
2
29.1
Safety valve
1
21
Four-way valve ass'y
1
29.2
Exhaust valve
1
21.1
Meter connector
2
30
Fixed plate II of plate heat exchanger
1
