Midea Aqua Tempo Super MC-SS35/RN1L

Aqua Tempo Super Series air cooled scroll chiller unit (50Hz) MCAC-ATSM-201606
71
No.
Part Name
Qty
No.
Part Name
Qty
1
Pressure sensor
1
26.1
Axial propeller
1
2
Pipe temp. sensor ass'y
4
26.2
Upper frame welded parts
1
3
Support board of plate heat exchanger
1
26.3
Base welded parts of water pan
1
4
Pipe temp. sensor ass'y
1
26.4
Seal plate
1
5
Plate heat exchanger parts
1
26.5
Water pan
1
5.1
Plate heat exchanger
1
26.6
Support ass'y of motor
1
5.2
Electric heating strip
1
26.7
Top cover ass'y
1
5.3
Outlet water pipe ass'y II
1
26.8
Outlet net cover
1
5.4
Connection water pipe ass'y
1
26.9
Condenser parts
1
6
Fixed board ass'y of plate heat exchanger
1
26.10
Snap-gauge of condenser
3
7
Input pipe ass'y of evaporator
1
26.11
Asynchronous motor
1
7.1
Electronic expansion valve
1
27
The door of electrical control box
1
8
Support borad of piping
1
28
Bottom panel III ass'y
1
9
Differential pressure switch parts
1
29
Under rain-proof board ass'y
1
9.1
Differential pressure switch
1
30

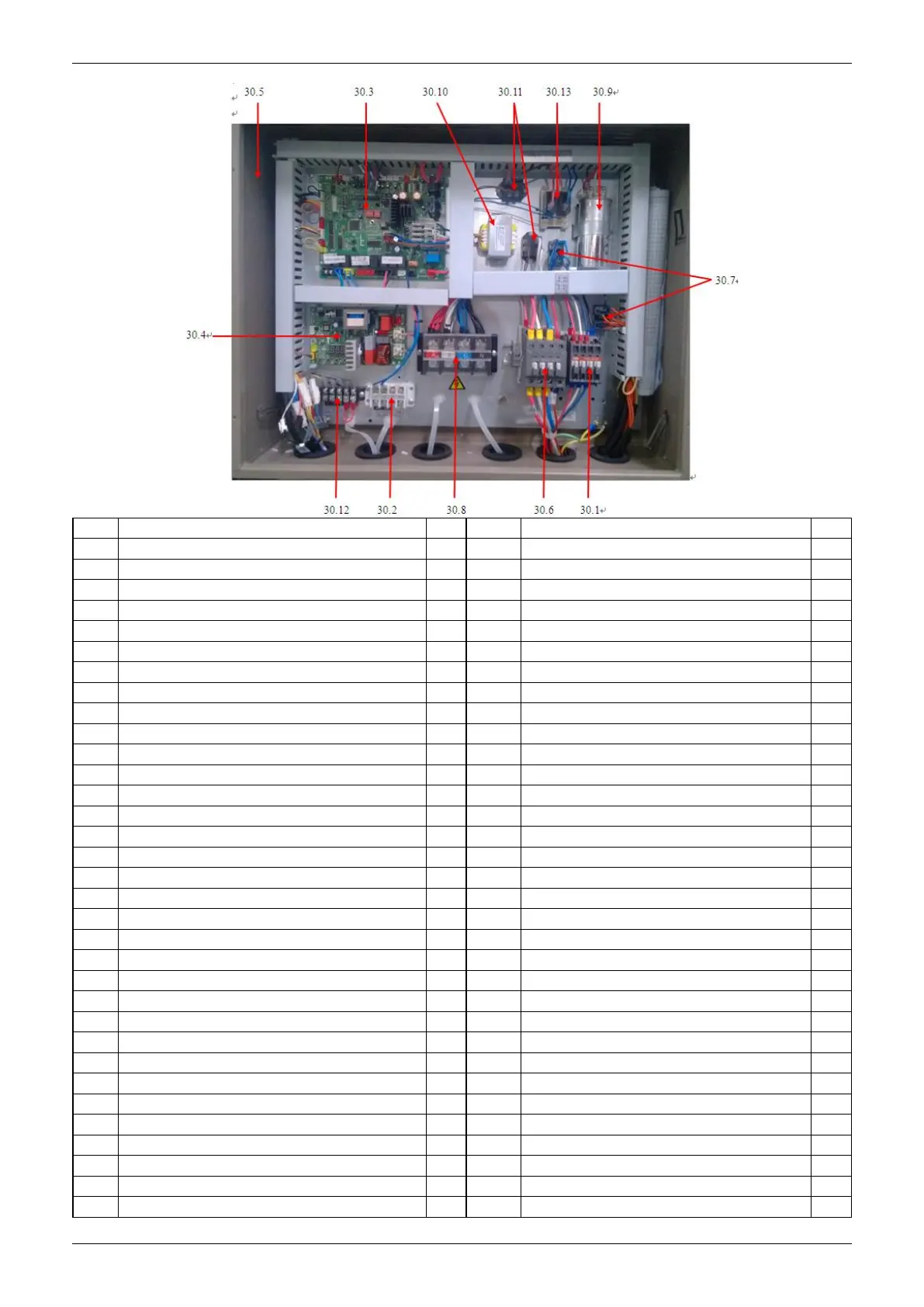

Outdoor unit electrical control box ass'y
1
9.2
Valve electric heater
1
30.1
Contactor
1
10
Output water pipe ass'y III
1
30.2
Wire joint,4p
1
11
Welded parts of base plate
1
30.3
Outdoor unit main control board ass'y
1
12
Four-way valve ass'y
1
30.4
Outdoor main control board ass'y
1
12.2
Meter connector
2
30.5
Welded parts of electrical box
1
12.3
Pressure switch
1
30.6
AC contactor
1
12.4
Pressure switch
1
30.7
Terminal block
2
13
Holder ring
5
30.8
Wire joint
1
14
Inlet water pipe parts I
1
30.9
Capacitor
1
15
Compressor
1
30.10
Transformer
1
16
Gas-liquid separator
1
30.11
Relay
2
17
Under panel ass'y I
1
30.12
Wire joint, 5p
1
18
Outlet water pipe parts I
1
30.13
E-heater control board ass'y
1
18.1
Safety valve
1
31
Fixed board of liquid accumulator
1
18.2
Exhaust valve
1
32
Fixed board II of plate heat exchanger
1
19
Bottom panel II ass'y
2
33
Inlet water pipe parts II
1
20
Column
4
33.1
Expansion vessel
1
21
Liquid accumulator ass'y
1
33.2
Inlet water pipe ass'y
1
