Service Manual_2018-V2.0
14

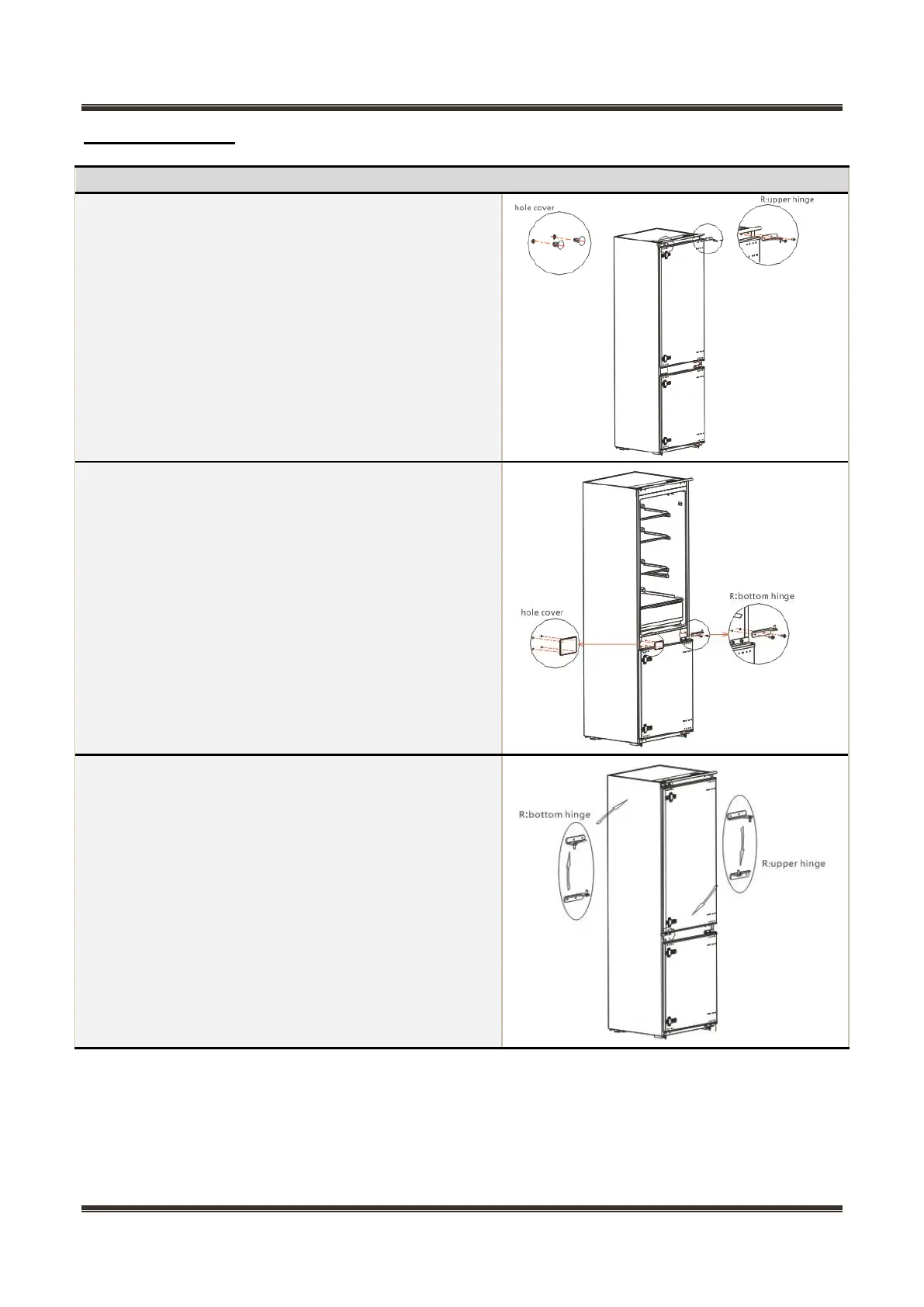

4.4 Door reversal
Door reversal
1.
ć
Power
off
the
refrigerator
,
and
remove
all
objects
from the do
or tray
s.
2.
Remove
the
upper
hinge
and
hole
caps
of
refrigerator do
or
.
3
.
Remove
the
refrigerator
door
,
the
bottom
hinge
and
the hole cov
er
.
4
.
Exchan
ge the
R:bottom
hinge a
nd
R:upper
hin
ge
,then
assemble th
em and a
ssemble top h
ole caps .
13
15
Table of Contents
Default Chapter
3
Table of Contents
3
1 Significant Update Notes(None)
5
2 Safety Warning Code
6
Warning for Operation Safety
6
Safety Instruction for Refrigerant
8
3 Transport
9
Handling
9
4 Installation and Commissioning
10
Door Disassembly and Assembly
10
Installation Location
10
Leveling of the Refrigerator
13
Door Reversal
14
Installation of Handle(None)
16
Installation of Door Lock(None)
16
5 Product Configuration and Dimension
17
Main Parts and Their Names
17
External Dimension
18
Location of S/N
19
6 Product Specification
20
Electrical Parameters
20
Cooling Temperature Setting Range
20
Defrosting Parts
20
Circuit Diagram
21
Main Control Board Structure Diagram
22
7 Refrigerating Piping System and Circulating Route of Cooling Air
23
Refrigerating Piping System
23
Special Soldering Position(None)
23
Circulating Route of Cooling Air
24
8 Dismantling of Parts
25
Parts on the Door
25
Parts Inside the Refrigerator
25
Light System
26
Air Duct Components Refrigerating Chamber and Fan Motor
27
Air Duct Components in Freezing Chamber and Fan Motor
27
Evaporator and Defrost System
28
Compressor Case
29
Display Control Board
35
Main Control Board
35
9 Emperature Sensing System
36
Position of Sensors
36
Replacement of Sensors
36
Sensor Replacement
37
Sensor Resistance (R/T)
38
10 Function and Operation
39
Operation Panel
39
Display
39
Setting of the Gear
39
Lock and Unlock Settings
40
Memory Function
40
Control of Standby Function
40
Open Door Alarm (None)
40
Function Selection (None)
40
Fault Code and Solutions
40
Defrosting Function
41
Test Mode
41
11 Compressor
43
Compressor on and off Control Specifications
43
12 Troubleshooting Method
44
No Cooling(Air Cooling-Electronic)
44
No Working of Compressor
45
Inside Frosting, no Defrosting
46
Inside Frosting, no Defrosting-Maintenance Guidelines
46
Light Is Not on
47
Fan Failure
48
Defective Defrost Circuit
48
Noise
49
Air Duct Not Operated(Electronically) (None)
49
13 Figures and Details of Repair Parts
50
