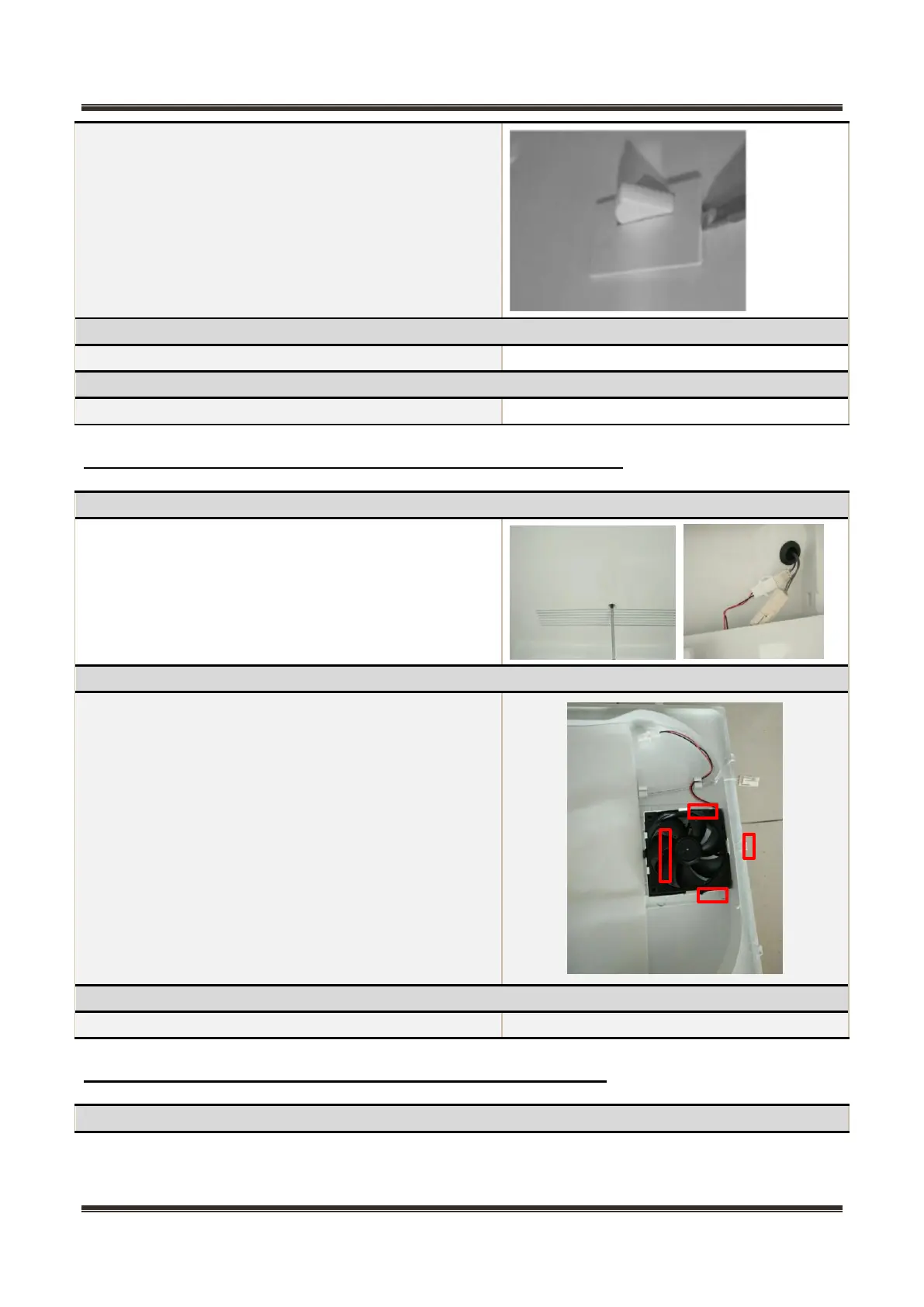

There is a light switch on the side wall of the refrigerating
chamber.
1）Loosen the hook with small normal screwdriver and
pull out the switch until the wire connector reveals.
8.4Air duct components refrigerating chamber and fan motor
Air duct components in freezing chamber
All accessories in the freezing chamber should be
dismantled before removing the air duct components.
1）Remove 1 screws on the cover plate of the
refrigerating air duct using a cross screwdriver.
2）Pull out the connector terminal of the fan motor.
1） The fan is fastened with clasps and can be removed
directly;
2）Change the fan, the reverse operation for assembly
8.5Air duct components in freezing chamber and fan motor
Air duct components in freezing chamber
