9. emperature sensing system

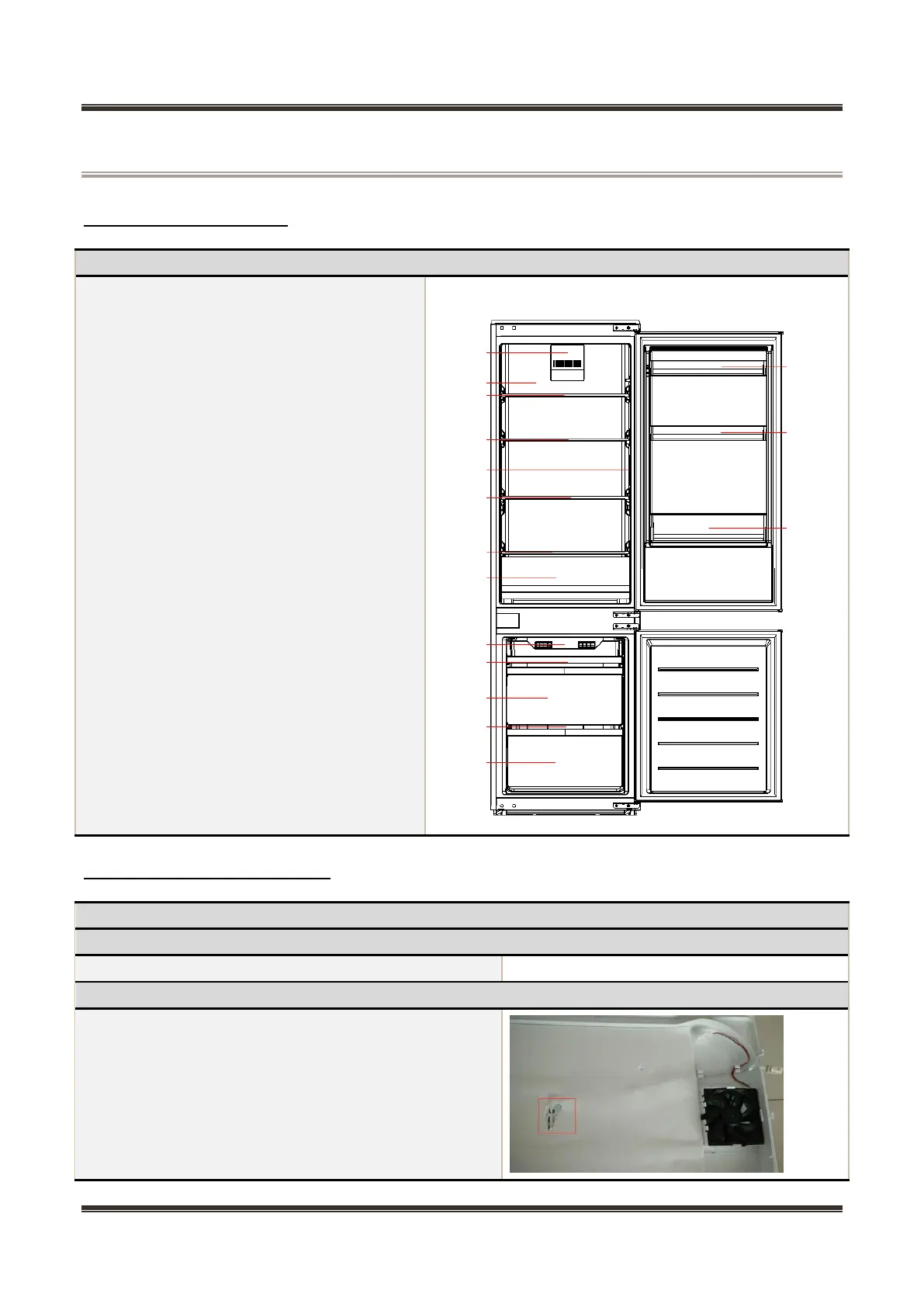

9.1 Position of sensors
9.2 Replacement of sensors
Position of sensors
Have 3 sensors
① Sensor in freezing chamber
② Sensor in refrigerating chamber
③ Sensor in Variable temperature chamber
④ Ambient temperature or humidity sensor
⑤ Ice machine sensor
⑥ Defrost sensor in refrigerating chamber
⑦ Defrost sensor freezing chamber
Sensor
Sensor in freezing chamber
Sensor in freezing chamber
None
Sensor in refrigerating chamber
1） Before remove the sensor, the refrigerating duct
assembly should be removed Remove the air duct
assembly from the refrigerating.
2） Remove the sensor.
②
④
⑦
