Installation

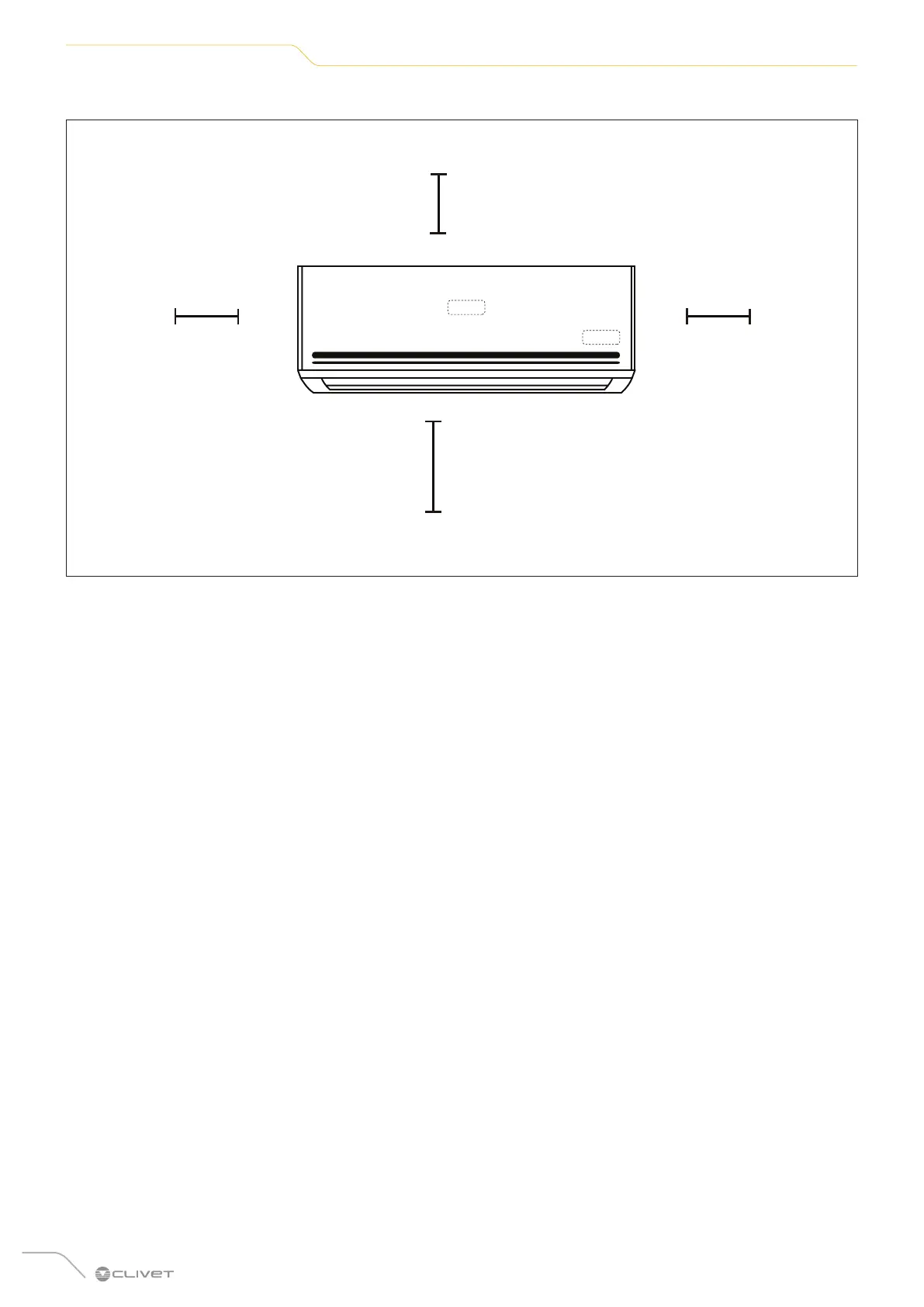

Please refer to the following diagram for wall and ceiling distances:
A
B
Min 15 cm
Min 2.3 m
Min 12 cm Min 12 cm
Fig. 4
A Position of the display CRISTALLO and remote control
signal receiver.
B Position of the display ESSENTIAL 2 and remote control
signal receiver.
NOTE: The receiver must be left free of obstacles that could
aect reception from the remote control.
