Midea COMPACT Series User Manual

Service Manual_2018-V1.0
24
Standby condenser
Standby condenser
None

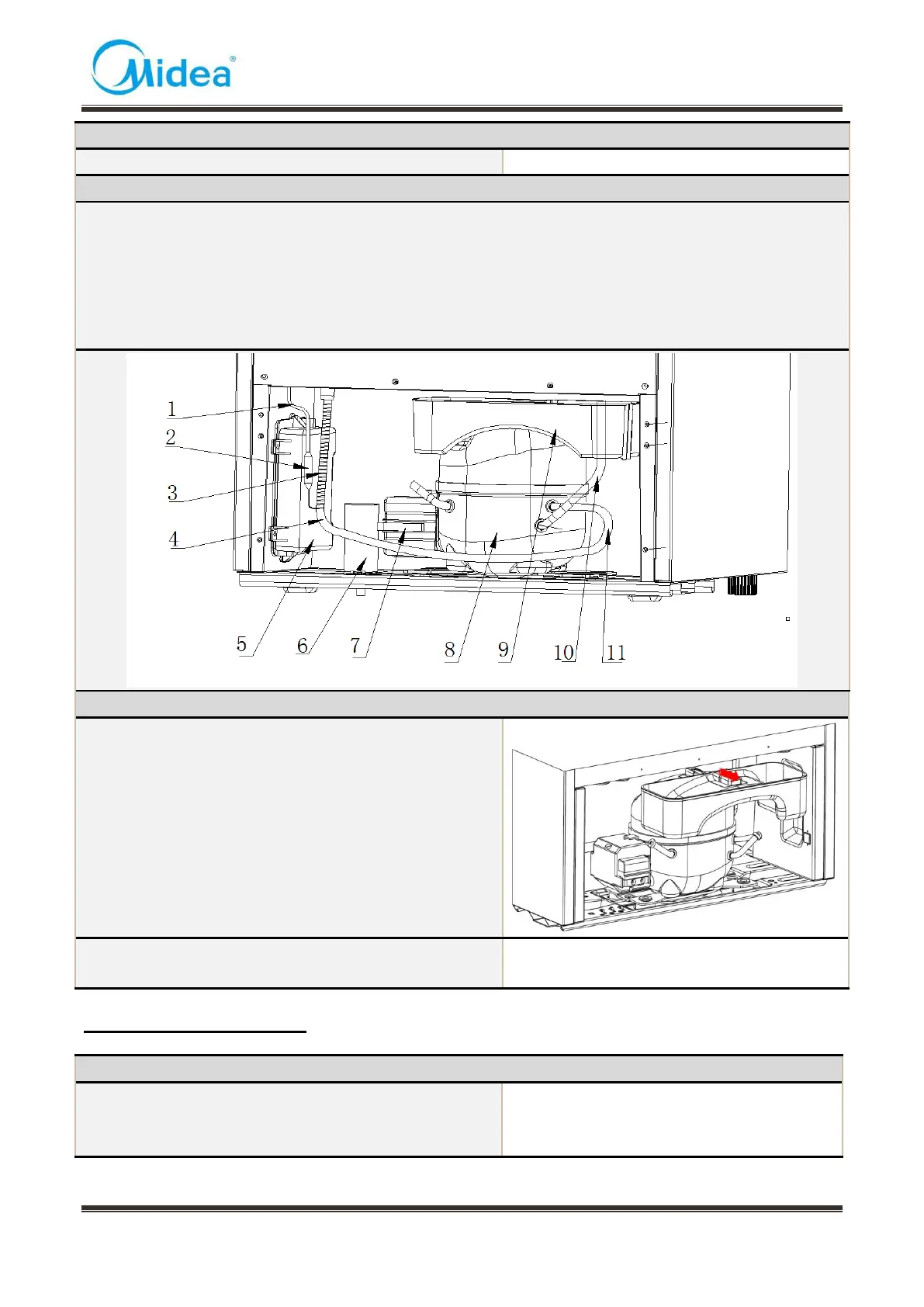

Piping system in the compressor case
❶ Condenser-1(in)
❷Drier
❸Capillary Tube
❹Transition pipe
❺Main control board box
❻Capacitor
❼Compressor cover
❽Compressor
❾drain tray
❿Condenser-2(out)
⓫Suction conection Pipe
Disassembly and assembly of the drain tray
1）Pull out the drain tray
2）Replace the drain tray, the reverse process can
complete installation.
/
8.8 Display control board
Display control board
❶ Glass door
❷ Display control board
❸ Sponge of display control board
❹ Assembly cover of display control board
❺ Screw

Midea COMPACT Series Specifications

General

Brand	Midea
Model	COMPACT Series
Category	Refrigerator
Language	English
