Midea CTBU-09HWFN1-M

124

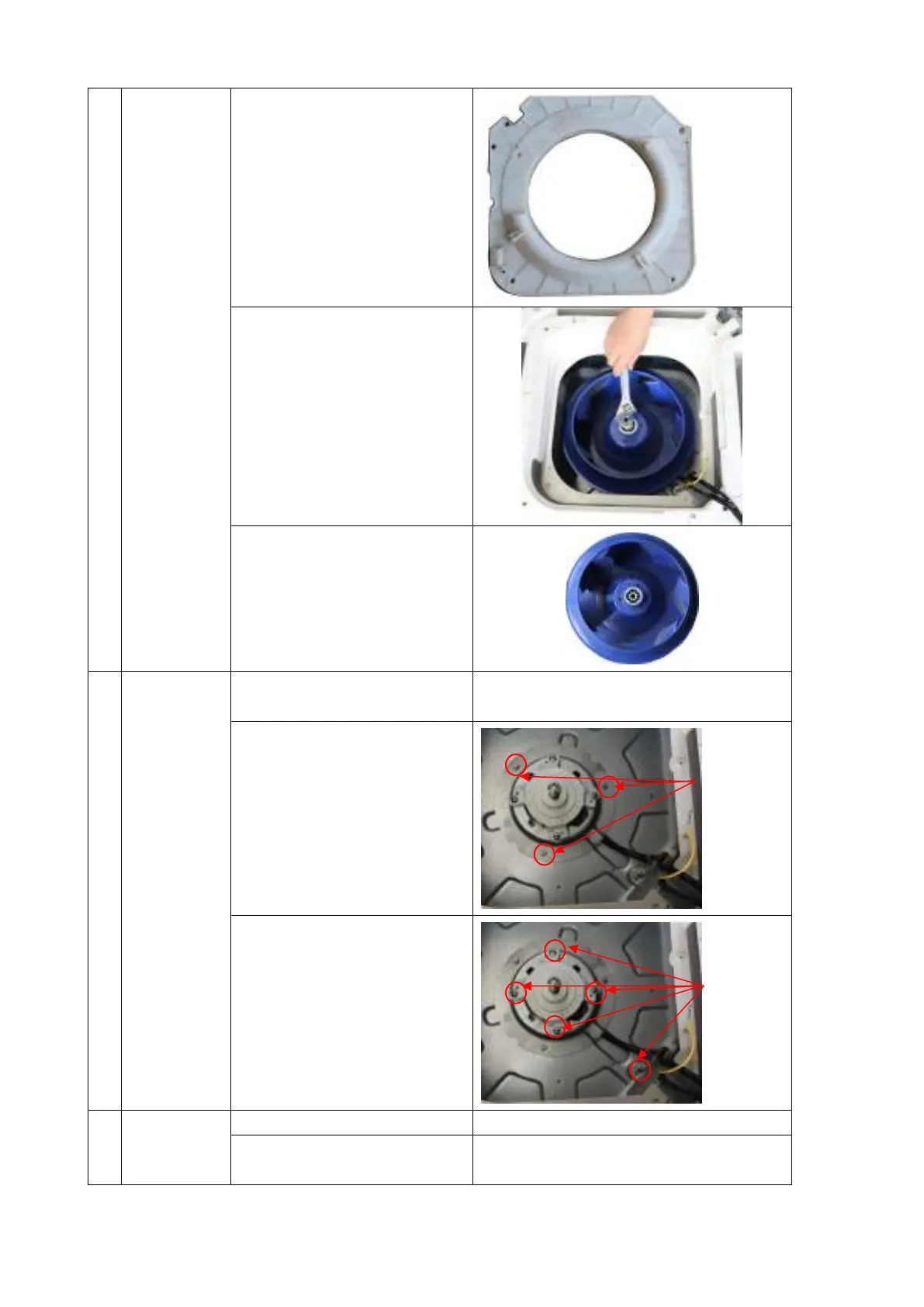

3) Remove the fixing nut to
disassemble the fan
wheel
4) Pull out the fan wheel
8
Remove the
fan motor
1) Repeat the operation of
No.6
2) Remove the fixing board
of fan motor wire
3) Remove the 5 screws to
disassemble the fan
motor
9
Remove the
water
collecting
6) Remove the panel
Repeat the operation of No.2
7) Remove the electronic
control box
Repeat the operation of No.6
3 nuts
5 screws
