Midea CTBU-09HWFN1-M

125
assembly

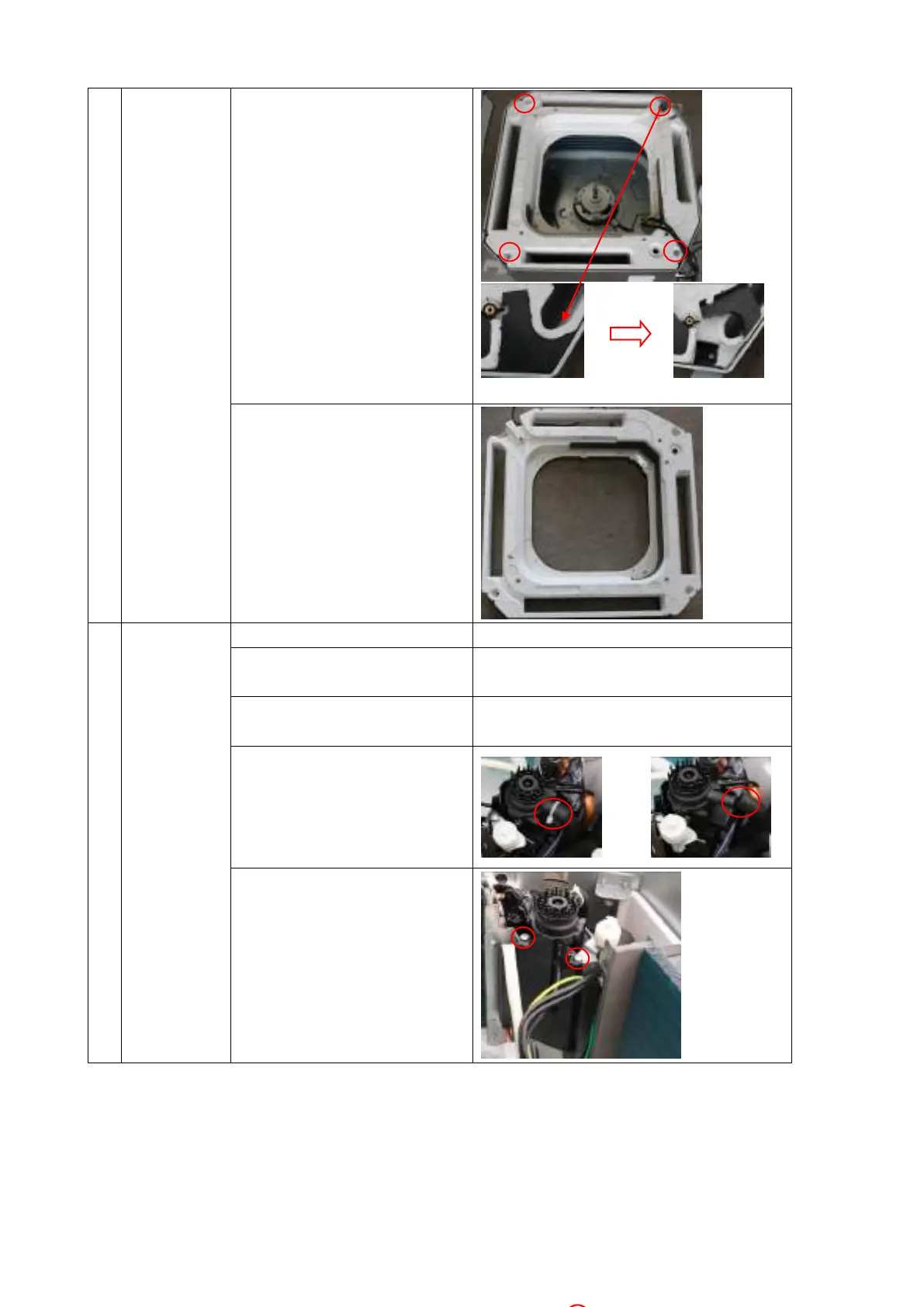

8) Screw off the 4 screws
inside 4 holes (1 is under
a protection cover) to
remove the water
collecting assembly.
9) Take out the water
collecting assembly
10
Remove the
draining
pump
1) Remove the panel
Repeat the operation of No.2
2) Remove the electronic
control box
Repeat the operation of No.6
3) Remove the water
collecting assembly
Repeat the operation of No.9
4) Disconnect the drain
pipe.
5) Release 2 screws to
remove the pump
supporter. Be careful of
the connection wires.
