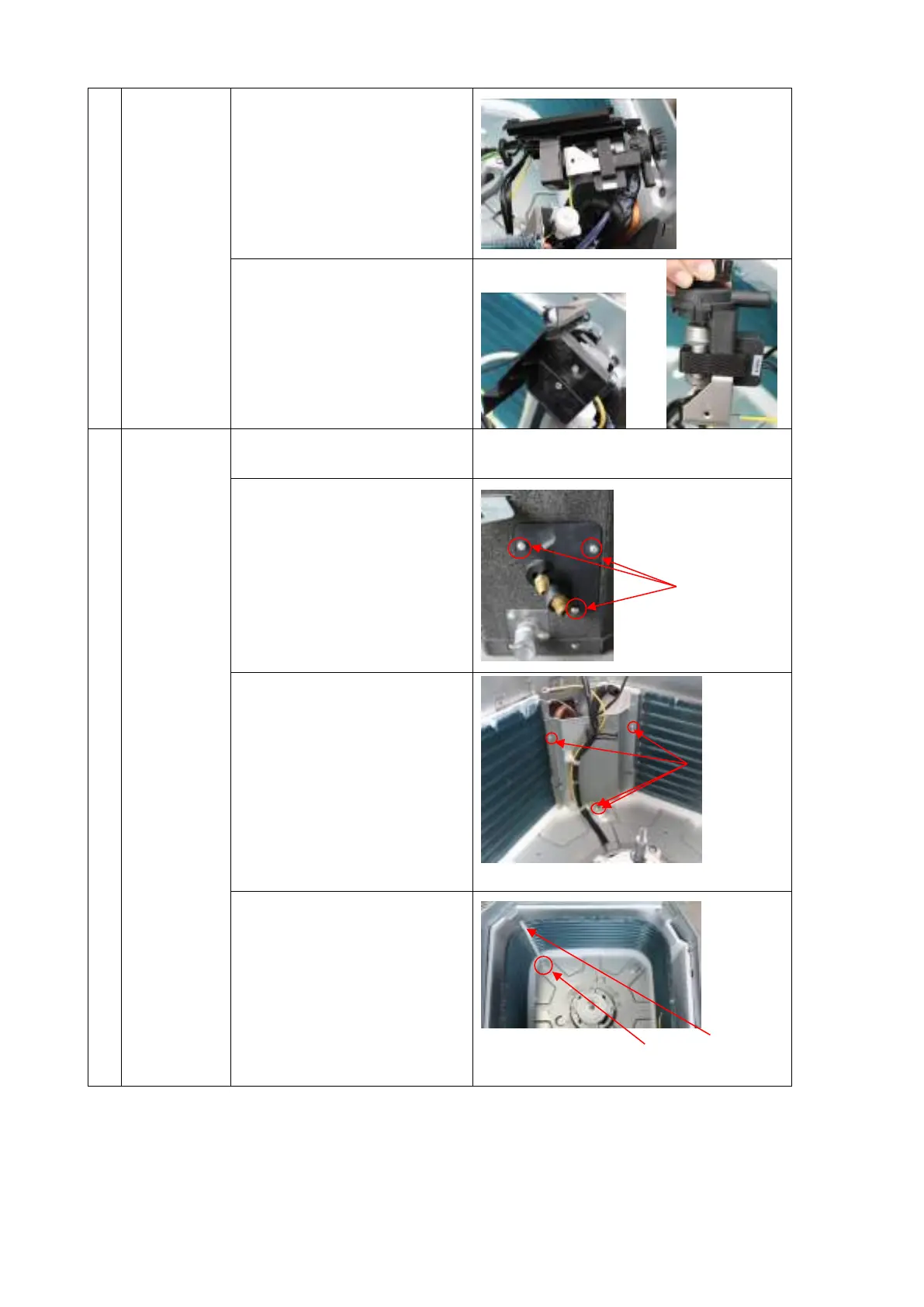

6) There are 2 screws under
the supporter to fixing
the pump. Release them
to take the pump out of
the supporter.
11
Remove the
evaporator
1) Remove the water
collecting assembly
Repeat the operation of No.9
2) Remove the seal board of
evaporator
3) Remove the evaporator
fixing board
4) Remove the evaporator
fixing clamps to
disassemble the
evaporator.
3 screws
Fixing clamps
1 screw
4 screws
