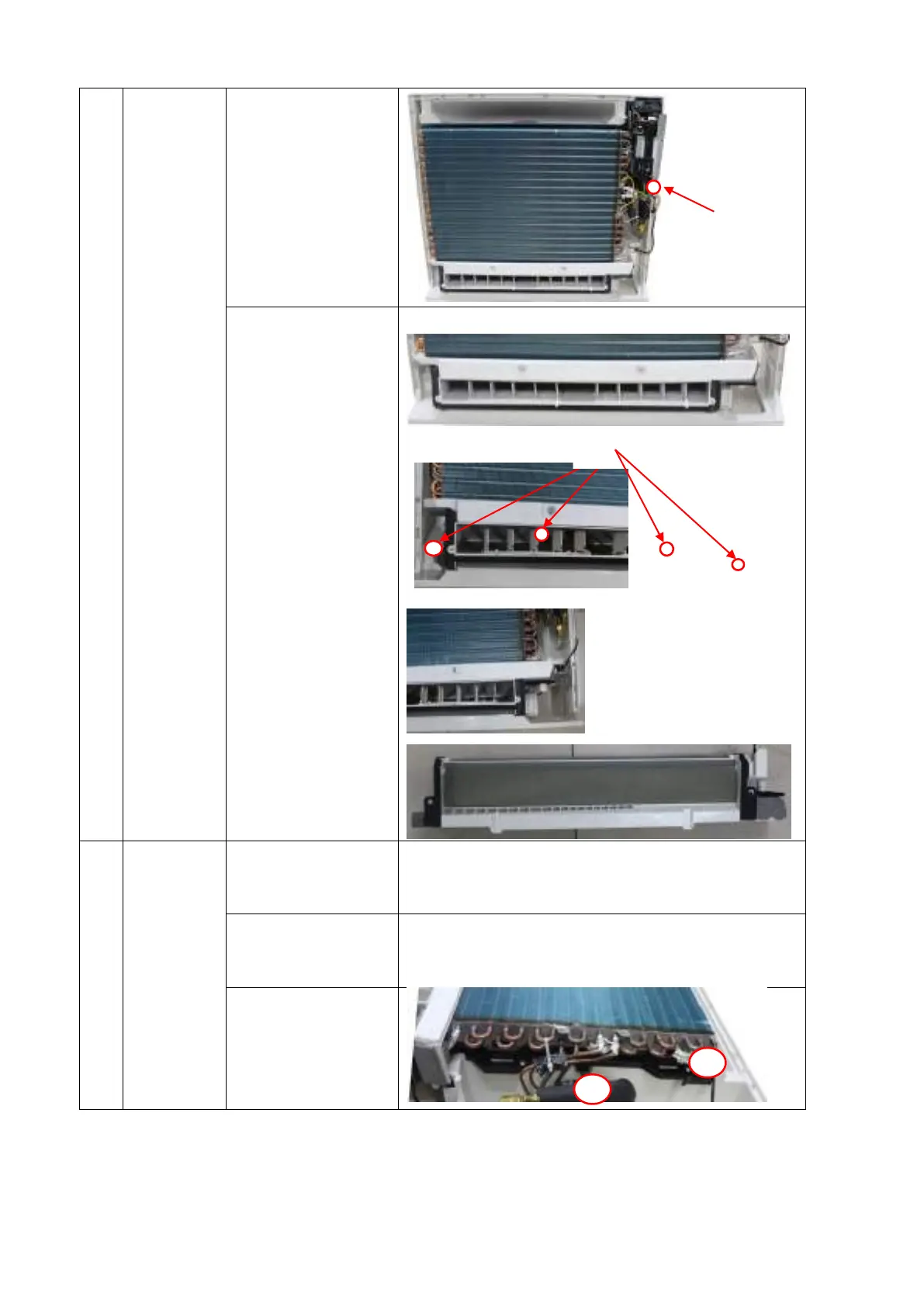

2) Disconnect
louver motor
wire
3) Remove 4 fixing
screws to
disassemble the
water collector
11
Remove
the
evaporator
assembly
1) Remove the
electronic
control box
Repeat the operation of No.2 to remove the electronic control
box
2) Remove the air
outlet grille
assembly
Repeat the operation of No.7 to remove the air outlet grille
assembly
3) Remove the
evaporator
sensor and
release the pipe
strap.
4 screws
Louver motor connector
