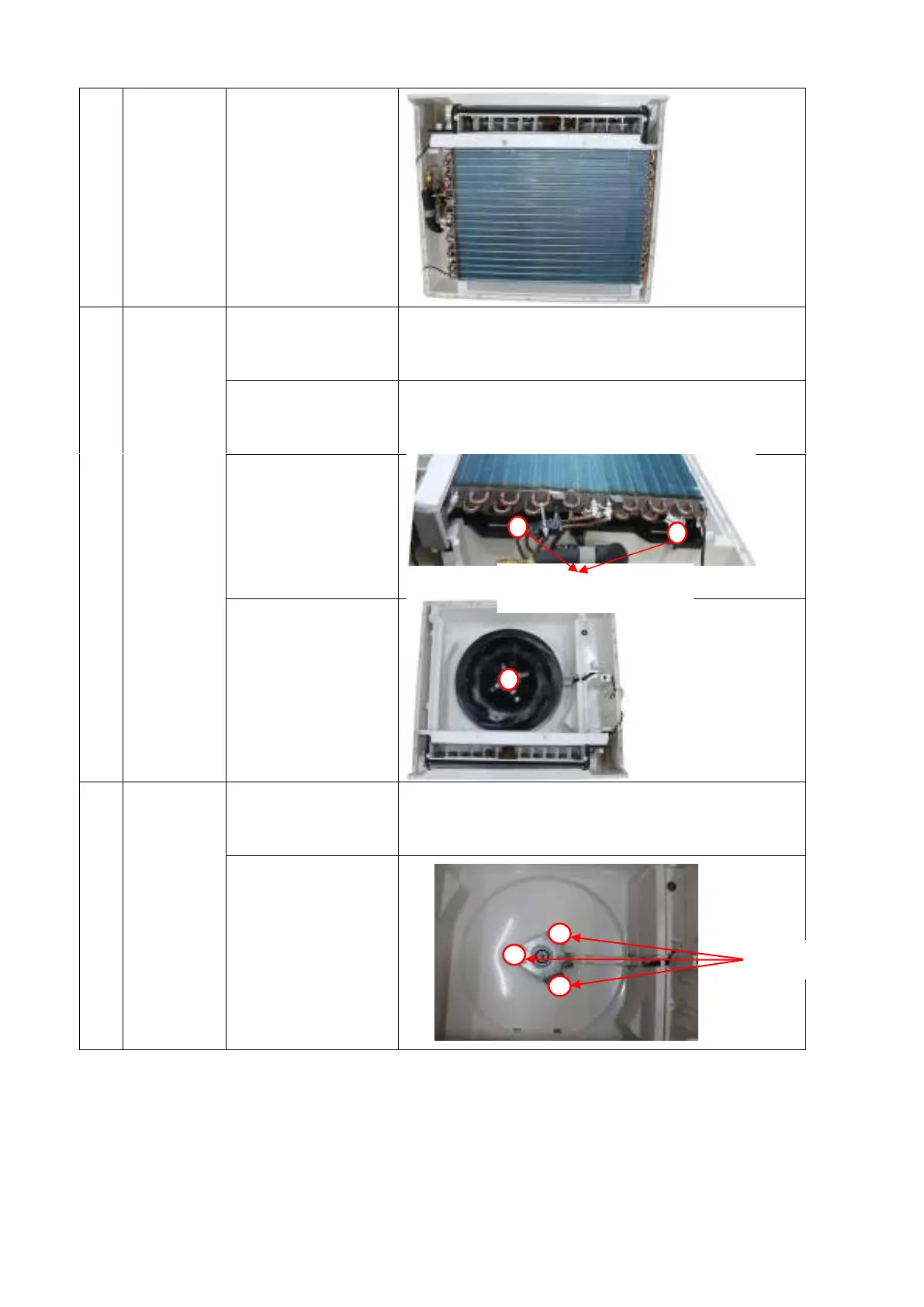

4) Remove the
evaporator
assembly
12
Remove
the
centrifugal
fan
1) Remove the
electronic
control box
Repeat the operation of No.2 to remove the electronic control
box
2) Remove the air
outlet grille
assembly
Repeat the operation of No.7 to remove the air outlet grille
assembly
3) Remove four
fixing screws to
remove the
ventilation
assembly
4) Remove the hex
nut fixing the
fan to remove
the fan.
13
Remove
the fan
motor
1) Remove the
centrifugal fan
Repeat the operation of No.12 to remove the centrifugal fan
2) Remove the fan
motor after
unfastening
three fixing
screws.
3 screws
Each side has two screws
